Resin Flooring System Resuflor™ Topseal Clear - Water-based Epoxy Resin Floor System

Verified by manufacturer 12 days ago

Sherwin-Williams

Resuflor Topseal Clear is a water-based epoxy resin floor system for application as an industrial or commercial floor coating.

Jump to:
+44 (0)1204 521771 Website

Application

Suitable for use as an industrial or commercial floor coating:

  • Automotive manufacturing;
  • Aerospace manufacturing;
  • Plant rooms;
  • Data centres;
  • Warehouses;
  • Light commercial premises;
  • Light to medium traffic indoor use.

Description

Resuflor Topseal Clear is a water-based epoxy resin floor system for application as an industrial or commercial floor coating. A semi-gloss finish will be provided which is suitable for commercial and industrial areas where a hard wearing floor coating is required.

Applied by squeegee and roller the system is low odour producing a tough seamless, hygienic floor finish.

Features and benefits:

  • Semi-gloss finish.
  • Smooth finish.
  • Enhances the look of raw concrete.
  • Hygienic and easily cleaned.
  • Good UV stability.
  • Low odour.
  • Low emission.
  • Silica free.
  • Can be applied to concrete without a damp proof membrane (will not resist water pressure).
  • Can be applied to seven day-old concrete.
  • Can be applied to masonry, asphalt, and wood.
  • Hard wearing.

General information

Color

Clear

Finish

Smooth

Semi-gloss

Material

Epoxy resin

Water-based

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Manufacturer guidance

System thickness.

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/110 Resin flooring

M12/10 Resin flooring

Specification data - Resin flooring systems

Classification data

System performance

Durability
Water and vapour resistance
Environmental conditions in service
Compliance with performance requirements
Flatness and surface regularity

Manufacturer guidance

Insert detail or links to relevant performance clause(s) as required.

Substrate

-

Testing

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Preparation

Guidance for specification option:

Consult manufacturer for details and insert requirements.

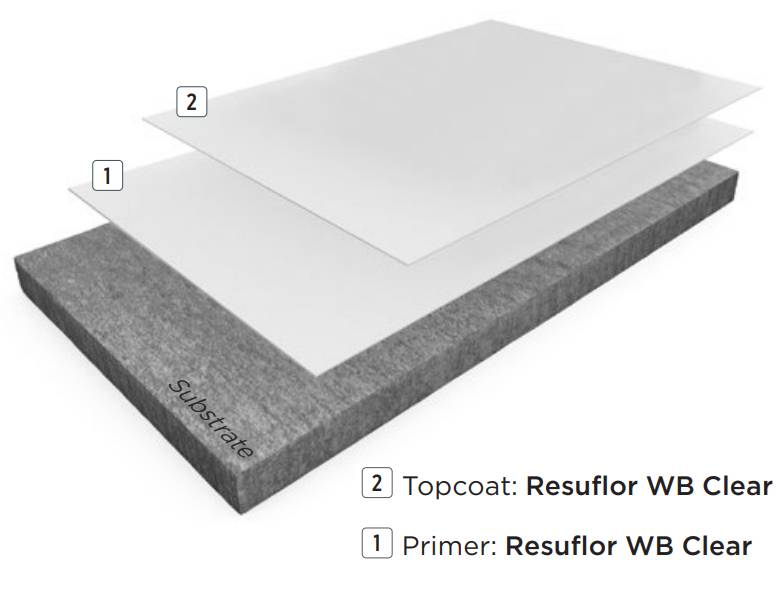

Primer

Resuflor WB Clear.

Guidance for specification option:

To be applied by roller or squeegee.

Surface treatment

Resuflor WB Clear top coat.

Guidance for specification option:

To be applied by roller or squeegee.

Movement joints

-

Type

Guidance for specification option:

Insert requirements or omit.

Attachment

Guidance for specification option:

Insert requirements or omit.

Resin skirtings and upstands

Guidance for specification option:

Insert requirements or omit.

System accessories

Guidance for specification option:

Insert requirements or omit.

System completion

Guidance for specification option:

Insert details or links to relevant clause(s) as required.

Colour

Clear.

System thickness

0.1 mm.

Curing time

At 20°C:
Foot traffic: 18 hours;
Full traffic: 48 hours;
Full chemical cure: 7 days.

Guidance for specification option:

Consult manufacturer's literature for further details including typical times at 10°C and 30°C.

Manufacturer guidance

Typical times.

Hardness

To BS EN ISO 1522:2006 Pendulum hardness, 83.

Abrasion resistance

To ASTM D4060-14, 101.5 mg loss per 1000 cycles

TensileStrength

To BS EN ISO 527-2:2012, 26 MPa.

Bond strength

To BS EN 13892-8:2002, >3 N/mm² (substrate failure).

Impact resistance

To BS EN 1504-2:2004, Class II.

Temperature resistance

Temperatures up to 60°C.

Chemical resistance

Good.

Manufacturer guidance

Three days' exposure:

  • No change: Hyjet; Skydrol; kerosene; toluene; xylene; benzene; ethanol; methyl ethyl ketone (MEK); acetone; ethyl acetate.

Reaction to fire

To EN 13501-1:2018, Bfl – s1.

Slip resistance

To BS 7976-2:2002+A1:2013, Dry: 74; Wet: 18.

Category of use

FeRFA category 1.

Sustainability data

Material

Epoxy resin
Water-based

Literature

Resin Flooring System Resuflor™ Topseal Clear System Guide

Resin Flooring System Resuflor™ Topseal Clear System Guide
