Resin Flooring System FasTop™ DP2 - Heavy-Duty Polyurethane Cement Screed
Verified by manufacturer 2 days ago
FasTop DP1 is a heavy-duty polyurethane cement screed designed to create a uniform, slip resistant, matt finish whilst providing excellent thermal shock, abrasion, and chemical resistance.
Application
Resin floor system suitable for use in:

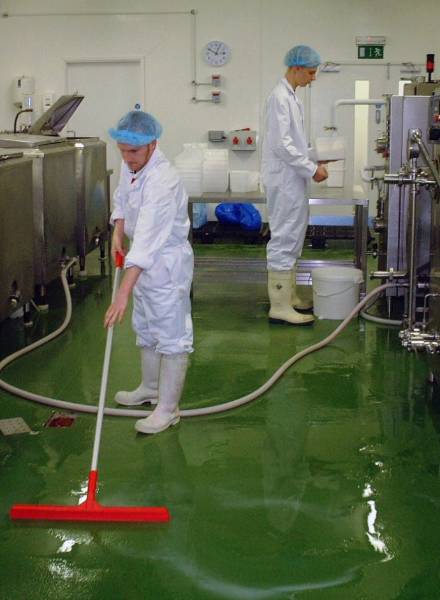

- Food and beverage manufacturing;
- Breweries and distilleries;
- Dairies;
- Pharmaceutical processing;
- Chemical plant processing;
- Abattoirs and meat processing facilities;
- Heavy duty plant and traffic areas.
Description
FasTop DP1 is a heavy-duty polyurethane cement screed designed to create a uniform, slip resistant, matt finish whilst providing excellent thermal shock, abrasion, and chemical resistance.
FasTop Multi DP base is laid between 5–7 mm and broadcast with bauxite to give a uniform, slip resistant finish in areas that are wet and/ or exposed to greases and oils.
Features and benefits:
- High chemical resistance.
- High slip resistance.
- Resistance to hot water.
- Very hard wearing.
- Non dusting.
- HACCP Certified and Campden BRI tested for food safety compliance.
- Can be applied to seven day-old concrete.
- Very low emissions.
- Impermeable and non-porous.
- Antimicrobial finish resists bacterial growth.
- Environmental Product Declarations (EPDs) available.
General information
Color | Beige Black Blue Green Grey |
Finish | Matt Anti-microbial Anti-slip Textured |
Material | Polyurethane Guidance for specification option: Polyurethane resin. Sand Quartz |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke Guidance for specification option: 7–9 mm system thickness. |
Uniclass | |
CAWS | M12/10 Resin flooring M12/110 Resin flooring |
Specification data - Resin flooring systems
Classification data | |
System performance | Guidance for specification option: Insert detail or links to relevant performance clause(s) as required. |
Substrate | |
Testing | Guidance for specification option: Consult manufacturer for details and insert requirements. |
Preparation | Guidance for specification option: Consult manufacturer for details and insert requirements. |

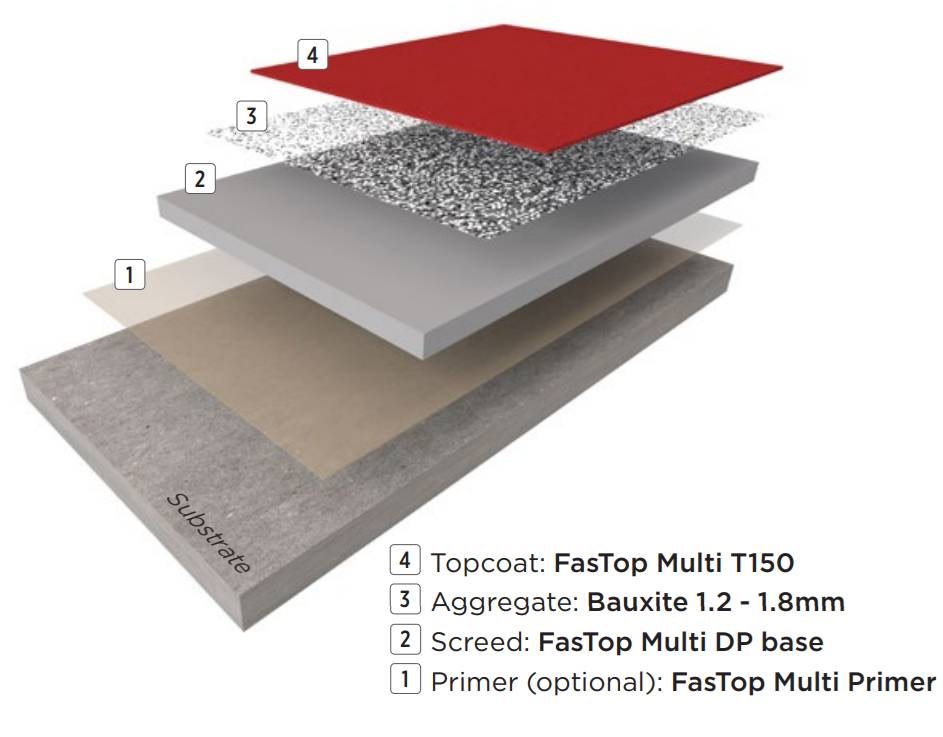

Primer | FasTop Multi Primer. Guidance for specification option: Roller applied. Not required. |
Resin flooring | FasTop Multi DP base. |
Surface treatment | Bauxite (1.2–1.8 mm) aggregate. FasTop Multi T150 top coat. Guidance for specification option: Quartz sand to be broadcast (scattered) Top coat to be applied by squeegee or roller. |
Movement joints | |
Type | Guidance for specification option: Insert requirements or omit. |
Attachment | Guidance for specification option: Insert requirements or omit. |
Resin skirtings and upstands | Guidance for specification option: Insert requirements or omit. |
System accessories | Guidance for specification option: Insert requirements or omit. |
Execution | Guidance for specification option: Insert details or links to relevant clause(s) as required. |
System completion | Guidance for specification option: Insert details or links to relevant clause(s) as required. |
Colour | Light Grey. Mid Grey. Dark Grey. Black. Buff. Marigold. Orange. Red. Green. Blue. |
System thickness | Guidance for specification option: Insert requirements; approx. 6–8 mm. |
Curing time | At 20°C: Foot traffic: 12–16 hours; Full traffic: 48 hours; Full chemical cure: 5–7 days. Guidance for specification option: Consult manufacturer's literature for further details including typical times at 10°C and 30°C. Manufacturer guidanceTypical times. |
Hardness | To BS ISO 7619-1:2010 hardness at 24 hours Shore D, 80. |
Abrasion resistance | To BS EN 13892-4:2002, 225.0 mg (CS17). |
CompressiveStrength | To BS EN 13892-2:2002, 34.6 MPa. |
TensileStrength | To BS EN 13892-2:2002, 5.8 N/mm². |
Flexural strength | To BS 6319-7:1985, 2.4 N/mm². |
Bond strength | To BS EN 13892-8:2002, >3 N/mm² (substrate failure). |
Impact resistance | To BS EN 1504-2:2004, Class II. |
Temperature resistance | Temperatures up to 90°C at 7 mm. |
Chemical resistance | Excellent. |
Reaction to fire | To BS EN 13501-1:2018, Bfl - s1. |
Category of use | FerFA category 7. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Polyurethane Guidance for specification option: Polyurethane resin. Sand Quartz |
Literature
Resin Flooring FasTop DP2 Screed System Guide
