Resin Flooring System Resuflor™ Topfloor SL - Self-Smoothing Epoxy Resin Floor

Verified by manufacturer 12 days ago

Sherwin-Williams

Resuflor Topfloor SL is a self-levelling epoxy resin flooring system with a smooth, high-gloss finish.

Jump to:
+44 (0)1204 521771 Website

Application

Suitable for production areas and clean rooms where a smooth, durable and hygienic floor is required:

  • Pharmaceutical manufacturing.
  • Laboratories.
  • Battery manufacturing.
  • Automotive manufacturing.
  • Aerospace manufacturing.
  • Heavy manufacturing.
  • Hangars.
  • Data centres.
  • Packaging areas.
  • Distribution centres.
  • Healthcare.
  • Studios.
  • Museums.

Description

Resuflor Topfloor SL is a self-levelling epoxy resin flooring system with a smooth, high-gloss finish. The system provides an aesthetically pleasing reflective appearance with resistance against chemicals and abrasion. It is suitable for production areas and clean rooms where a smooth, durable and hygienic floor is required.

Features and benefits:

  • Seamless.
  • Gloss finish.
  • Reflective finish.
  • Smooth finish.
  • Silica free.
  • Very hard wearing.
  • Easy to clean.
  • Hygienic.
  • Good chemical resistance.
  • Impermeable.

General information

Color

Black

Blue

Green

Grey

Red

Show more

Finish

Gloss

Smooth

Material

Resin

Epoxy resin

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Guidance for specification option:

2–3 mm.

Manufacturer guidance

System thickness.

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/110 Resin flooring

M12/10 Resin flooring

Specification data - Resin flooring systems

Classification data

System performance

Durability
Water and vapour resistance
Environmental conditions in service
Compliance with performance requirements
Flatness and surface regularity

Manufacturer guidance

Insert detail or links to relevant performance clause(s) as required.

Substrate

-

Testing

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Preparation

Guidance for specification option:

Consult manufacturer for details and insert requirements.

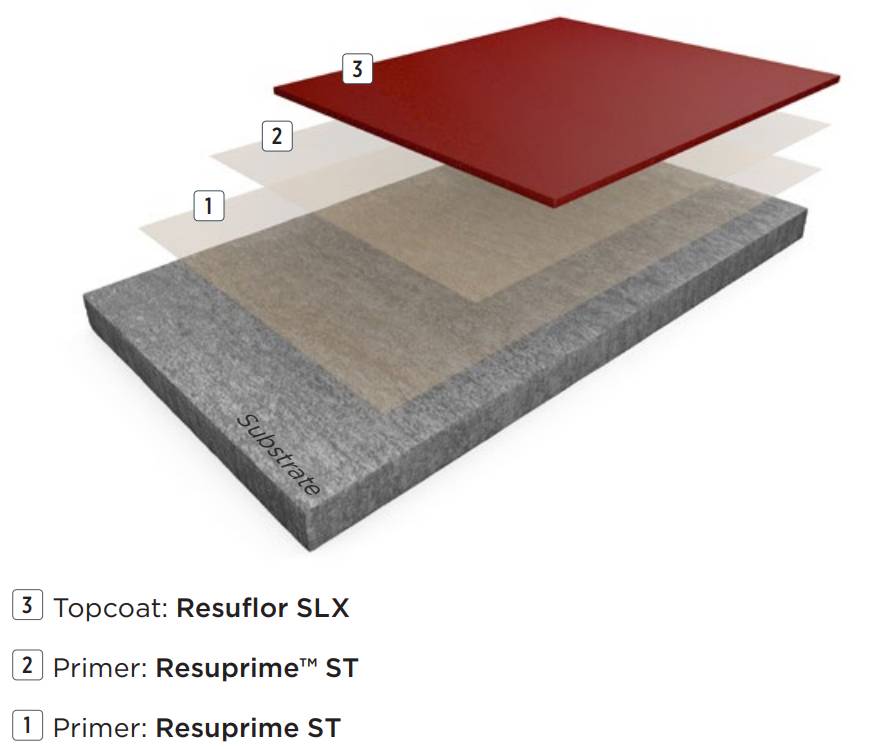

Primer

Primer: Resuprime™ ST.

Guidance for specification option:

Two layers; to be applied by roller.

Surface treatment

Resuflor SLX top coat.

Guidance for specification option:

To be applied by trowel or spiked roller, nominal 2–3 mm.

Movement joints

-

Type

Guidance for specification option:

Insert requirements or omit.

Attachment

Guidance for specification option:

Insert requirements or omit.

Resin skirtings and upstands

Guidance for specification option:

Insert requirements or omit.

System accessories

Guidance for specification option:

Insert requirements or omit.

System completion

Guidance for specification option:

Insert details or links to relevant clause(s) as required.

Colour

White.
Stirling.
Flint.
Black.
Buff.
Savannah.
Marigold.
Kingfisher.
Poppy Red.
Salsa.
Forest Green.
Tuscan Glade.

System thickness

Guidance for specification option:

Insert requirements, 2–3 mm.

Curing time

At 20°C:
Foot traffic: 12–16 hours;
Full traffic: 24–36 hours;
Full chemical cure: up to 7 days.

Guidance for specification option:

Consult manufacturer's literature for further details including typical times at 10°C and 30°C.

Manufacturer guidance

Typical times.

Abrasion resistance

To BS EN 13892-4:2002, AR 0.5.

CompressiveStrength

To BS EN ISO 604:2003, 46 MPa.

TensileStrength

To BS EN ISO 527-2, 15 N/mm².

Flexural strength

To BS EN 13892-2:2002, 45 MPa.

Bond strength

To BS EN 13892-8:2002, >3 N/mm² (substrate failure).

Impact resistance

To BS EN 1504-2:2004, Class II.

Temperature resistance

Tolerant of temperatures up to 60°C.

Chemical resistance

Good.

Manufacturer guidance

Three days' exposure:

  • No change: diesel fuel; Toluene; xylene; methanol; methyl ethyl ketone (MEK); acetone; potassium hydroxide 20%; sodium hydroxide 20%; Skydrol; Hyjet.

Reaction to fire

To BS EN 13501-1:2018, Bfl – s1.

Category of use

FeRFA category 5.

Sustainability data

Material

Resin
Epoxy resin

Literature

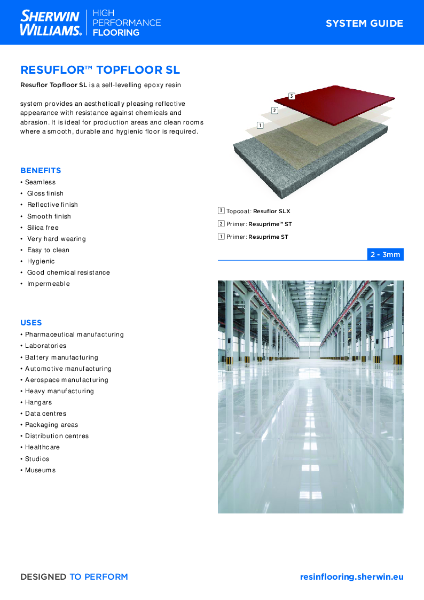

Resin Flooring System Resuflor™ Topcoat SL System Guide

Resin Flooring System Resuflor™ Topcoat SL System Guide
