Resin Flooring System Resuflor™ Topcoat - Smooth Epoxy Resin Floor System
Verified by manufacturer 12 days ago
Resuflor Topcoat is a smooth epoxy resin coating system applied by squeegee and roller. The system provides a durable, seamless and hygienic floor finish.
Application
Suitable for use as an industrial or commercial floor coating:
- Automotive manufacturing;
- Aerospace manufacturing;
- Heavy manufacturing;
- Plant rooms;
- Data centres;
- Pharmaceutical;
- Engineering workshops;
- Warehouses;
- Distribution centres;
- Nuclear facilities;
- Commercial premises;
- Excellent for demarcation and walkways.
Description
Resuflor Topcoat is a smooth epoxy resin coating system applied by squeegee and roller. The system provides a durable, seamless and hygienic floor finish.
A gloss finish with low odour, suitable for many industrial and commercial applications where a hard wearing floor coating is required.
Features and benefits:
- Gloss finish.
- Smooth finish.
- Good chemical resistance.
- Resistant to Hyjet and Skydrol.
- Hygienic.
- Ease of cleaning.
- Good colour stability.
- Low odour.
- Easy application.
- Seamless.
- Ease of decontamination.
- Available in a wide range of colours.
General information
Color | White Grey Black Beige Yellow |
Finish | Gloss |
Material | Epoxy resin |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke Manufacturer guidanceSystem thickness. |
Uniclass | |
CAWS | M12/110 Resin flooring M12/10 Resin flooring |
Specification data - Resin flooring systems
Classification data | |
System performance | Durability Water and vapour resistance Environmental conditions in service Compliance with performance requirements Flatness and surface regularity Manufacturer guidanceInsert detail or links to relevant performance clause(s) as required. |
Substrate | |
Testing | Guidance for specification option: Consult manufacturer for details and insert requirements. |
Preparation | Guidance for specification option: Consult manufacturer for details and insert requirements. |

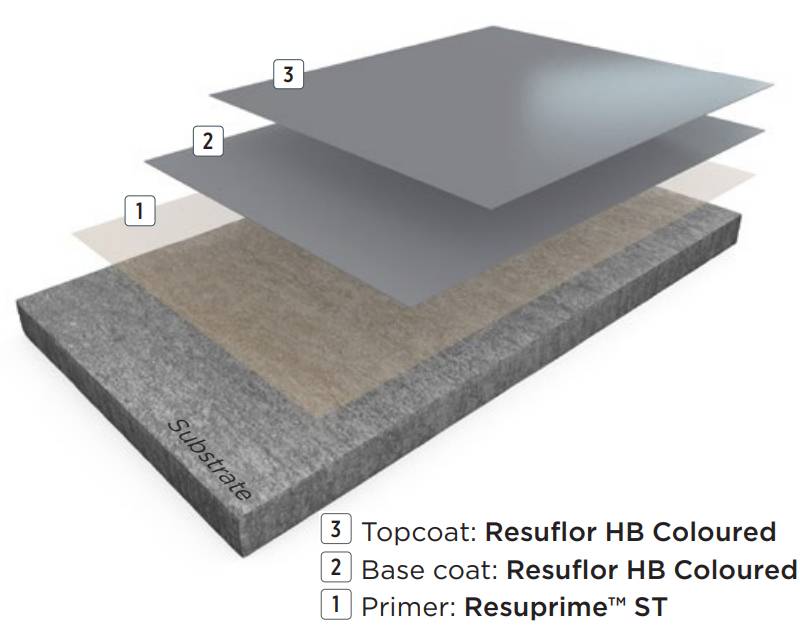

Primer | Resuprime™ ST. Guidance for specification option: To be applied by roller or squeegee. |
Surface treatment | Base coat: Resuflor HB Coloured. Top coat: Resuflor HB Coloured. Guidance for specification option: To be applied by roller or squeegee. |
Movement joints | |
Type | Guidance for specification option: Insert requirements or omit. |
Attachment | Guidance for specification option: Insert requirements or omit. |
Resin skirtings and upstands | Guidance for specification option: Insert requirements or omit. |
System accessories | Guidance for specification option: Insert requirements or omit. |
System completion | Guidance for specification option: Insert details or links to relevant clause(s) as required. |
Colour | White. Stirling. Flint. Black. Buff. Savannah. Marigold. Kingfisher. Poppy Red. Salsa. Forest Green. Tuscan Glade. |
System thickness | 0.5 mm. Guidance for specification option: Approx. |
Curing time | At 20°C: Foot traffic: 12–16 hours; Full traffic: 24–36 hours; Full chemical cure: up to 7 days. Guidance for specification option: Consult manufacturer's literature for further details including typical times at 10°C and 30°C. Manufacturer guidanceTypical times. |
Abrasion resistance | To ASTM D4060-14, 140.1 mg loss per 1000 cycles |
CompressiveStrength | To BS EN ISO 604:2003, 9.6 MPa. |
TensileStrength | To BS EN ISO 527-2:2012, 3.6 MPa. |
Bond strength | To BS EN 13892-8:2002, >3 N/mm² (substrate failure). |
Impact resistance | To BS EN 1504-2:2004, Class II. |
Temperature resistance | Temperatures up to 60°C. |
Chemical resistance | Good. Manufacturer guidanceThree days' exposure:
|
Reaction to fire | To EN 13501-1:2018, Bfl – s1. |
Slip resistance | To BS 7976-2:2002+A1:2013, Dry: 76; Wet: 26. |
Category of use | FeRFA category 3. |
Sustainability data
Material | Epoxy resin |
Literature

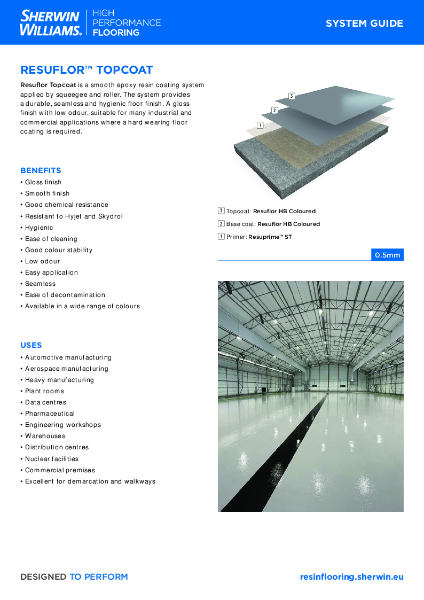

Resin Flooring System Resuflor™ Topcoat System Guide
