Resin Flooring System Resuflor™ Topcoat SR3 - Textured Epoxy Resin Floor System

Verified by manufacturer 12 days ago

Sherwin-Williams

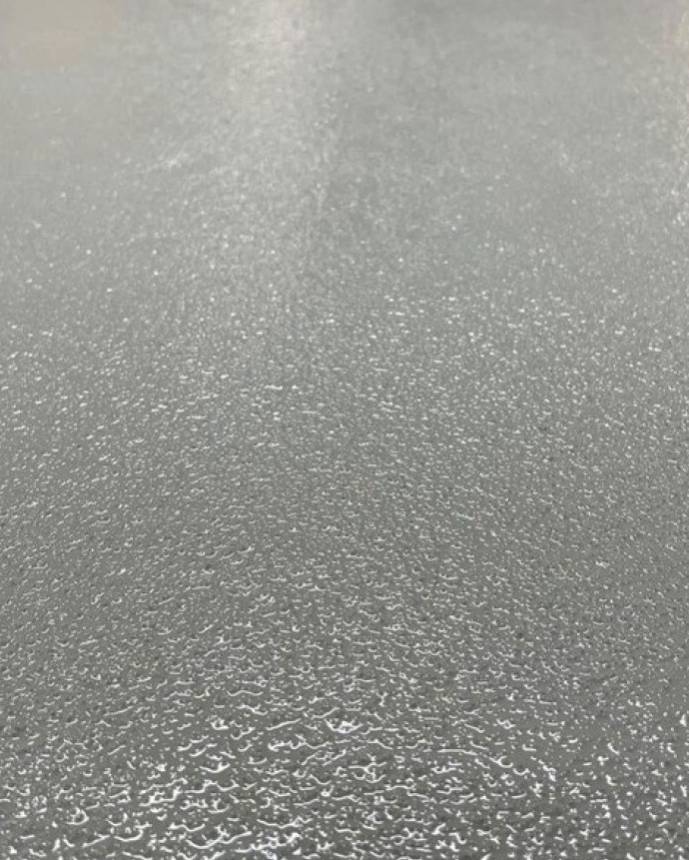

Resuflor Topcoat SR3 is a medium/ heavy textured, slip-resistant epoxy resin coating system well suited to areas that are wet and/ or greasy regularly.

Jump to:
+44 (0)1204 521771 Website

Application

Suitable for use as an industrial or commercial floor coating:

  • Automotive workshops;
  • Automotive manufacturing;
  • Plant rooms;
  • Engineering workshops;
  • Aerospace manufacturing;
  • Hangars;
  • Paper manufacturing;
  • Heavy manufacturing;
  • Warehouses;
  • Distribution centres;
  • Nuclear facilities;
  • Commercial premises;
  • Excellent for demarcation and walkways.

Description

Resuflor Topcoat SR3 is a medium/ heavy textured, slip-resistant epoxy resin coating system well suited to areas that are wet and/ or greasy regularly. Applied by squeegee and roller the system produces a durable, seamless and hygienic floor finish.

A gloss finish with low odour suitable for many industrial and commercial applications where a hard wearing floor coating is required.

Features and benefits:

  • Gloss finish.
  • Excellent slip resistance.
  • Good chemical resistance.
  • Hygienic.
  • Good colour stability.
  • Low odour.
  • Easy application.
  • Seamless.
  • Ease of decontamination.
  • Available in a wide range of colours.

General information

Color

White

Grey

Black

Beige

Yellow

Show more

Finish

Gloss

Anti-slip

Textured

Material

Epoxy resin

Quartz

Sand

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Manufacturer guidance

System thickness.

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/110 Resin flooring

M12/10 Resin flooring

Specification data - Resin flooring systems

Classification data

System performance

Durability
Water and vapour resistance
Environmental conditions in service
Compliance with performance requirements
Flatness and surface regularity
Slip resistance

Manufacturer guidance

Insert detail or links to relevant performance clause(s) as required.

Substrate

-

Testing

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Preparation

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Primer

Resuprime™ ST.

Guidance for specification option:

To be applied by roller or squeegee.

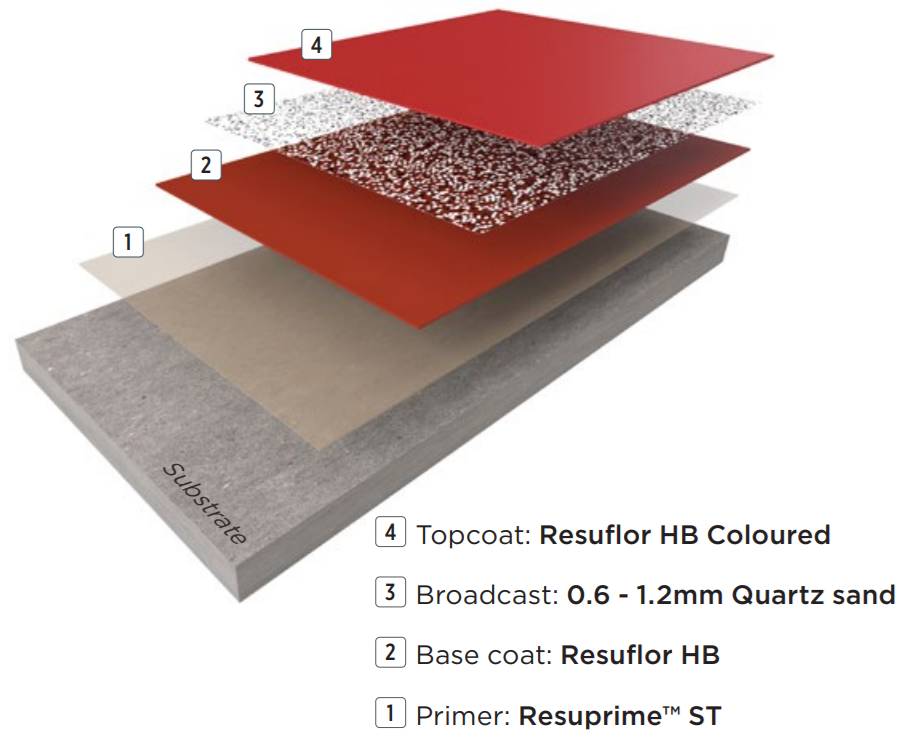

Surface treatment

Base coat: Resuflor HB.
Broadcast: 0.6–1.2 mm quartz sand.
Top coat: Resuflor HB Coloured.

Guidance for specification option:

  • Base coat to be applied by roller or squeegee.
  • Quartz sand to be broadcast (scattered).
  • Top coat to be applied by roller or squeegee.

Movement joints

-

Type

Guidance for specification option:

Insert requirements or omit.

Attachment

Guidance for specification option:

Insert requirements or omit.

Resin skirtings and upstands

Guidance for specification option:

Insert requirements or omit.

System accessories

Guidance for specification option:

Insert requirements or omit.

System completion

Guidance for specification option:

Insert details or links to relevant clause(s) as required.

Colour

White.
Stirling.
Flint.
Black.
Buff.
Savannah.
Marigold.
Kingfisher.
Poppy Red.
Salsa.
Forest Green.
Tuscan Glade.

System thickness

1 mm.

Guidance for specification option:

Approx.

Curing time

At 20°C:
Foot traffic: 12–16 hours;
Full traffic: 24–36 hours;
Full chemical cure: 7 days.

Guidance for specification option:

Consult manufacturer's literature for further details including typical times at 10°C and 30°C.

Manufacturer guidance

Typical times.

Abrasion resistance

To ASTM D4060-14, 140.1 mg loss per 1000 cycles

CompressiveStrength

To BS EN ISO 604:2003, 9.6 MPa.

TensileStrength

To BS EN ISO 527-2:2012, 3.6 MPa.

Flexural strength

To BS EN ISO 178:2010+A1:2013, 3.2 N/mm²

Bond strength

To BS EN 13892-8:2002, >3 N/mm² (substrate failure).

Temperature resistance

Temperatures up to 60°C.

Chemical resistance

Good.

Manufacturer guidance

Three days' exposure:

  • No change: Hyjet; Skydrol; toluene; ethanol; methyl ethyl ketone (MEK); acetone; potassium hydroxide 20%; sodium hydroxide 20%; potassium chloride; sodium chloride.

Reaction to fire

To EN 13501-1:2018, Bfl – s1.

Slip resistance

To BS 7976-2:2002+A1:2013, >36.

Category of use

FeRFA category 3.

Sustainability data

Material

Epoxy resin
Quartz
Sand

Literature

Resin Flooring System Resuflor™ Topcoat SR3 System Guide

Resin Flooring System Resuflor™ Topcoat SR3 System Guide
