Resin Flooring System Resuflor™ Topcoat SL SDU - Epoxy Resin-Based Coating System

Verified by manufacturer 12 days ago

Sherwin-Williams

Resuflor Topfloor SL SDU is a self-smoothing epoxy resin based coating system with a static dissipative urethane topcoat.

Jump to:
+44 (0)1204 521771 Website

Application

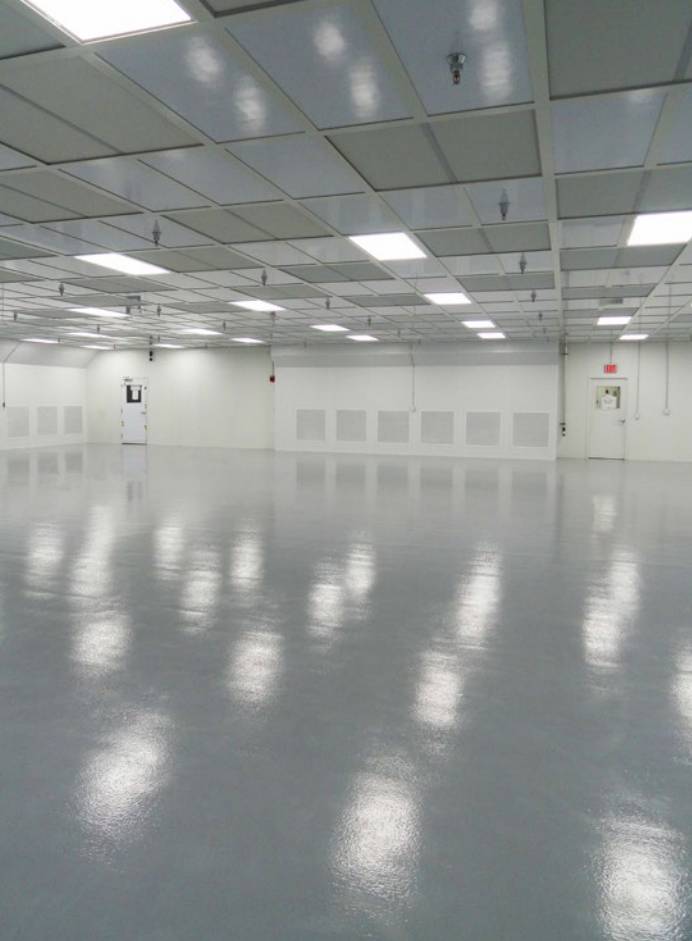

Well suited to use in laboratories, cleanrooms, electronics manufacturing and many other areas requiring ESD performance:

  • Aircraft hangars.
  • Aerospace manufacturing.
  • Automotive manufacturing.
  • Semiconductor manufacturing.
  • Electronics manufacturing.
  • Pharmaceutical manufacturing.
  • Chemical plants.
  • Workshops.
  • Laboratories.
  • Cleanrooms.

Description

Resuflor Topfloor SL SDU is a self-smoothing epoxy resin based coating system with a static dissipative urethane topcoat.

The system provides a highly durable satin finish with high chemical resistance and UV stability. Well suited to use in laboratories, cleanrooms, electronics manufacturing and many other areas requiring ESD performance.

Features and benefits:

  • Electro-Static Dissipative (ESD).
  • Lightly textured profile reduces slip potential.
  • High chemical resistance.
  • Resistant to many solvents, fuels and Skydrol.
  • Durable finish.
  • Satin finish.
  • UV stable.
  • Seamless.
  • Hygienic.

General information

Color

Beige

Black

Blue

Green

Grey

Show more

Finish

Textured

Anti-slip

Satin

Material

Resin

Epoxy resin

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Manufacturer guidance

System thickness.

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/110 Resin flooring

M12/10 Resin flooring

Specification data - Resin flooring systems

Classification data

System performance

Durability
Water and vapour resistance
Environmental conditions in service
Compliance with performance requirements
Flatness and surface regularity
Slip resistance

Manufacturer guidance

Insert detail or links to relevant performance clause(s) as required.

Substrate

-

Testing

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Preparation

Guidance for specification option:

Consult manufacturer for details and insert requirements.

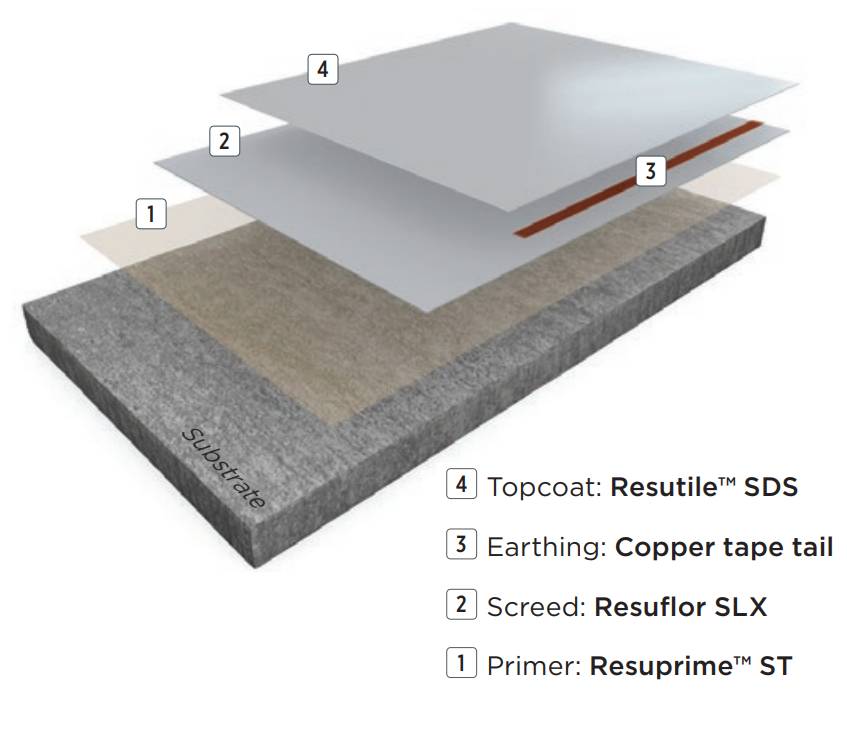

Primer

Resuprime™ ST.

Guidance for specification option:

To be applied by squeegee or roller.

Resin flooring

Resuflor™ SLX screed.

Guidance for specification option:

To be applied by trowel or pin rake.

Surface treatment

Earthing: copper tape tail.
Top coat: Resutile™ SDS.

Guidance for specification option:

Top coat to be applied by roller.

Movement joints

-

Type

Guidance for specification option:

Insert requirements or omit.

Attachment

Guidance for specification option:

Insert requirements or omit.

Resin skirtings and upstands

Guidance for specification option:

Insert requirements or omit.

System accessories

Guidance for specification option:

Insert requirements or omit.

System completion

Guidance for specification option:

Insert details or links to relevant clause(s) as required.

Colour

Canada Grey.
Light Grey.
Black.
Sandy Beige.
Rich Green.
Regal Blue.
Rotunda Red.
White.
Bright Yellow.
Steel Grey.
Charcoal.
Tile Red.

System thickness

3 mm.

Guidance for specification option:

Approx.

Curing time

At 20°C:
Foot traffic: 24 hours;
Full traffic: 48 hours;
Full chemical cure: 14 days.

Guidance for specification option:

Consult manufacturer's literature for further details including typical times at 10°C and 30°C.

Manufacturer guidance

Typical times.

Abrasion resistance

To ASTM D4060 CS-17: wheel, 1000gm load, 1000 cycles – 38 mg loss.

CompressiveStrength

To BS EN ISO 604:2003, 42.6 MPa.

TensileStrength

To BS EN ISO 527-2:2012, 20 N/mm².

Flexural strength

To ISO 178:2010, 45 MPa.

Bond strength

To BS EN 13892-8:2002, >3 N/mm² (substrate failure).

Impact resistance

To BS EN 1504-2:2004, Class II.

Temperature resistance

Temperatures up to 60°C.

Chemical resistance

Excellent.

Manufacturer guidance

Seven days' exposure:

  • No change: hydrochloric acid 30%; acetic acid 10%; citric acid 10%; oleic acid; sodium hydroxide 50%; ethylene glycol (antifreeze); JP-4 jet fuel; Skydrol 500B; Skydrol LD4; sodium chloride 20%.

Reaction to fire

To BS EN 13501-1:2018, Bfl – s1.

Slip resistance

To BS EN 16165:2021, Wet 15; Dry 89.

Technical characteristics, other

Resistance to ground to BS EN 61340-4-5:2018: Rg <1 x 10^9 Ω and absolute value of body voltage 100 V.

Sustainability data

Material

Resin
Epoxy resin

Literature

Resin Flooring System Resuflor™ Topcoat SL SDU System Guide

Resin Flooring System Resuflor™ Topcoat SL SDU System Guide
