Resin Flooring System Resuflor™ Topcoat SL ESD - Self-Smoothing Epoxy Resin Floor

Verified by manufacturer 12 days ago

Sherwin-Williams

Resuflor Topfloor SL ESD is a static-dissipative, self-smoothing, epoxy resin flooring system which provides a durable floor with an electrical conductivity leakage resistance of 10⁹ ohms.

Jump to:
+44 (0)1204 521771 Website

Application

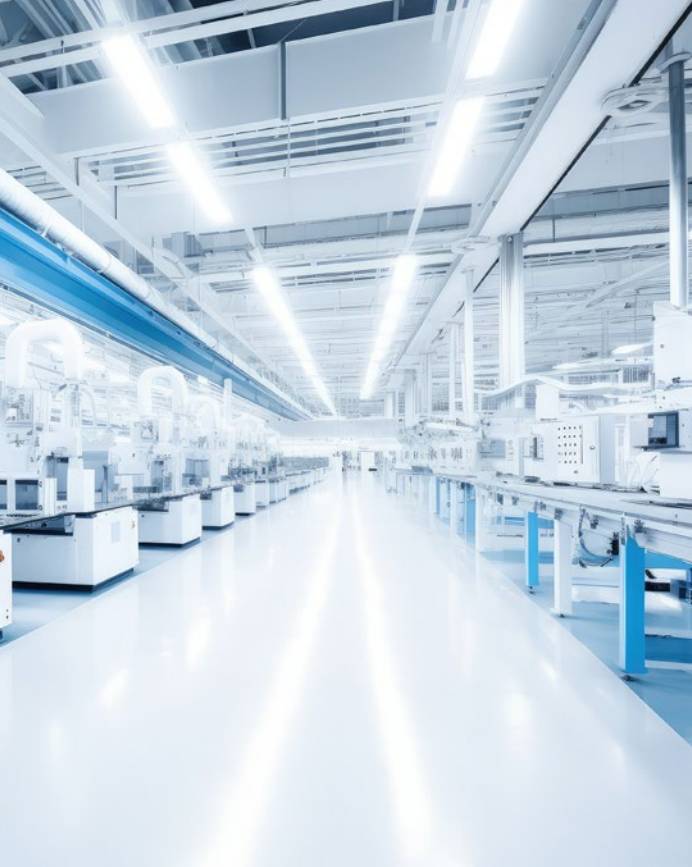

Well suited for production areas and clean rooms where a static-dissipative, smooth, tough and hygienic floor is required:

  • Laboratories.
  • Electronics manufacturing.
  • Workshops.
  • Printing and packaging areas.
  • Television studios.
  • Automotive production.
  • Pharmaceutical processing.
  • Chemical plant processing.
  • Operating theatres.
  • Data centres.
  • Battery manufacturing.

Description

Resuflor Topfloor SL ESD is a static-dissipative, self-smoothing, epoxy resin flooring system which provides a durable floor with an electrical conductivity leakage resistance of 10⁹ ohms when tested to BS EN 61340-4-1: 2004+A1:2015.

The system comprises selected epoxy resins, conductive fillers and pigments to provide an aesthetically pleasing gloss finish with resistance against chemical attack and abrasion.

It is especially suited for production areas and clean rooms where a static-dissipative, smooth, tough and hygienic floor is required.

Features and benefits:

  • Seamless.
  • Static dissipative.
  • Gloss finish.
  • Silica free.
  • Hard wearing.
  • Hygienic.
  • Good chemical resistance.
  • Smooth finish for precise operation equipment.
  • Meets the requirements of EN 61340-5-1:2016 and tested according to EN 61340-4-5 and EN 61340 4-1.
  • Impermeable and non-porous.
  • Non-dusting.

General information

Color

Black

Blue

Green

Grey

Red

Finish

Gloss

Smooth

Material

Resin

Epoxy resin

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Manufacturer guidance

System thickness.

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/110 Resin flooring

M12/10 Resin flooring

Specification data - Resin flooring systems

Classification data

System performance

Durability
Water and vapour resistance
Environmental conditions in service
Compliance with performance requirements
Flatness and surface regularity

Manufacturer guidance

Insert detail or links to relevant performance clause(s) as required.

Substrate

-

Testing

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Preparation

Guidance for specification option:

Consult manufacturer for details and insert requirements.

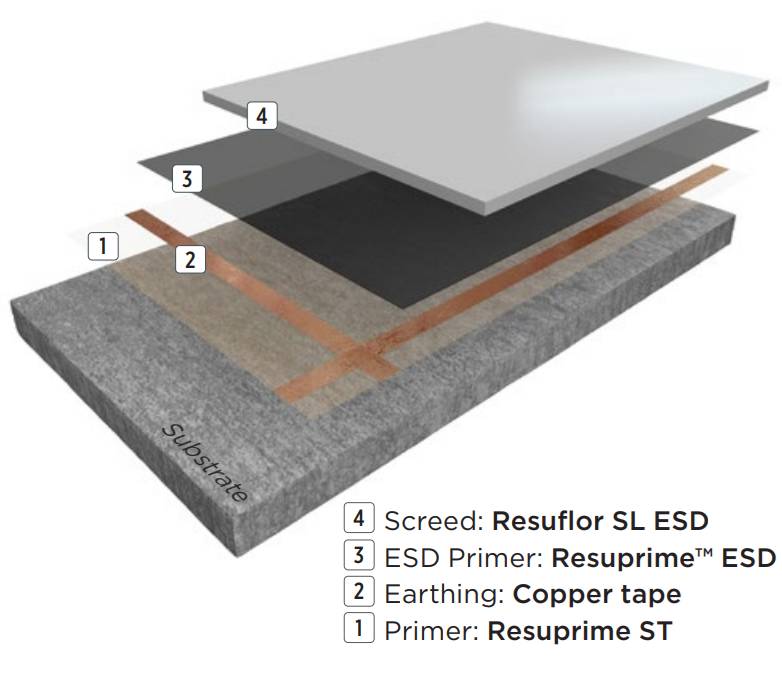

Primer

Primer: Resuprime™ ST.
Earthing: copper tape.
ESD primer: Resuprime™ ESD.

Guidance for specification option:

  • Primer to be applied by squeegee or roller.
  • Copper tape: self-adhesive.
  • ESD primer to be applied by roller.

Resin flooring

Resuflor™ SL ESD screed.

Guidance for specification option:

To be applied by trowel or spiked roller.

Movement joints

-

Type

Guidance for specification option:

Insert requirements or omit.

Attachment

Guidance for specification option:

Insert requirements or omit.

Resin skirtings and upstands

Guidance for specification option:

Insert requirements or omit.

System accessories

Guidance for specification option:

Insert requirements or omit.

System completion

Guidance for specification option:

Insert details or links to relevant clause(s) as required.

Colour

Stirling.
Flint.
Black.
Traffic Blue.
Salsa.
Forest Green.

System thickness

5 mm.

Guidance for specification option:

Approx.

Curing time

At 20°C:
Foot traffic: 16–24 hours;
Full traffic: 72 hours;
Full chemical cure: 7 days.

Guidance for specification option:

Consult manufacturer's literature for further details including typical times at 10°C and 30°C.

Manufacturer guidance

Typical times.

Electrical resistance

To BS EN 61340-4-1:2004+A1:2015, <10⁹ ohms.

Hardness

At 24 hours, Shore D to BS ISO 7619-1:2010, 70.

Abrasion resistance

To BS EN 13892-4:2002, AR 0.5.

CompressiveStrength

To BS EN ISO 604:2003, 38.6 MPa.

TensileStrength

To BS EN ISO 527-2:2012, 9.2 MPa.

Flexural strength

To BS EN ISO 178:2010+A1:2013, 24 N/mm².

Bond strength

To BS EN 13892-8:2002, >3 N/mm² (substrate failure).

Reaction to fire

To BS EN 13501-1:2018, Bfl – s1.

Temperature resistance

Temperatures up to 60°C.

Impact resistance

To BS EN 1504-2:2004, Class II.

Category of use

FeRFA category 5.

Chemical resistance

Good.

Guidance for specification option:

Sherwin-Williams High Performance Flooring offers a broad range of systems to accommodate nearly every industrial, commercial and institutional setting. Each flooring system includes a standard chemical resistant topcoat or surface proven to perform under typical conditions.

Consult manufacturer for details.

Sustainability data

Material

Resin
Epoxy resin
