Resin Flooring System Resuflor™ Topcoat SDU - Epoxy Resin-Based Coating System
Verified by manufacturer 1 month ago
Resuflor Topcoat SDU is an epoxy resin-based coating system with a static dissipative urethane topcoat. Provides a highly durable satin finish with high chemical resistance and UV stability.
Application

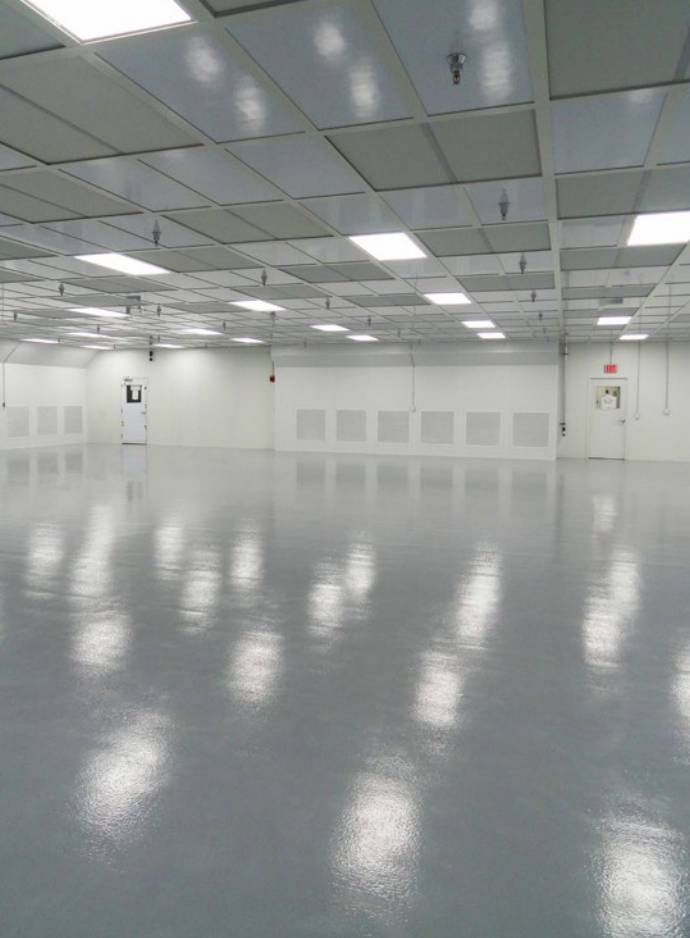

Well suited to use in laboratories, cleanrooms, electronics manufacturing and many other areas requiring ESD performance:
- Aircraft hangars.
- Aerospace manufacturing.
- Automotive manufacturing.
- Semiconductor manufacturing.
- Electronics manufacturing.
- Pharmaceutical manufacturing.
- Chemical plants.
- Workshops.
- Laboratories.
- Cleanrooms.
Description
Resuflor Topcoat SDU is an epoxy resin-based coating system with a static dissipative urethane topcoat. The system provides a highly durable satin finish with high chemical resistance and UV stability.
Well suited to use in laboratories, cleanrooms, electronics manufacturing and many other areas requiring ESD performance.
Features and benefits:
- Electro-Static Dissipative (ESD).
- Lightly textured profile reduces slip potential.
- High chemical resistance.
- Resistant to many solvents, fuels and Skydrol.
- Durable finish.
- Satin finish.
- UV stable.
- Seamless.
- Hygienic.
General information
Color | Beige Black Blue Green Grey |
Finish | Textured Anti-slip Satin |
Material | Resin Epoxy resin |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke Manufacturer guidanceSystem thickness. |
Uniclass | |
CAWS | M12/110 Resin flooring M12/10 Resin flooring |
Specification data - Resin flooring systems
Classification data | |
System performance | Durability Water and vapour resistance Environmental conditions in service Compliance with performance requirements Flatness and surface regularity Slip resistance Manufacturer guidanceInsert detail or links to relevant performance clause(s) as required. |
Substrate | |
Testing | Guidance for specification option: Consult manufacturer for details and insert requirements. |
Preparation | Guidance for specification option: Consult manufacturer for details and insert requirements. |

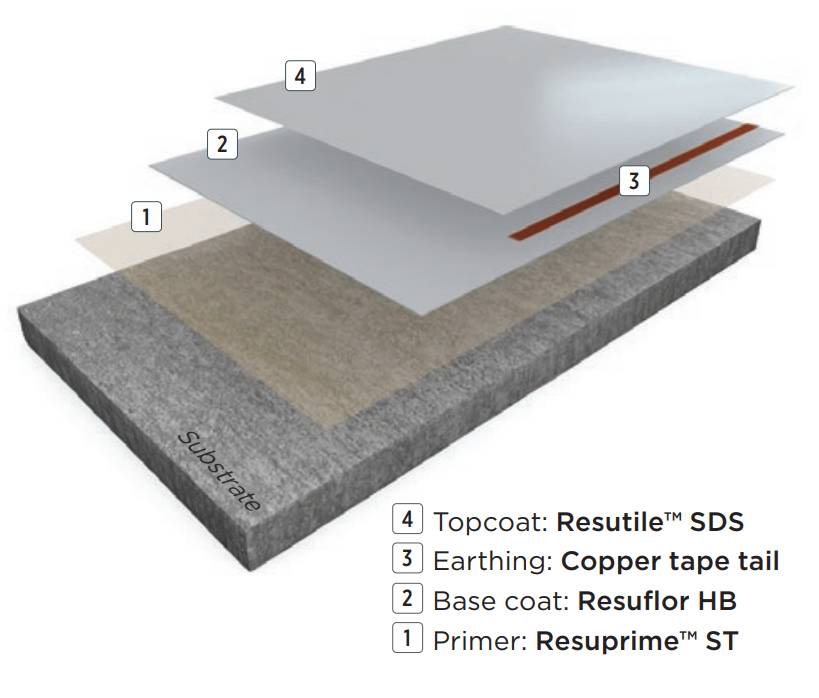

Primer | Resuprime™ ST. Guidance for specification option: To be applied by squeegee or roller. |
Surface treatment | Base coat: Resuflor™ HB. Earthing: copper tape tail. Top coat: Resutile™ SDS. Guidance for specification option:
|
Movement joints | |
Type | Guidance for specification option: Insert requirements or omit. |
Attachment | Guidance for specification option: Insert requirements or omit. |
Resin skirtings and upstands | Guidance for specification option: Insert requirements or omit. |
System accessories | Guidance for specification option: Insert requirements or omit. |
System completion | Guidance for specification option: Insert details or links to relevant clause(s) as required. |
Colour | Canada Grey. Light Grey. Black. Sandy Beige. Rich Green. Regal Blue. Rotunda Red. White. Bright Yellow. Steel Grey. Charcoal. Tile Red. |
System thickness | 0.5 mm. Guidance for specification option: Approx. |
Curing time | At 20°C: Foot traffic: 24 hours; Full traffic: 48 hours; Full chemical cure: 14 days. Guidance for specification option: Consult manufacturer's literature for further details including typical times at 10°C and 30°C. Manufacturer guidanceTypical times. |
Abrasion resistance | To ASTM D4060 CS-17: wheel, 1000gm load, 1000 cycles – 38 mg loss. |
CompressiveStrength | To BS EN ISO 604:2003, 9.6 MPa. |
TensileStrength | To BS EN ISO 527-2:2012, 3.6 MPa. |
Flexural strength | To ISO 178:2010, 3.2 N/mm². |
Bond strength | To BS EN 13892-8:2002, >3 N/mm² (substrate failure). |
Impact resistance | To BS EN 1504-2:2004, Class II. |
Temperature resistance | Temperatures up to 60°C. |
Chemical resistance | Excellent. Manufacturer guidanceSeven days' exposure:
|
Reaction to fire | To BS EN 13501-1:2018, Bfl – s1. |
Slip resistance | To BS EN 16165:2021, Wet 15; Dry 89. |
Technical characteristics, other | Resistance to ground to BS EN 61340-4-5:2018: Rg <1 x 10^9 Ω and absolute value of body voltage 100 V. |
Sustainability data
Material | Resin Epoxy resin |
Literature

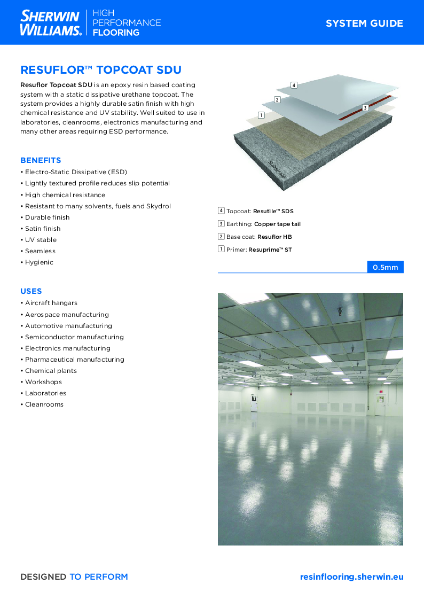

Resin Flooring System Resuflor Topcoat SDU System Guide
