Resin Flooring System Resuflor™ Deco Quartz TG SR - Decorative Epoxy Floor Screed System

Verified by manufacturer 12 days ago

Sherwin-Williams

Decorative epoxy floor screed system incorporating multi-coloured aggregates designed to produce a hard wearing, attractive surface.

Jump to:
+44 (0)1204 521771 Website

Application

Suitable for use in:

  • Pharmaceutical manufacturing.
  • Laboratories.
  • Schools, colleges and universities.
  • Stadiums and arenas.
  • Reception areas.
  • Changing rooms.
  • Showers.
  • Leisure facilities.
  • Prisons.
  • Custody suites.
  • Veterinary centres.
  • Healthcare.
  • Manufacturing facilities.
  • Transport hubs.
  • Retail.

Description

Decorative epoxy floor screed system incorporating multi-coloured aggregates designed to produce a hard wearing, attractive surface.

The base epoxy screed is broadcast with extra coloured quartz and sealed with clear resins to provide a slip-resistant, matt finish.

Features and benefits:

  • Decorative finish.
  • Matt finish.
  • Seamless floor and coving in same material.
  • Hygienic.
  • Low odour.
  • Slip-resistant texture.
  • Well suited to bare feet.
  • Chemical resistant.
  • Abrasion and impact resistant.

General information

Color

Finish

Matt

Smooth

Material

Epoxy resin

Quartz

Aggregate

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Guidance for specification option:

4–6 mm system thickness.

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/110 Resin flooring

M12/10 Resin flooring

Specification data - Resin flooring systems

Classification data

System performance

Durability
Water and vapour resistance
Environmental conditions in service
Compliance with performance requirements
Flatness and surface regularity

Manufacturer guidance

Insert detail or links to relevant performance clause(s) as required.

Substrate

-

Testing

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Preparation

Guidance for specification option:

Consult manufacturer for details and insert requirements.

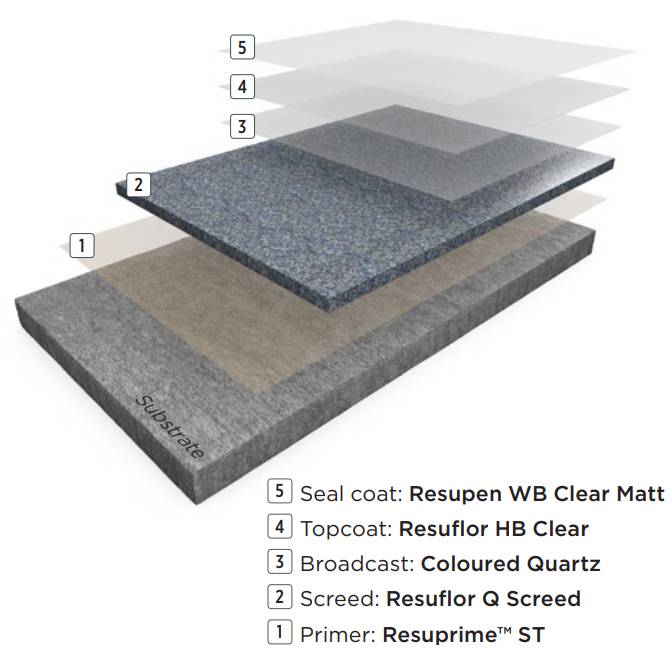

Primer

Resuprime™ ST.

Guidance for specification option:

To be applied by trowel or squeegee.

Resin flooring

Resuflor Q screed.

Guidance for specification option:

To be applied by trowel.

Surface treatment

Aggregate: coloured quartz.
Top coat: Resuflor HB Clear.
Seal coat: Resupen™ WB Clear Matt.

Guidance for specification option:

  • Quartz to be broadcast.
  • Top coat to be applied by roller or squeegee.
  • Seal coat to be applied by roller.

Movement joints

-

Type

Guidance for specification option:

Insert requirements or omit.

Attachment

Guidance for specification option:

Insert requirements or omit.

Resin skirtings and upstands

Guidance for specification option:

Insert requirements or omit.

System accessories

Guidance for specification option:

Insert requirements or omit.

System completion

Guidance for specification option:

Insert details or links to relevant clause(s) as required.

Colour

Breccia.
Calcite.
Carbonite.
Dasite.
Farrar.
Lapis.
Onyx.
Sandstone.
Scoria.

System thickness

4 mm.

Curing time

At 20°C:
Foot traffic: 12–16 hours;
Full traffic: 48–72 hours;
Full chemical cure: 7 days.

Guidance for specification option:

Consult manufacturer's literature for further details including typical times at 10°C and 30°C.

Manufacturer guidance

Typical times.

Abrasion resistance

To BS 8204-2, 130.6 mg loss per 1000 cycles.

CompressiveStrength

To BS EN 13892-2:2002, 56 MPa.

TensileStrength

To BS 6319-7:1985, 5.9 N/mm².

Flexural strength

To BS EN 13892-2:2002, 0.8 N/mm².

Bond strength

To BS EN 13892-8:2002, >3 N/mm² (substrate failure).

Impact resistance

To BS EN 1504-2:2004, Class II.

Temperature resistance

Temperatures up to 50°C.

Chemical resistance

Manufacturer's standard.

Guidance for specification option:

Sherwin-Williams High Performance Flooring offers a broad range of systems to accommodate nearly every industrial, commercial and institutional setting. Each flooring system includes a standard chemical resistant topcoat or surface proven to perform under typical conditions.

Consult manufacturer for details and insert requirements where applicable.

Reaction to fire

To EN 13501-1:2018, Bfl – s1.

Category of use

FeRFA category 6.

Sustainability data

Material

Epoxy resin
Quartz
Aggregate

Literature

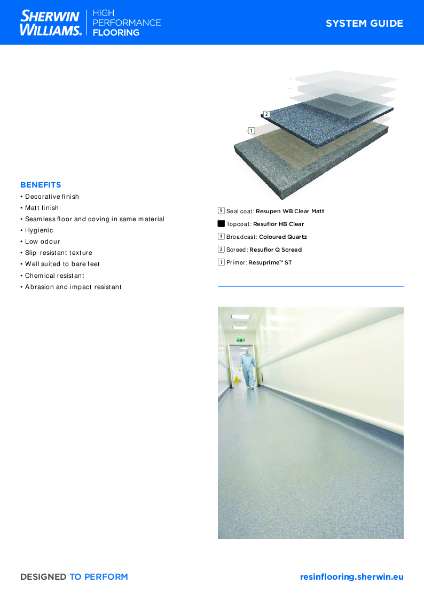

Resin Flooring System Resuflor™ Deco Quartz TG SR System Guide

Resin Flooring System Resuflor™ Deco Quartz TG SR System Guide
