ResiBRICK Double A1 Non Combustible Fire Rated Metal Airbrick and Ducting Kit - Metal Airbrick

Name: ResiBRICK Double A1 Non Combustible Fire Rated Metal Airbrick and Ducting Kit - Metal Airbrick
Brand: Pinnacle HVAC Solutions
SKU: 8MudmueWdJ7KrHtbji4h4S

Verified by manufacturer 19 days ago

ResiBRICK Double A1 Kit 150 mm

Pinnacle HVAC Solutions

A1 fire rated, non combustible airbrick and ducting kit for external terminations in high rise residential buildings over 18m (11m in Scotland)

Jump to:

033 0223 4190 Website

Application

Designed to be built into external wall types during construction in accordance with Approved Document B (fire safety)
Suitable for use as an external termination for MVHR ventilation systems in residential applications
Suitable for use in high-rise buildings (18m + England and Wales and 11m + Scotland) undergoing unsafe cladding remediation work

Description

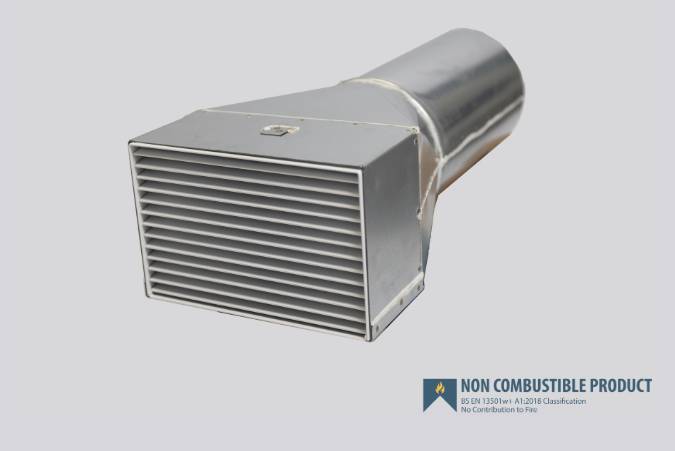

ResiBRICK A1 Double is an A1 non combustible fire-rated, airbrick and duct transition kit. Available in a range of sizes and manufactured in the UK, the ResiBRICKA1 range is tested to meet the requirements of the A1 and A2-s1,d0 classifications for fire safety.

Suitable for use in external wall terminations for MVHR ventilation systems.

DOWNLOAD REVIT FILES

Double Airbrick - 204x60mm Duct Transition

Double Airbrick - 220x90mm Duct Transition

Double Airbrick - 150mm Duct Transition

Double Airbrick - 180mm Duct Transition

Features and benefits:

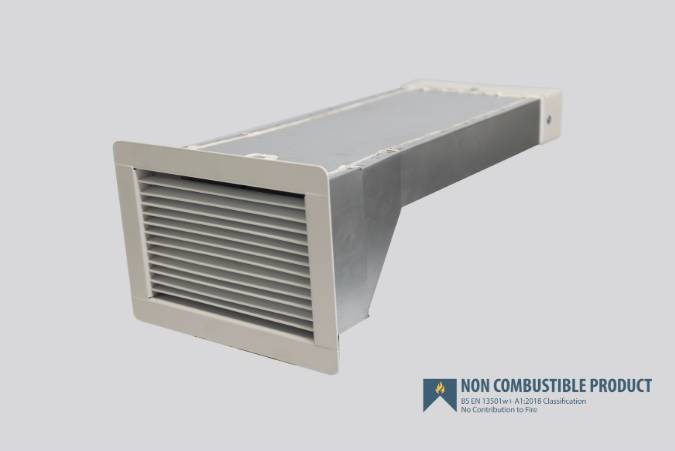

Double Airbrick with/without picture frame design
Including A1 duct transition kit - 600m long
4 duct connection : 204x60, 220x90, 150, 180mm
Mechanical fixing for added strength and security
Female connectors included for easy transition to internal duct (rectangular)
Compatible with rigid PVC and metal ducting -suitable for use with ResiDUCT™
Optional lengths and bespoke grille sizes available

General information

Color	Beige Black Brown Copper Other White Show more
Finish	Galvanized Guidance for specification option: Galvanised Steel 0.9mm Ducting Transition and Airbrick Matt Guidance for specification option: Powder Coated to Class A2-s1, d0) RAL colour chart Powder-coated Guidance for specification option: Powder Coated to Class A2-s1, d0) RAL colour chart Manufacturer guidance Galvanised Steel 0.9mm Ducting Transition Airbrick Powder Coated to Class A2-s1, d0) 5 Standard RAL Colours - Bespoke Available
Material	Steel Guidance for specification option: 0.9mm hot dipped galvanised steel. Class A1 without testing Manufacturer guidance 0.9mm hot dipped galvanised steel. Class A1 without testing
Shape	Rectangle Guidance for specification option: Rectangular Duct Transition Connections: Airbrick with duct transition compatible with rectangular ductwork 204x60mm and 220x90mm Circle Guidance for specification option: Circular Duct Transition Connections: Airbrick with duct transition compatible with circular ductwork 150mm or 180mm diameter available
Length	600 mm Guidance for specification option: Length of Airbrick and Duct Transition Kit Bespoke Manufacturer guidance Overall Length with Airbrick and Duct Transition 600mm
Width	150 mm Guidance for specification option: Diameter of Ducting Transition 180 mm Guidance for specification option: Diameter of Ducting Transition 204 mm Guidance for specification option: Width of Ducting Transition - 204 x 60mm 220 mm Guidance for specification option: Width of Ducting Transition - 220 x 90mm Manufacturer guidance Airbrick Width: With Picture Frame : 265mm Without Picture Frame: 215mm Width of Ducting Transition (Kit) 204/220mm (rectangular) 150/180mm diameter (Circular)
Height	60 mm Guidance for specification option: Height of ducting transition option (204x60mm) 90 mm Guidance for specification option: Height of ducting transition option (220x90mm) 190 mm Guidance for specification option: Height of Airbrick with picture frame 140 mm Guidance for specification option: Height of Airbrick without picture frame Manufacturer guidance Airbrick Height: With picture frame: 190mm Without picture frame: 140mm Height of Ducting Transition Options: 60mm 90mm 150/180mm diameter
Warranty description	Five year

Uniclass	Pr_35_90_50_03 AirbricksPrimary
CAWS	F30/17 Ventilation ducts in external walling F30/171 Ventilation ducts in external walling F30/160 Airbricks in external walling F30/15 Airbricks in external walling

SKU Code	RB-DOU-150/600

Specification data - Airbricks

Classification data
Standard	To BS 493.
Class	1.
Apertures	Rectangular hole.
Work sizes	⌀150 mm.
Material	-
Colour	- Manufacturer guidance Consult manufacturer and insert requirements. Available in five standard RAL colours.
Surface finish	RAL powder-coating. Manufacturer guidance To EN 13501-1, classification Class A2-s1,d.
Material	0.9 mm hot-dipped galvanized steel.
Airbrick	215 x 140 x 60 mm. Guidance for specification option: Airbrick fitted inside duct transition.
Length	600 mm. Other. Guidance for specification option: Optional lengths available on request. Consult manufacturer and insert requirements. Manufacturer guidance Overall length.
Free area	25 155 mm².
Sealant	Nullifire FS709.
Fire resistance	A1 non-combustible. Guidance for specification option: ResiBRICK A1 Rated Airbrick and Duct Transition Kits are manufactured from 0.9 mm hot dipped galvanized steel. The fire resistance classification criteria for construction products is detailed in BS EN 13501w+ A1:2018 and includes a list of products (European Commission 96/603/EC) which, under specified conditions, can be considered to be class A1 without testing. Galvanized steel achieves a fire class A1 rating without the need for testing.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Manufacturing plant location	Havant PO9, UK
Material	Steel Guidance for specification option: 0.9mm hot dipped galvanised steel. Class A1 without testing Manufacturer guidance 0.9mm hot dipped galvanised steel. Class A1 without testing
Recyclability	Recyclable
