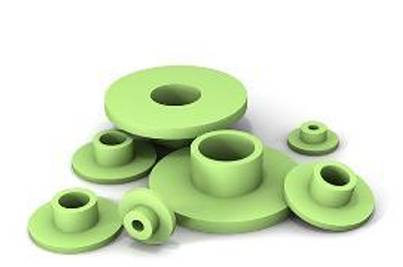

REGUPOL 3D Isolation Washer
Verified by manufacturer 25 days ago
M6 Diameter
M6 Diameter
Isolation washer that helps reduce noise caused by mechanical fasteners.
Application
Suitable for applications including:
- Mechanical fixings.
- Structural fixings.
- Machinery mounting.
- Timber and metal partitions.
Description

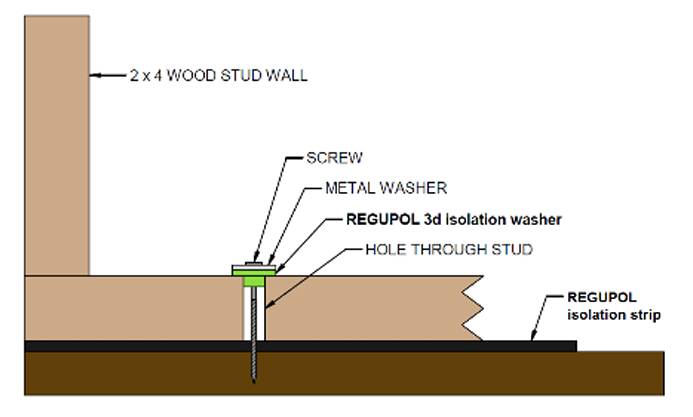

REGUPOL 3D Isolation Washer are designed to reduce flanking noise transmitted by mechanical fasteners. The top-hat design effectively eliminates vibration transfer through decoupling. The bottom shank guides the fastener through the footing, preventing contact that could short-circuit the isolation system.
Features and benefits:
- Virtually eliminates vibration transfer.
- Quick and simple to install.
- Available in multiple sizes.
- Compatible with both metal and wood studs.
General information
Color | Green |
Material | Rubber |
Shape | Circle |
Width | 25 mm 35 mm 38 mm 41 mm 51 mm |
Height | 10 mm 13 mm 16 mm 22 mm |
Uniclass | |
CAWS | G10/20 Steel framing system K11/275 Acoustic separating floor system G10/150 Steel framing system K10/155 Wall lining system (metal studs) K10/220 Proprietary suspended ceiling system K10/165 Wall lining system (metal framing) K10/125 Metal stud partition system K10/35 Wall lining system (metal framing) |
Specification data - Washers
Classification data | |
Washers | |
Type | Isolation washer. |
Size | |
Inner diameter (minimum) | 7 mm. |
Outer diameter (minimum) | 25 mm. |
Thickness (minimum) | 3 mm. |
Torque | 32 Nm. |
Hardness | 50. Manufacturer guidanceShore hardness. |
Height | 10 mm. |
Deflection allowance | 1 mm. Manufacturer guidanceMaximum allowable static deflection. |
Sustainability data
Material | Rubber |
