CMS Danskin Acoustics Isolation Washer
Verified by manufacturer today
Resilient washer used for acoustic separation between fixings and steel washers.
Application
Suitable for applications requiring acoustic separation between fixings and items being secured.
Description

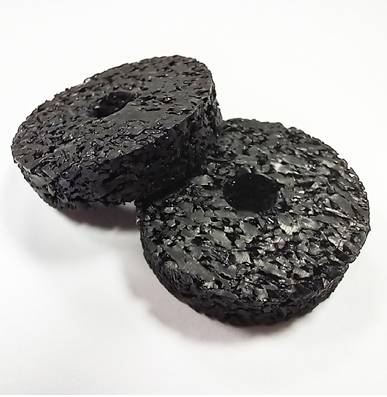

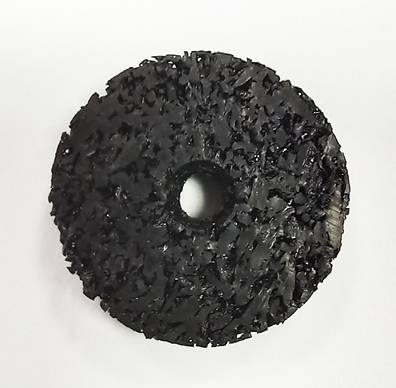

The CMS Danskin Acoustics Isolation Washer is a resilient component used to provide an acoustic separation between fixings and steel washers, and the item being fixed.
Features and benefits:
- Provides acoustic separation of fixings.
- Easy to install.
- Made from 92% post-consumer recycled rubber.
- Suitable for M6 fixings.
- Supplied in packs of 100.
General information
Color | Black |
Material | Rubber |
Shape | Circle |
Width | 25 mm Guidance for specification option: Diameter. |
Height | 6 mm |
Uniclass | |
CAWS | K10/35 Wall lining system (metal framing) K11/275 Acoustic separating floor system G10/20 Steel framing system G10/150 Steel framing system K10/220 Proprietary suspended ceiling system K10/165 Wall lining system (metal framing) K10/155 Wall lining system (metal studs) K10/125 Metal stud partition system K11/295 Floating floor system |
Specification data - Washers
Classification data | |
Washers | |
Type | Isolation washer. |
Material | Recycled rubber. |
Size | |
Inner diameter (minimum) | 6 mm. |
Outer diameter (minimum) | 25 mm. |
Thickness (minimum) | 6 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Rubber |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 92 % |
