REDSHIELD® Cavity Barrier - Cavity Barrier

Verified by manufacturer 6 months ago

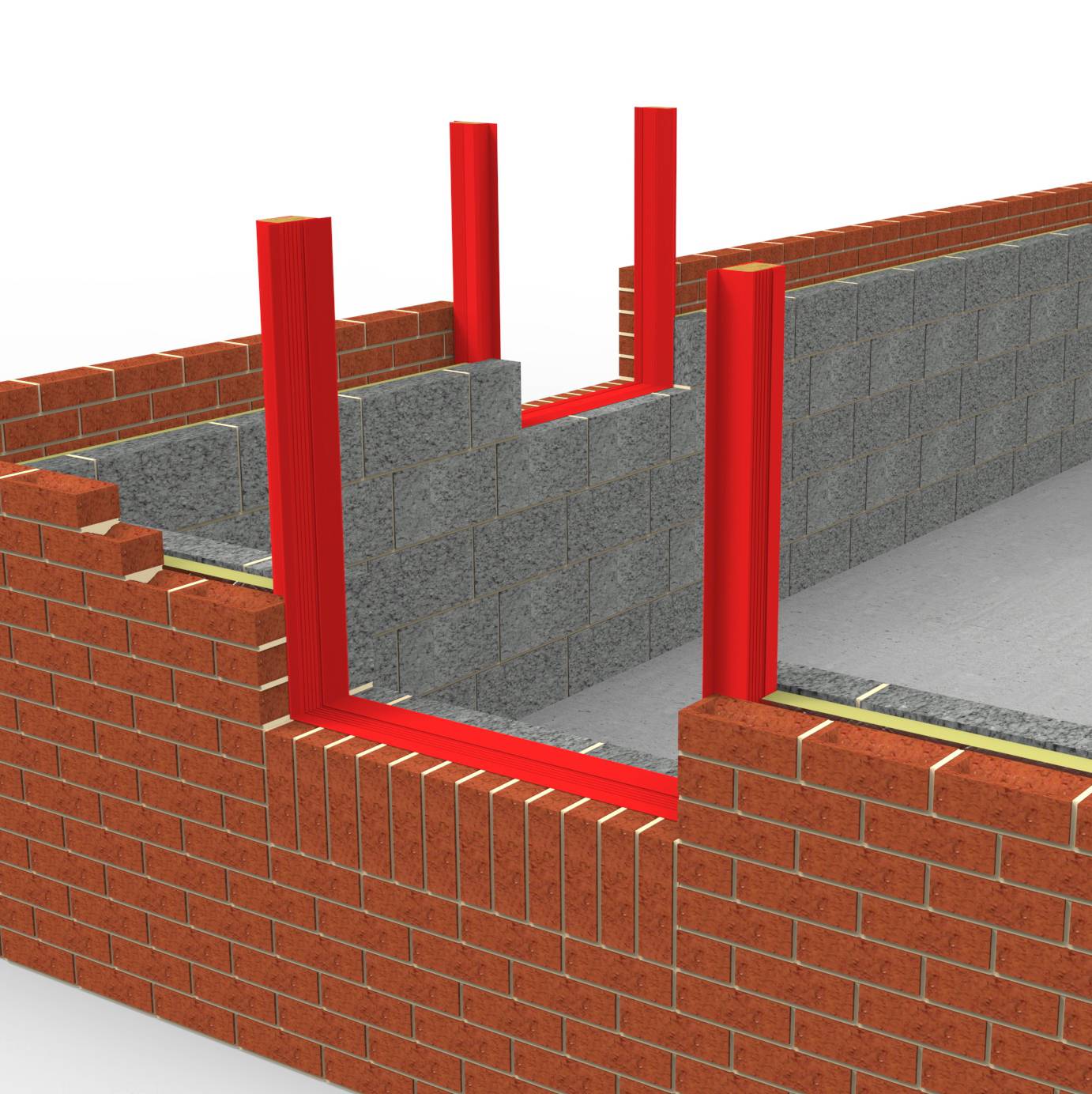

REDSHIELD® Cavity Barrier

Manthorpe Building Products Ltd Variant:
Third party certifications:
  • Warrington Fire

    Certificate type

One-product standard cavity barrier.

Jump to:
+44 (0)1773 303000 Website

Application

  • Adaptable to suit various cavity sizes, helping to maintain a continuous seal to a range of cavity widths especially those that may ‘stray’ in size.
  • Suitable for new build or refurbishment situations.

Description

REDSHIELD® and REDSHIELD®-R is a one-product cavity barrier which fulfils the fire integrity and insulation requirements of the Building Regulations Part B without relying on additional lining materials along with providing the necessary thermal break and DPC properties of a cavity closer.


The construction allows the product to be adaptable to suit various cavity sizes, helping to maintain a continuous seal to a range of cavity widths especially those that may ‘stray’ in size.


The construction incorporates a compressed mineral fibre wool insulating core which provides the 30 minutes’ integrity and 15 minutes’ insulation of a cavity barrier as well as providing a solution to cold bridging problems acting as a thermal cavity closer and DPC.


Features and benefits:

  • Easily incorporated into new build or refurbishment situations, with profiles available for standard and rebated details and no special fixing requirements.
  • Once installed REDSHIELD® and REDSHIELD®-R will last the lifetime of the building.

General information

Color

Red

Finish

Textured

Material

PVC-U

Mineral wool

Shape

Rectangle

Length

2400 mm

Width

Bespoke

Guidance for specification option:

Various widths depending on the size of the cavity.

Warranty description

Other

Guidance for specification option:

No warranty offered.

Manufacturer guidance

Once installed REDSHIELD® and REDSHIELD®-R will last the lifetime of the building.

Uniclass

Pr_35_90_50_64 Plastics cavity closersPrimary

CAWS

F30/180 Cavity closers

F30/18 Cavity closers

Specification data - Plastics cavity closers

To fit cavity width

50–70 mm.

70–90 mm.

90–110 mm.

110–130 mm.

130–160 mm.

Length (effective)

2400 mm.

Colour

Red.

Dimensions

2400 x 65 mm.

Guidance for specification option:

Length x height.

Material

PVC-U outer casing mineral wool insulation.

Reaction to fire

To BS EN 1366, 30 minutes integrity and 15 minutes insulation.

Guidance for specification option:

BS EN 1366-4:2006+A1:2010.

ThermalConductivity

0.039 W/mk.

Flange

Double.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Third party certifications

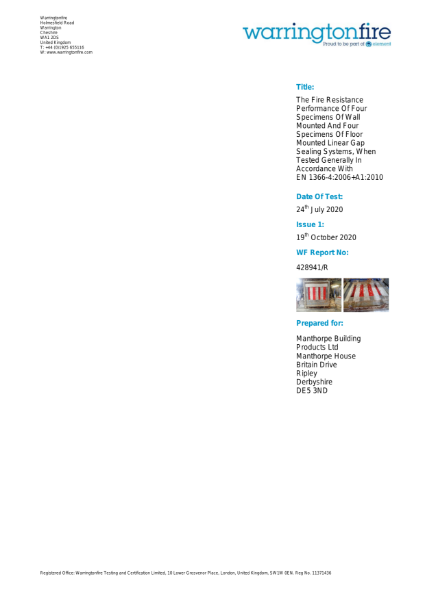

Warrington Fire

Warrington Fire

Warrington Fire

Literature

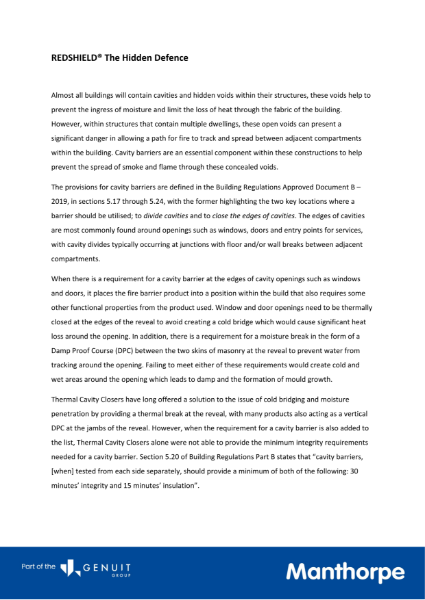

REDSHIELD® The Hidden Defence

REDSHIELD® The Hidden Defence
