REDSHIELD® Cavity Barrier - Cavity Barrier
Verified by manufacturer 6 months ago
REDSHIELD® Cavity Barrier
REDSHIELD® Cavity Barrier
Warrington Fire
Certificate type
One-product standard cavity barrier.
Application
- Adaptable to suit various cavity sizes, helping to maintain a continuous seal to a range of cavity widths especially those that may ‘stray’ in size.
- Suitable for new build or refurbishment situations.
Description

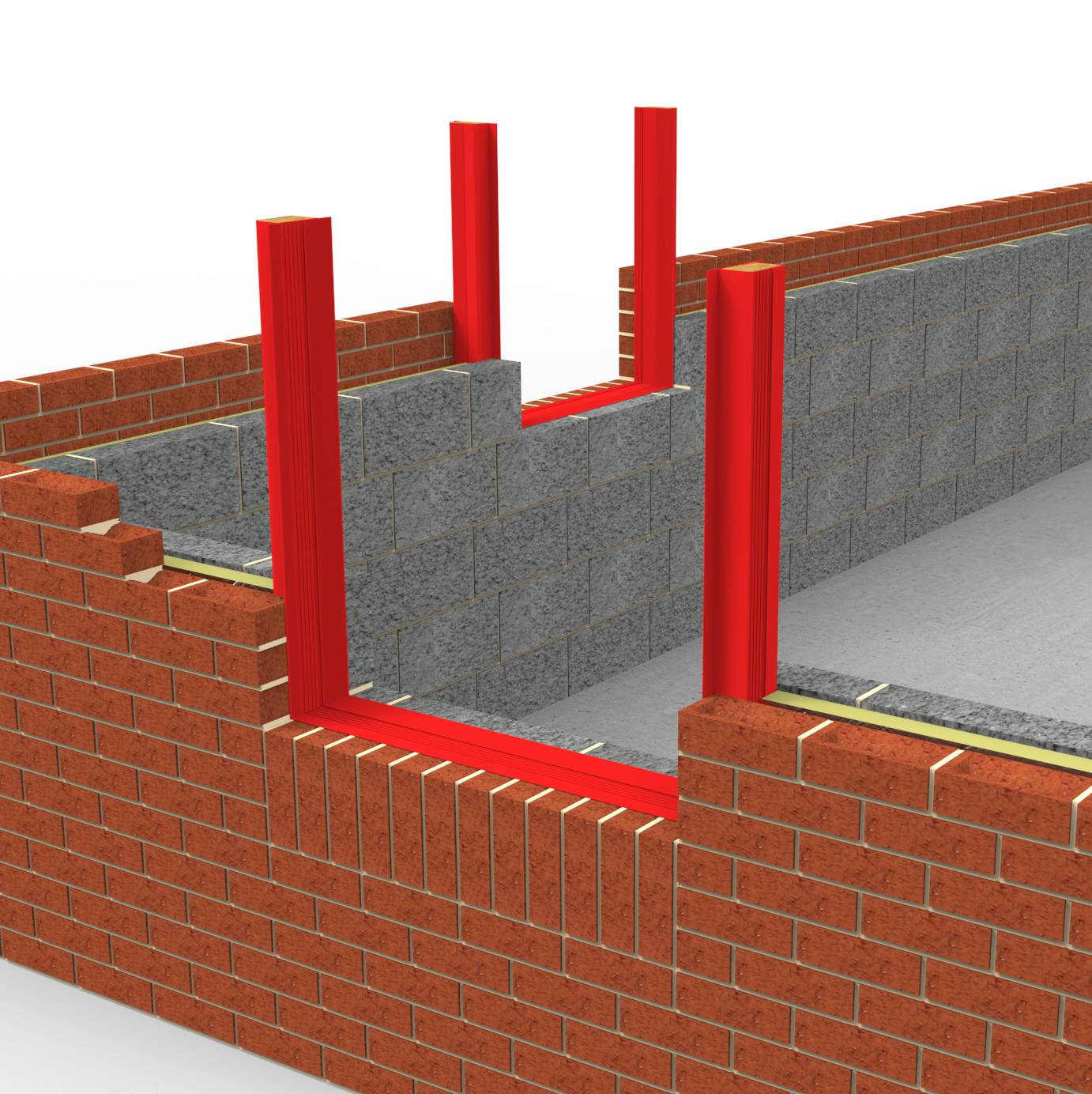

REDSHIELD® and REDSHIELD®-R is a one-product cavity barrier which fulfils the fire integrity and insulation requirements of the Building Regulations Part B without relying on additional lining materials along with providing the necessary thermal break and DPC properties of a cavity closer.
The construction allows the product to be adaptable to suit various cavity sizes, helping to maintain a continuous seal to a range of cavity widths especially those that may ‘stray’ in size.
The construction incorporates a compressed mineral fibre wool insulating core which provides the 30 minutes’ integrity and 15 minutes’ insulation of a cavity barrier as well as providing a solution to cold bridging problems acting as a thermal cavity closer and DPC.
Features and benefits:
- Easily incorporated into new build or refurbishment situations, with profiles available for standard and rebated details and no special fixing requirements.
- Once installed REDSHIELD® and REDSHIELD®-R will last the lifetime of the building.
General information
Color | Red |
Finish | Textured |
Material | PVC-U Mineral wool |
Shape | Rectangle |
Length | 2400 mm |
Width | Bespoke Guidance for specification option: Various widths depending on the size of the cavity. |
Warranty description | Other Guidance for specification option: No warranty offered. Manufacturer guidanceOnce installed REDSHIELD® and REDSHIELD®-R will last the lifetime of the building. |
Uniclass | |
CAWS | F30/180 Cavity closers F30/18 Cavity closers |
Specification data - Plastics cavity closers
To fit cavity width | 50–70 mm.70–90 mm.90–110 mm.110–130 mm.130–160 mm. |
Length (effective) | 2400 mm. |
Colour | Red. |
Dimensions | 2400 x 65 mm. Guidance for specification option: Length x height. |
Material | PVC-U outer casing mineral wool insulation. |
Reaction to fire | To BS EN 1366, 30 minutes integrity and 15 minutes insulation. Guidance for specification option: BS EN 1366-4:2006+A1:2010. |
ThermalConductivity | 0.039 W/mk. |
Flange | Double. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Third party certifications
Literature
REDSHIELD® The Hidden Defence
