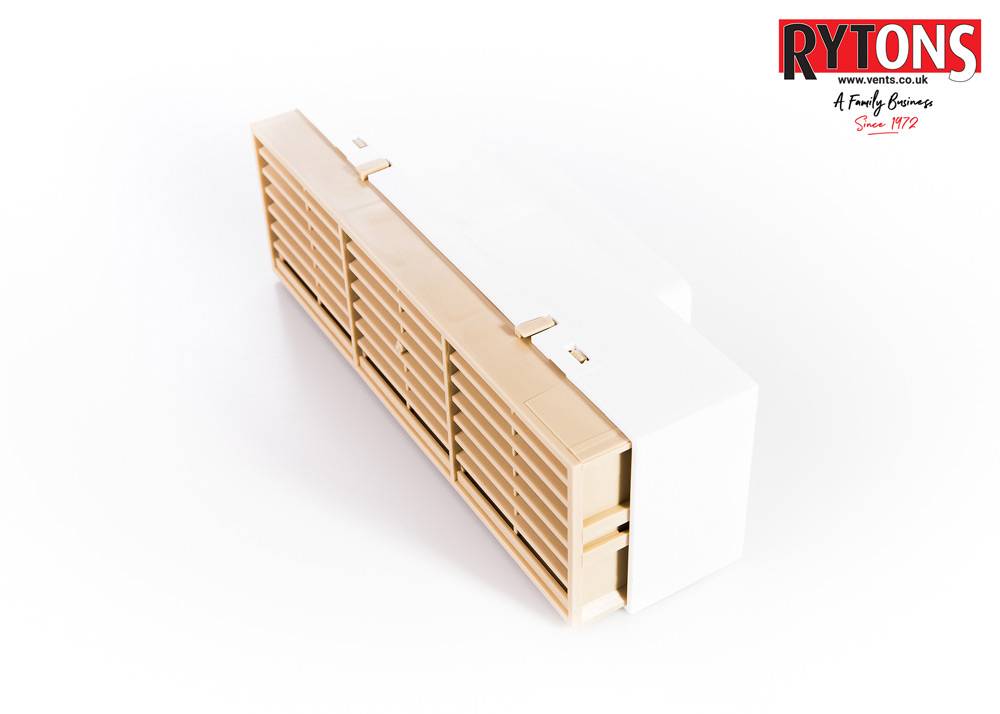

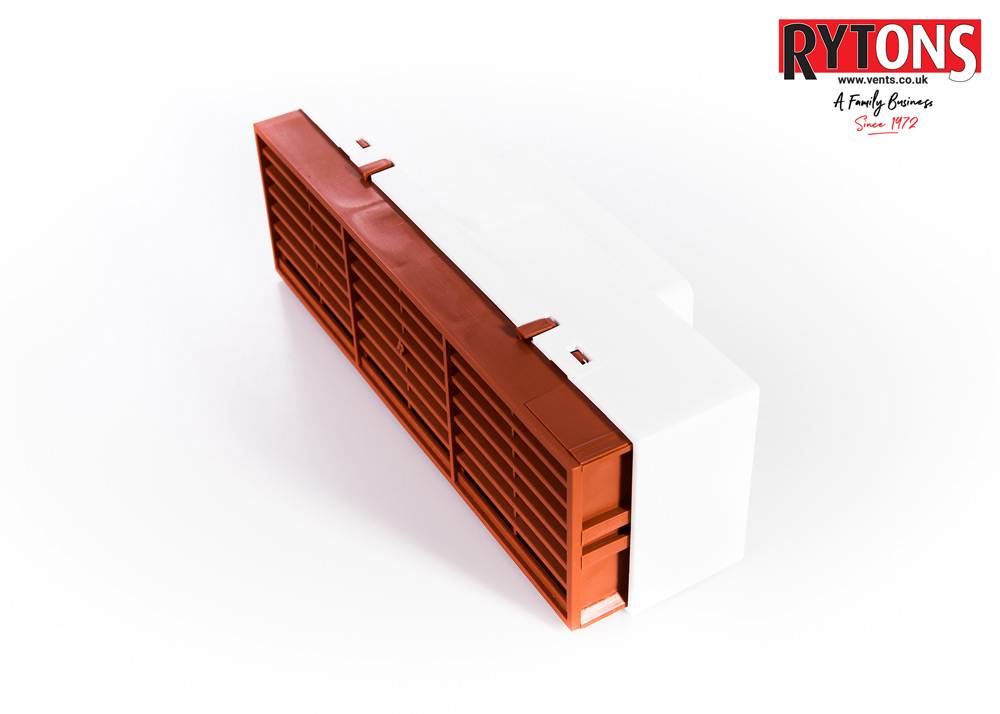

RD4MFAB - Rytons Multifix® Air Brick with Ducting Adaptor 110mm x 54mm

Verified by manufacturer 4 days ago

RD4MFAB – Rytons Multifix® Air Brick with Flat Channel Ducting Adaptor (110mm x 54mm Range)

Rytons Building Products Ltd Variant:

Plastic air brick with adaptor to connect to rectangular ducting 110 mm x 54 mm (RD4/M).

Jump to:
+44 (0)1536 511874 Website

Application

  • Suitable for internal and external use.
  • These items are plastic components, and therefore not suitable for use within the external walls of high-rise buildings.

Description

Plastic air brick with a specially designed adaptor to connect to Flat Channel Duct RD4/M.


Features and benefits:

  • Supplied as a single unit ready for use.
  • Available in a range of seven colours to maintain the external aesthetic appearance.
  • Multifix® Air Brick UV-stabilized to slow down the effects of sunlight.
  • Part of Rytons 100 mm (110 x 54 mm) RytDuct® Range.
  • For applications requiring lower extraction rates such as bathrooms, WCs and cooker hoods.
  • For use with cooker hoods and extraction fans with a maximum output of 250 m³/hour.
  • Suitable for working temperatures of -20 to +60ºC.


Components:

Rytons Multifix® Air Brick with Flat Channel Ducting Adaptor (RD4MFAB).


Compatible components:

  • Rytons Flat Channel Duct 110 mm x 54 mm x 1 m L RD41M.
  • Rytons Flat Channel Duct 110 mm x 54 mm x 2 m L RD42M.

General information

Color

Black

Brown

Cream

Orange

White

Material

Plastic

Guidance for specification option:

UV-stabilized polypropylene.

Uniclass

Pr_35_90_50_03 AirbricksPrimary

CAWS

F30/15 Airbricks in external walling

F30/160 Airbricks in external walling

Specification data - Airbricks

Classification data

Work sizes

110 x 54 mm.

Material

-

Colour

Black.

Guidance for specification option:

RD4MFABBL.

Blue/ Black.

Guidance for specification option:

RD4MFABB.


Brown.

Guidance for specification option:

RD4MFABDB.

Buff/ Sand.

Guidance for specification option:

RD4MFABBB.

Terracotta.

Guidance for specification option:

RD4MFABTC.

Free area

4,794 mm².

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Plastic

Guidance for specification option:

UV-stabilized polypropylene.
