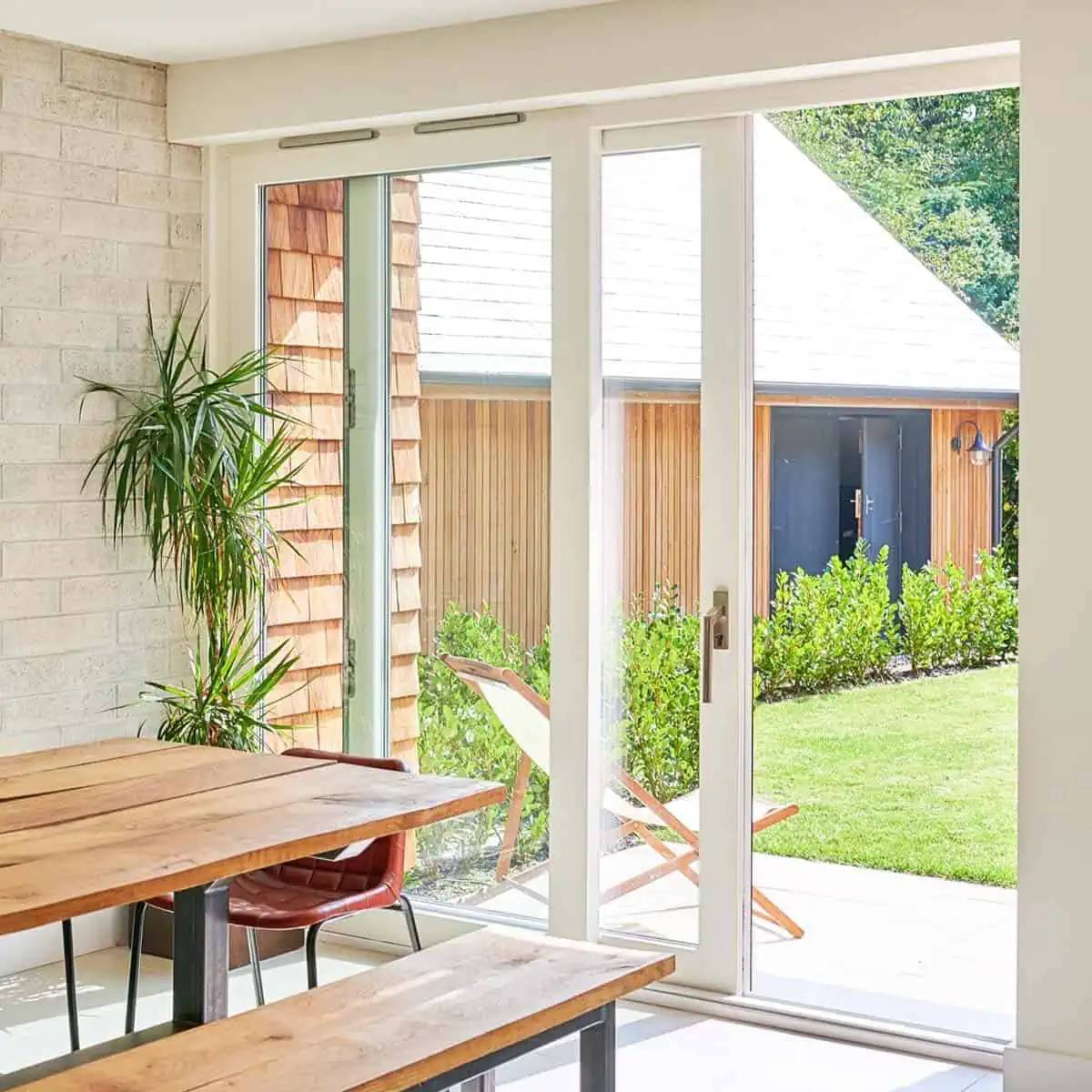

Rationel AURAPLUS® Sliding Casement Door - Sliding Exterior Patio Doors

Name: Rationel AURAPLUS® Sliding Casement Door - Sliding Exterior Patio Doors
Brand: Rationel Windows
SKU: 3bcpiZ5nJ6x7WbBDvH1NjK

Verified by manufacturer 4 months ago

Rationel Windows

Third party certifications:

QA Certificate
Certificate type
BM Trada
Certificate type
Secured By Design
Certificate type
Qualicoat approval
Certificate type

Composite wood/ aluminium sliding casement doors.

Jump to:

+44 (0)1480 759511 Website

Application

For new-build and refurbishment projects.

Description

Composite wood/ aluminium sliding casement doors.

Features and benefits:

Available as triple glazed only.
Unique profile characterized by clean lines and a sleek frame, with additional aluminium cladding.

Vision glazing:

Doors delivered pre-glazed with 36 mm and 42 mm toughened/ laminated glass where required, allowing for 6.8 mm laminate where Secured by Design is required.
Insulating glass units conform to: BS 952 Glass for glazing – Part 1: Classification.
BS EN 572 Glass in building – Basic soda lime silicate glass products – Part 2: Float glass.
BS EN 12150 Glass in building – Thermally toughened soda lime silicate safety glass – Part 1: definition and description.
BS EN ISO 12543 Glass in building – Laminated safety glass.
BS EN 12600 Specification for impact performance.
BS EN 1279 Glass in building – Insulating glass units.
BS 6262 Code of practice for glazing for buildings.
BS 6206 Specification for impact performance requirements for flat safety glass and safety plastics for use in buildings.
BS EN 6180 Barriers in and about buildings – Code of practice.

General information

Color	- Manufacturer guidance Available in a wide range of colours.
Finish	Powder-coated Anodized Painted
Material	Wood Aluminium Glass
Shape	Rectangle Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Five year

Uniclass	Pr_30_59_24_16 Composite doorsetsPrimary Ss_25_30_20_77 Sliding doorset systems
CAWS	L20/55 Doorsets L20/480 Doorsets

Specification data - Composite doorsets

Standard	To EN 14351-1:2006 + A2:2016.
Configuration	As drawing. As schedule. Other. Manufacturer guidance All units are bespoke please contact manufacturer to discuss, and insert requirements. Include details such as glazing bars for fully-glazed doors, vision panels, partially-glazed panels etc.
Doorset size	As drawing. As schedule. Other. Manufacturer guidance All units are bespoke please contact manufacturer to discuss, and insert requirements. Minimum/ maximum sizes may vary depending on door type/ function required e.g. terrace doors, entrance doors, windows doors, panelled doors.
Performance	-
Acoustic performance	Guidance for specification option: Consult manufacturer and insert requirements.
Strength and durability	Operating forces to EN 12046-1/ EN 13115 Class 1; EN 1191/ EN 12400 Repeated open/close, 50 000 cycles: Class 4. Guidance for specification option: Repeated open/close 50000 cycles - Class 4.
Thermal	Dependent on configuration. Guidance for specification option: As low as 0.99 W/m²K. Consult manufacturer.
Intruder resistance	-
Minimum requirement	Not required. To PAS 24 and Secured by Design. Guidance for specification option: On request.
Conformity	Certification by accredited third party certification body. Guidance for specification option: Consult manufacturer for certification/ testing details.
Frame	-
Materials	Wood core with aluminium sleeve. Guidance for specification option: Aluminium extrusion alloy EN AW-6060 or EN AW-6063 externally and Timber internally.
Threshold	25 mm aluminium/ composite threshold.
Finish	Manufacturer's standard. Guidance for specification option: Aluminium (external): Polyester powder coat in compliance with BS EN 6496, BS EN 6497, & DIN 50939 with applicators to be registered under the European Qualicoat and/or GSB quality assurance schemes. Timber frame: Water-based diffusion open timber surface treatment system consisting of multiple layers. Three layer coating system: Impregnation/ priming/ top coat. Surface treatment system meets EN 113, EN 152 and EN 927 Surface treatment system contains antifungal and anti-rot fungicides. Top coat meets EN 927-6 in terms of UV-protection. Total thickness on visible surfaces is 100 μm ±20. For covering colours gloss is 20% ±5. System meets Danish Indoor Climate certification.
Colour	External: RAL. Guidance for specification option: RAL colours from the Classic K7 range. Polyester powder-coated. Guidance for specification option: Polyester powder coated - RAL colours from the Classic K7 range, Granite, NCS range, consult manufacturer for options and insert requirements. Bronze, anodized. Silver, anodized.
Film thickness (minimum)	60–120 μm.
Door leaf	-
Thickness	68 mm sliding sash and 60 mm standing sash.
Panel details	Made up of 4.5 mm veneer/0.3 mm alu/1.5 mm veneer/XPS/1.5 mm veneer/0.3 mm alu/4.5 mm veneer.
Glazing	-
Type	In accordance with BS 6262-4, both clear 42 mm and 36 mm triple glazing.
Beading	-
Type	External.
Material	Aluminium alloy. Guidance for specification option: Aluminium alloy EN AW-6060 or EN AW-6063 in accordance with EN 755-2.
Fixing	Screwed/ screw and clips.
Colour	-
External	To match frame. Colour. Guidance for specification option: RAL colours from the Classic K7 range; Granite range; NCS range; Silver Anodized; Bronze Anodized. Consult manufacturer for options and insert requirements.
Internal	As External. Colour. Guidance for specification option: Insert requirements: Flush doors: RAL colours from the Classic K7 range. Glazed doors: RAL colours from the Classic K7 range; Granite range; NCS range; Silver Anodized; Bronze Anodized. Consult manufacturer for options and insert requirements.
Door accessories	- Manufacturer guidance A wide range of accessories are available, consult manufacturer and insert requirements.
Hardware	Guidance for specification option: Consult manufacturer for options and insert requirements.

Air permeability	Generally 300 Pa to BS EN 1026/ BS EN 12207 Class 2. Guidance for specification option: Refer to manufacturer's literature (DoP) for details.
Watertightness	Generally 200 Pa to BS EN 1027/ BS EN 12208 class 5A Guidance for specification option: Refer to manufacturer's literature (DoP) for details.
Wind load resistance	Generally 1600 Pa to BS EN 12211/ BS EN 12210 class C4. Guidance for specification option: Refer to manufacturer's literature (DoP) for details.
Third party accreditation	PAS 24:2022. Secured by Design. Q-Mark product certification. BM TRADA certified. Danish window verification and indoor climate label.

Sustainability data

Country of material origin	Denmark
Country of product manufacture	Poland
Material	Wood Aluminium Glass

BIM objects

Platform	Compatible	Version
Revit	-	1

Third party certifications

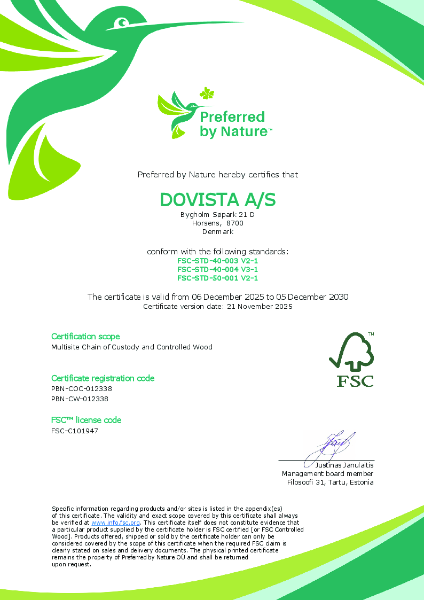

QA Certificate

FSC® certified wood

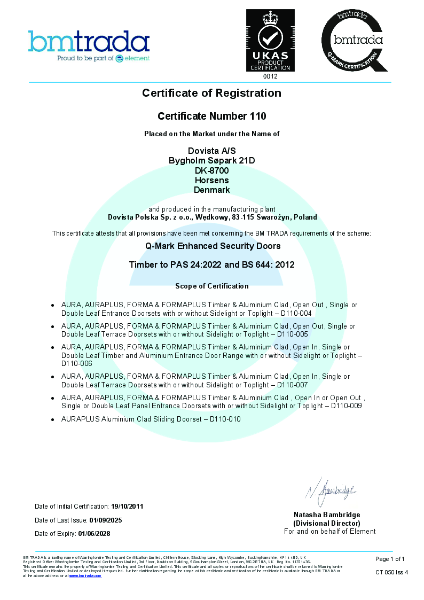

BM Trada

Q-Mark Enhanced Security Door scheme

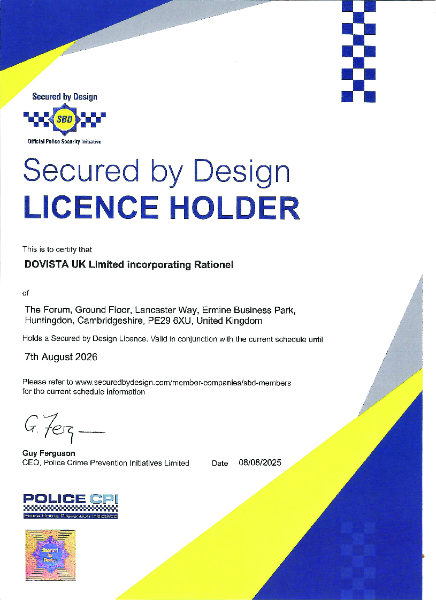

Secured By Design

Secured by Design certificate

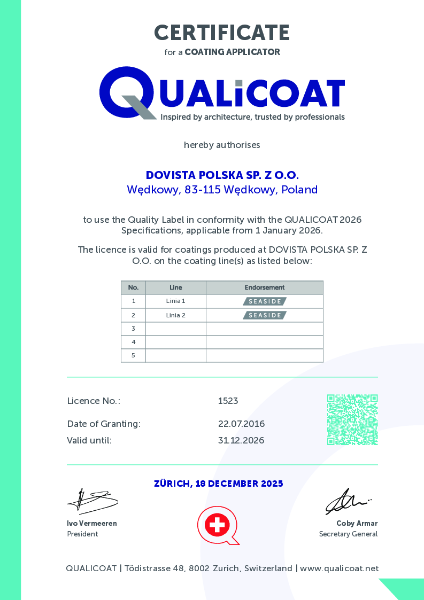

Qualicoat approval

Certificate for a Coating Applicator

Case studies

Firecroft house - Essex
