Rationel AURAPLUS IO® Inward Opening Doors

Verified by manufacturer 2 months ago

Rationel Windows

Composite inward opening doors, suitable as Juliette doors for French balconies in multi-storey buildings. Designed to allow safe cleaning of the door from the inside.

Jump to:
+44 (0)1480 759511 Website

Application

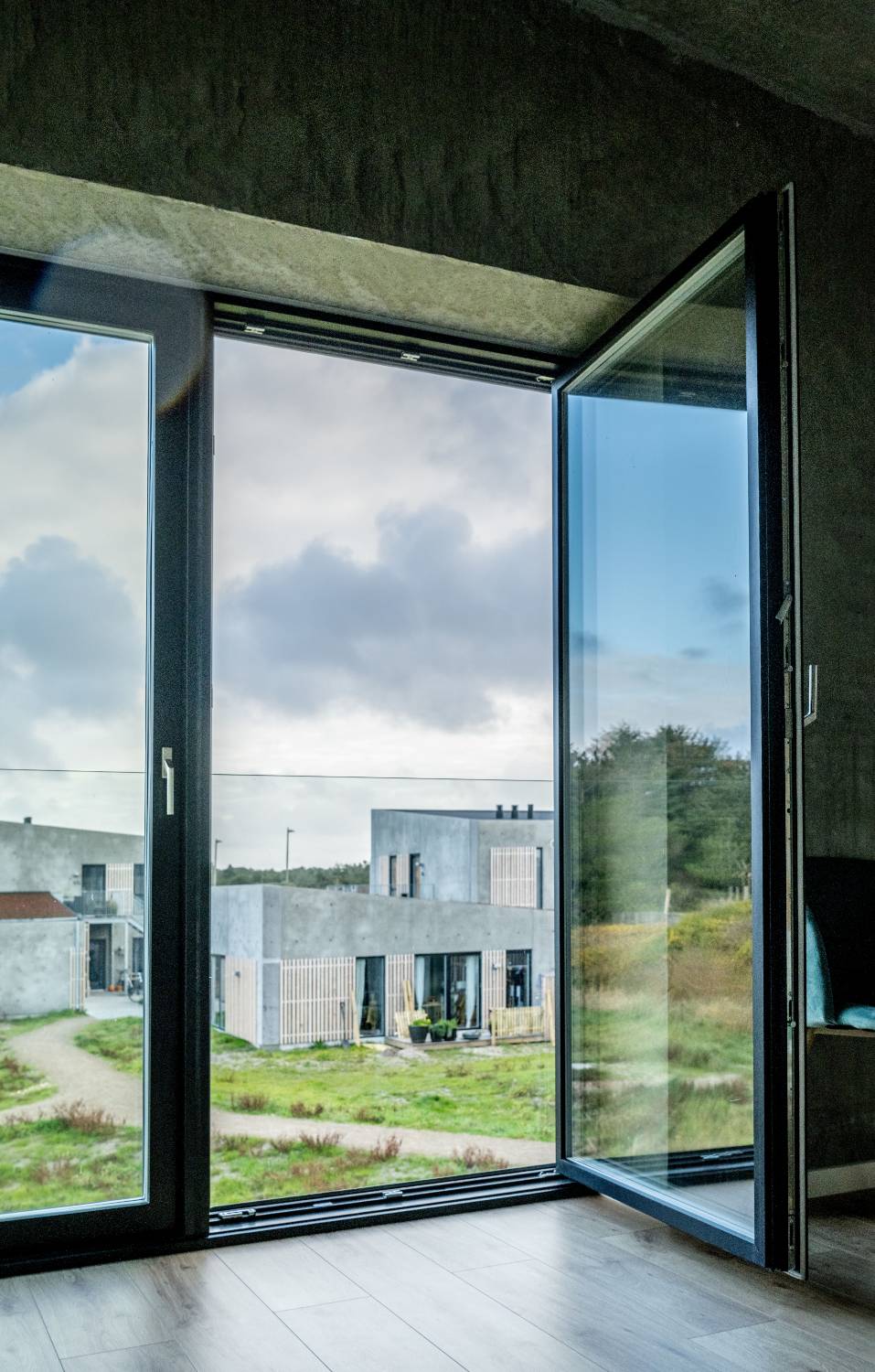

Suitable as Juliette doors for French balconies in multi-storey buildings. Designed to allow safe cleaning of the door from the inside.


Description

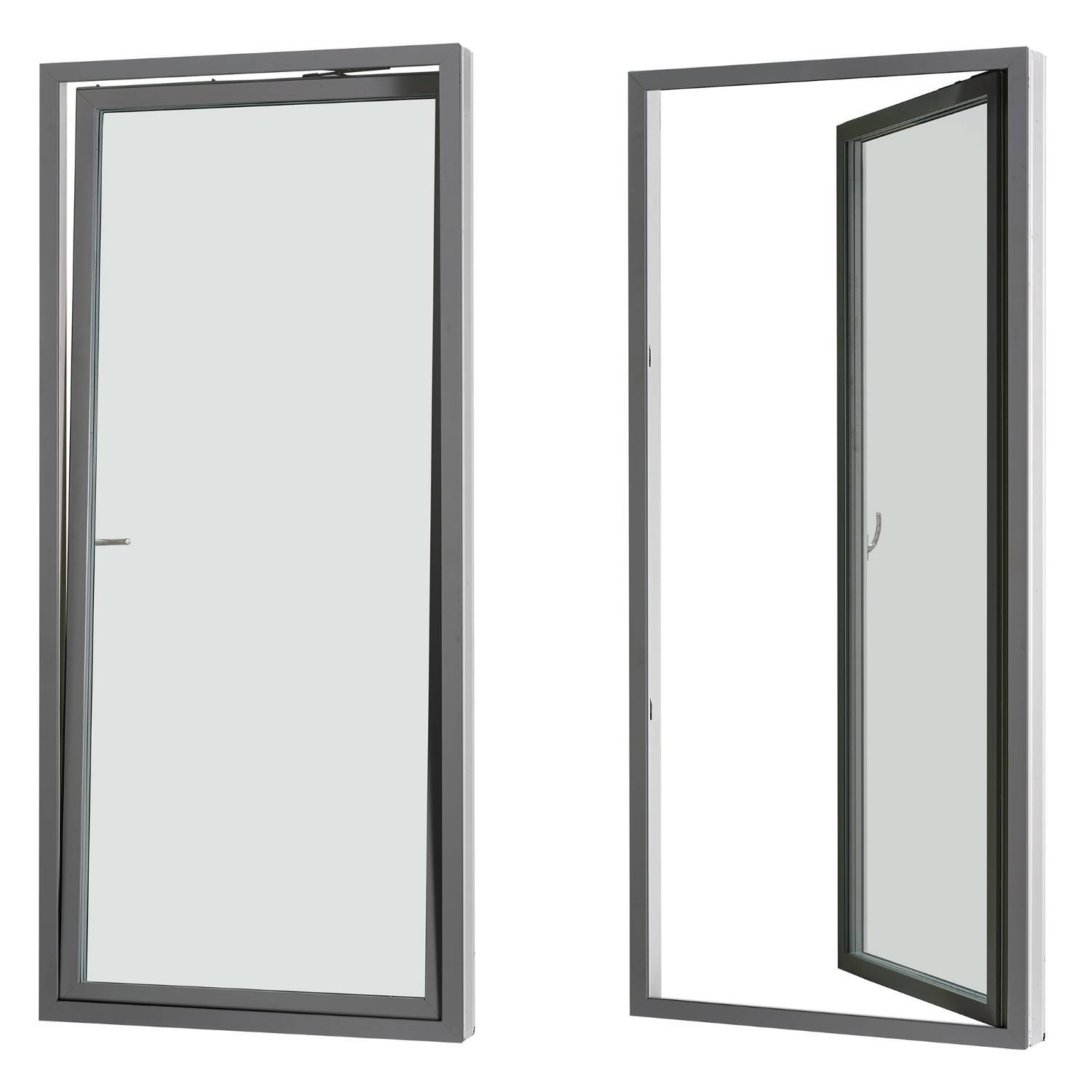

Composite timber/ aluminium tilt and turn casement door with 48 mm triple glazing, suitable as Juliette doors for French balconies in multi-storey buildings.


Features and benefits:

  • Tilt function provides a ventilation gap of 30 mm (approximately).
  • Designed to allow safe cleaning of the door from the inside.
  • Inward opening of up to 90º.
  • Available with safety barrier preparation.
  • Composite finish, with aluminium externally and natural wood internally.
  • The threshold is supplied in mahogany for extra durability.
  • The aluminium sash is durable and should not require repainting.
  • The sash provides a ventilation gap at the head.
  • Manufactured in accordance with EN 14351-1.
  • Tested in accordance with BS 6375-2.

General information

Finish

Anodized

Powder-coated

Material

Aluminium

Guidance for specification option:

Extrusion alloy EN AW-6060 or EN AW-6063.

Wood

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Five year

Uniclass

Pr_30_59_24_16 Composite doorsetsPrimary
Ss_25_30_20_25 Doorset systems

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Composite doorsets

Standard

External non-fire rated composite doorset UKCA marked in accordance with BS EN 14351-1:2006 and A2:2016.

Configuration

Guidance for specification option:

All units are bespoke please contact manufacturer to discuss, and insert requirements.

Doorset size

Guidance for specification option:

Contact manufacturer to discuss, and insert requirements.

Performance

-

Acoustic performance

To BS EN ISO 717-3, sound reduction index Rw 33–46.

Thermal

0.79 W/m²K.

Intruder resistance

-

Minimum requirement

To PAS 24.

Frame

-

Materials

Wood core with aluminium sleeve.

Guidance for specification option:

93 mm aluminium external profile coupled with timber mainframe.

Threshold

49 mm.

Door leaf

-

Thickness

93 mm.

Guidance for specification option:

Aluminium profile - contact manufacturer for further information.

Panel details

Glazed panels.

Guidance for specification option:

Consult manufacturer for details.

Sandwich panels.

Guidance for specification option:

Consult manufacturer for details.

Glazing

-

Type

In accordance with BS 6262-4, clear triple safety glazing.

Guidance for specification option:

For systems comprising triple glazing only.

Beading

-

Type

External.

Finish

Powder coated to BS 6496.

Guidance for specification option:

Also in compliance with BS EN 6496, BS EN 6497, & DIN 50939 with applicators to be registered under the European Qualicoat and/or GSB quality assurance schemes.

Anodized.

Colour

-

External

RAL.

Guidance for specification option:

Polyester powder coated - RAL colours from the Classic K7 range, Granite, NBS range, consult manufacturer for options and insert requirements.

Bronze.

Guidance for specification option:

Anodized.

Silver.

Guidance for specification option:

Anodized.

Internal

Water-based diffusion open timber surface treatment system.

Guidance for specification option:

Two layer coating system (impregnation/priming and top coat).


The surface treatment system meets EN113, EN152 and EN927. The surface treatment system contains antifungal and anti-rot fungicides.

The topcoat meets EN927-6 in terms of UV-protection.

The total thickness on visible surfaces is 100μ +/-20.

For covering colours gloss is 20 +/-5.

  • The system meets Danish indoor climate certification.

Hardware

Espagnolette locking system.

Handle with lock.

Key operated turn function.

Accessories

None.

Preparation for barrier solution (barrier not supplied).

Execution

Installing hardware.

Bead Colour

Guidance for specification option:

Consult manufacturer and insert requirements.

Watertightness

To BS EN 1027, 900 Pa.

Guidance for specification option:

 Class E900 to BS EN 12208.

Resistance to wind load

To BS EN 12211, 1200 Pa.

Guidance for specification option:

To BS EN 12210, class 3C.

Security

Compliant with Part Q of the Building Regulations.

Glazing bar

31 mm energy glazing bar.

54 mm energy glazing bar.

60 mm glazing bar.

Third-party certification

Danish window verification and indoor climate label.

Guidance for specification option:

PAS 24 tested.

Sustainability data

Country of material origin

Denmark

Country of product manufacture

Denmark

Material

Aluminium

Guidance for specification option:

Extrusion alloy EN AW-6060 or EN AW-6063.

Wood

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

kg CO₂ eq/kg

Self declared

Guidance for specification option:

Consult manufacturer.

Recyclability

Guidance for specification option:

Consult manufacturer.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

%

Guidance for specification option:

Consult manufacturer.

BIM objects

Platform Compatible Version
Revit
-

1
