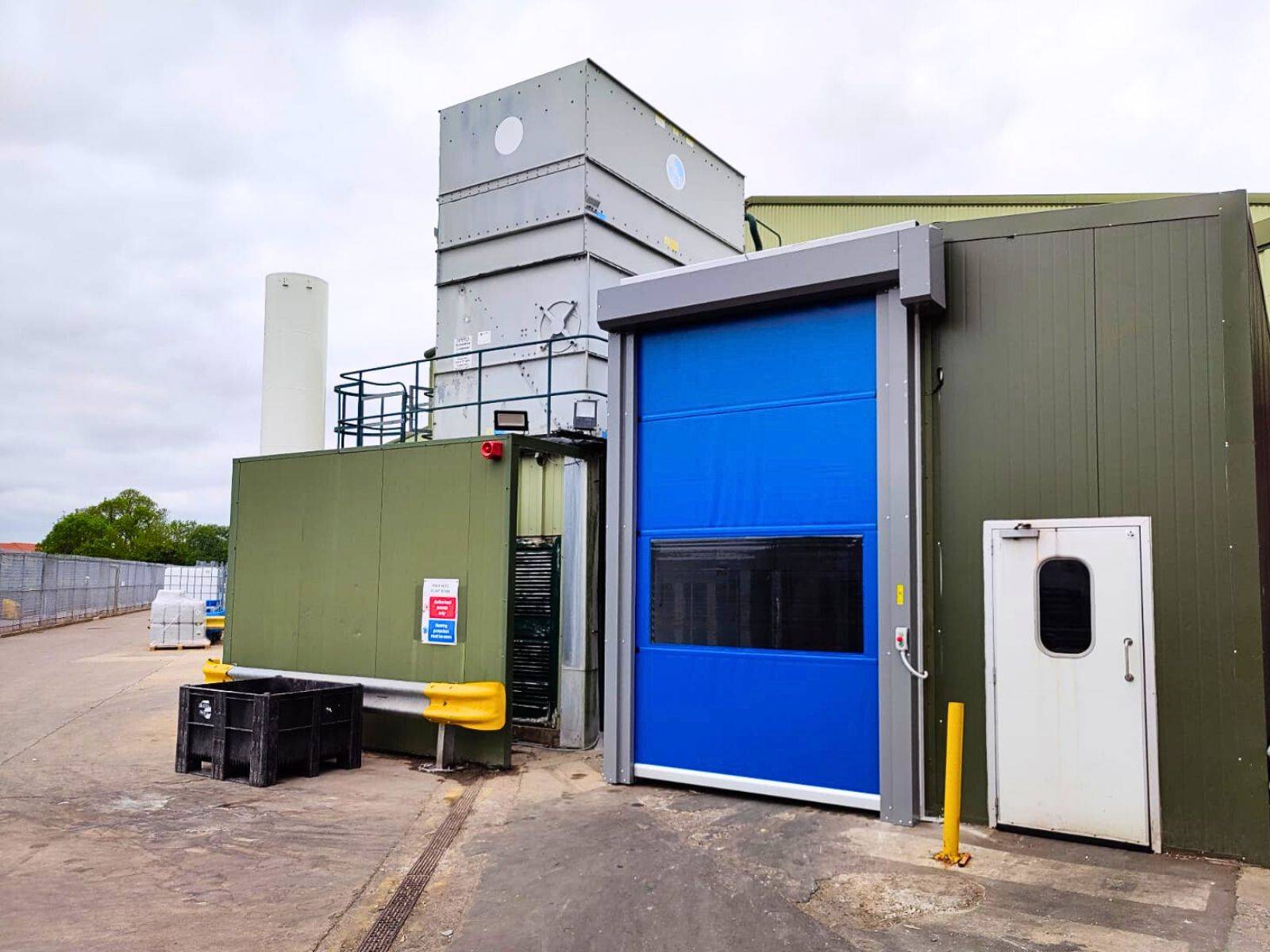

Rapidor Pro - External Speed Door

Verified by manufacturer 1 month ago

Tekta UK

The Rapidor Pro is a specialist high-speed door, specifically designed for high wind environments, with a spring-balanced tensioning system to ensure the door operates smoothly in all conditions.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Loading areas.
  • Warehouse doors.
  • External airlocks.
  • Distribution centres.

Description

The door has been extensively tested to ensure reliability in all conditions and uses spring-steel wind bars and low-friction rollers to give it maximum wind resistance. It also ensures the operation is smooth, quiet and reliable.


To ensure the door will open and close in the high winds, the bottom bar is held under tension by a tensioning spring and driven down by a counterweight as the door closes.


To ensure maximum reliability, the Rapidor Pro is constructed from high-quality 2 mm thick steel. The curtain is manufactured from 1 mm thick PVC with integral wind bars to prevent the curtain from bowing. The Rapidor Pro utilizes superior controls which enables it to operate up to 350 cycles per day.


With an opening speed of 1.5 m/s, the door is faster than most industrial high-speed doors, reducing the risk of impact damage to the door. The Rapidor Pro is available with a range of compatible activation options including radar sensors, induction loops and remote control.


Features and benefits:

  • High-performance external door.
  • Class 4 or 150 km/h wind resistance.
  • High speed opening at 1.5 m/s.
  • Spring balanced tensioning system.

General information

Color

Blue

Grey

Orange

Red

Yellow

Manufacturer guidance

Curtain colour.

Finish

Galvanized

Powder-coated

Material

Stainless steel

Steel

Polyvinyl chloride (PVC)

Shape

Square

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

CAWS

L20/60 Doors

L20/570 High-speed doors

Product range

Rapidor Speed Doors

Specification data - High-speed doorsets

Speed (minimum)

-

Opening

1.5 m/s (maximum).

Closing

0.8 m/s.

Format

Rapid roll up.

Curtain material

PVC.

Frame and guides

-

Material

Galvanized steel.

Powder-coated.

Stainless steel.

Manufacturer guidance

Robust guides constructed from 2 mm thick steel, complete with a spring balanced counter-weight system.

Operation

Remote control.

Radar sensor.

Induction loop.

Pull cord switch.

Accessories

Timed closed: 10 seconds.

Guidance for specification option:

Standard.

Timed closed: 0-200 seconds.

Standards

To EN 12424, EN 12453 and EN 12604.

Power supply

Three-phase 400 V (Max 10 A).

Single-phase 230 V (Max 16 A).

Guidance for specification option:

Only for doors up to 9 m².

Dimensions

-

Manufacturer guidance

Size (w x h): 6000 x 5000 mm.

Emergency release

Manual lever hand-crank device.

Curtain colour

RAL9010.

RAL1015.

RAL1003.

RAL2009.

RAL3002.

Show more

Vision panels

500 mm high vision panel.

Guidance for specification option:

Standard.

None.

Sound insulation

15 dB Rw (ISO 717).

Safety devices

Light curtain safety sensor and flashing warning beacon.

Audio warning siren.

Red/Green traffic lights.

Count-down traffic lights.

ThermalTransmittance

To EN 12428 6.02 W/m²K.
