Rapidor Dupli - High Speed Door combined with an insulated Roller Shutter

Verified by manufacturer 6 months ago

Tekta UK Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

A high-speed door solution for applications where both insulation and security are both required. Combining a PVC high speed door with an insulated roller door.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Food production facilities.
  • Pharmaceutical facilities.
  • Distribution.
  • Warehouse.
  • External openings.

Description

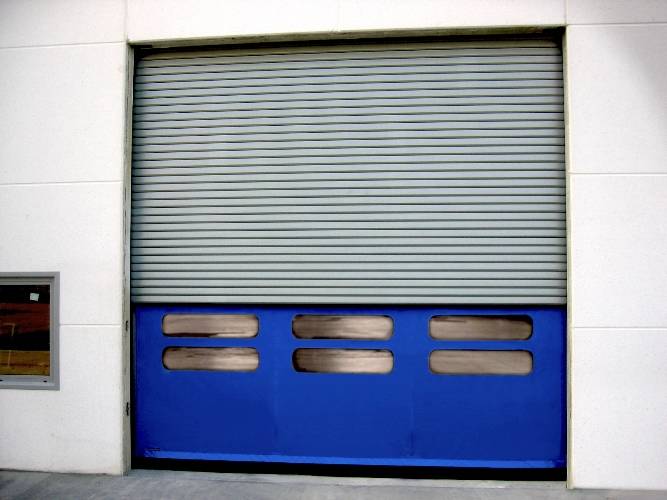

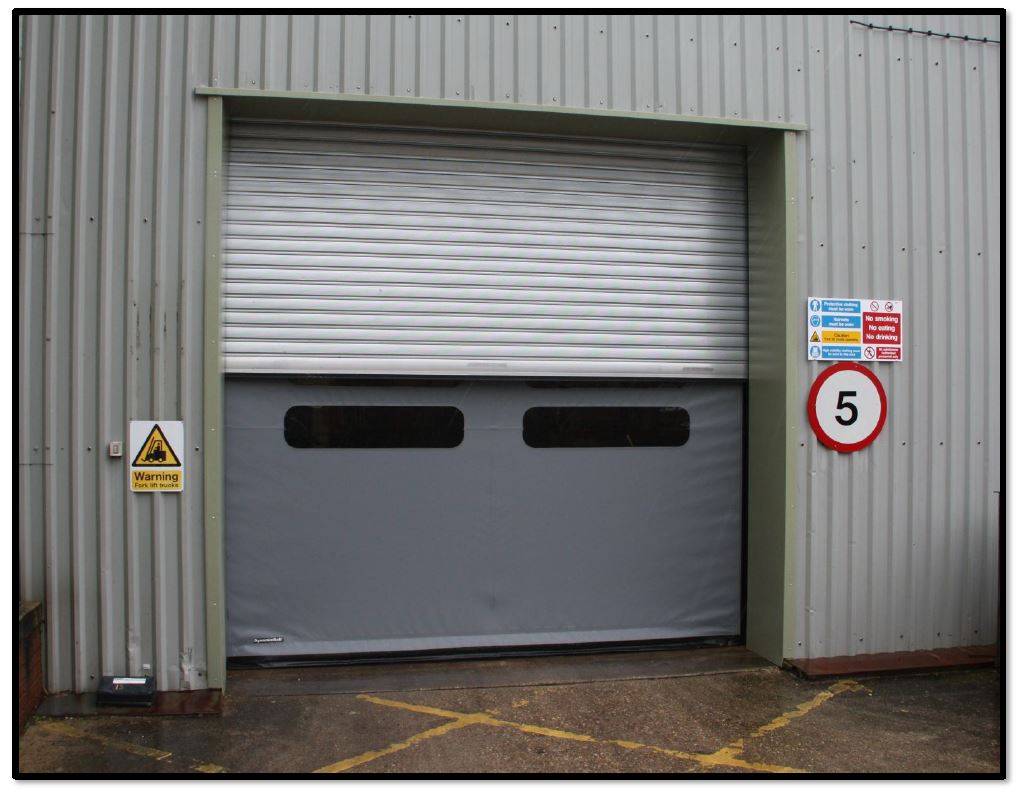

The Rapidor Dupli is a high speed, self-repairing door range, specifically designed for high use external doorways where both a hygiene barrier and security barrier are required.



The speed door offers a quiet and reliable operation and is available with opening speeds up to 2.5 m/s, maximizing efficiency.



With its zipper edge curtain, the speed door gives an excellent seal. This feature, combined with the door’s soft bottom edge enables the curtain to self-repair in the event of an impact, reducing maintenance and repair costs.



The insulated steel roller shutter is designed to be closed during times where the door opening is not in frequent use, to provide an effective security and thermal barrier.



Available with a variety of safety features, such as; light curtains, traffic lights and audio warnings this range is tested to fully comply with the relevant European safety standards. The doors can be operated by; radar sensor, induction loop, remote control or pushbutton and can be interlocked to suit specific requirements.


Features and benefits:

  • Combination door design.
  • Effective security for external openings.
  • Superior hygiene/ temperature control barrier.
  • Impact-resistant and self-repairing.

General information

Color

Blue

Brown

Grey

Green

Ivory

Show more

Manufacturer guidance

Curtain colour.

Finish

Galvanized

Powder-coated

Material

Steel

Polyvinyl chloride (PVC)

Shape

Square

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

CAWS

L20/570 High-speed doors

Specification data - High-speed doorsets

Speed (minimum)

-

Opening

2.5 m/s.

Closing

0.8 m/s.

Format

Rapid roll up.

Arrangement

Face-fitted across opening.

Curtain material

Polyurethane filled, double walled steel lath.

Frame and guides

-

Material

Galvanized steel.

Guidance for specification option:

Standard.

Powder-coated.

Guidance for specification option:

Optional.

Manufacturer guidance

Two-part steel guide with a self-lubricating polyethylene

runner.

Operation

Remote control.

Guidance for specification option:

Standard.

Proximity sensors.

Guidance for specification option:

Optional.

Key switch.

Guidance for specification option:

Optional.

Radar sensor.

Induction loop.

Pull cord.

Push button.

Standards

To EN 13241, EN 12604, EN 12426 Class 3, EN 12425 Class 1, EN 12424 up to Class 4. BS EN 13241-1, BS EN 10077-1, BS EN 10346, BS EN 13523, BS EN 12453.

Power supply

240 V single phase.

Guidance for specification option:

Available for doors up to 3000 x 3000 mm.

415 V three phase.

Safety

Light curtain safety sensor and flashing warning beacon.

Guidance for specification option:

As standard.

Audio warning siren.

Guidance for specification option:

Optional.

Red/Green traffic lights.

Guidance for specification option:

Optional.

Count-down traffic lights.

Guidance for specification option:

Optional.

Push-to-run.

Show more

Air permeability

Class 1.

Resistance to water penetration

Up to Class 3.

Dimensions

-

Manufacturer guidance

Size (w x h, maximum): 4500 x 4500 mm.

Emergency release

Hand Crank.

Guidance for specification option:

Standard.

Battery backup.

Guidance for specification option:

Optional.

Curtain colour

RAL 9010.

RAL 1015.

RAL 1003.

RAL 2004.

RAL 3002.

Show more

Wind loads

Up to Class 4.

Vision panel

500 mm high rectangular vision window.

Perspex vision window inserts.

Sustainability data

Material

Steel

Polyvinyl chloride (PVC)

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

CHAS

CHAS

CHAS Certificate

Literature

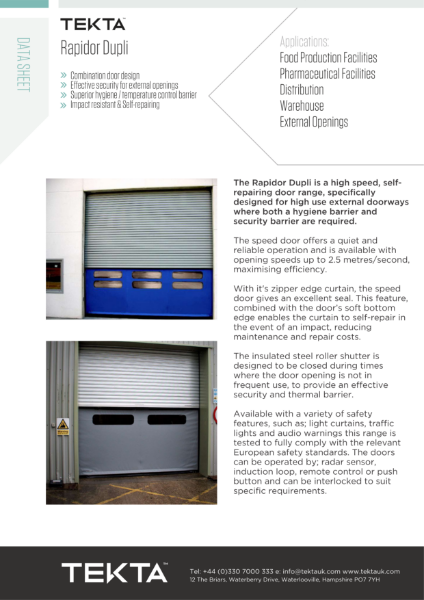

Rapidor Dupli- Speed Doors - Data Sheet
