Rapidor Sprint - Bi-Parting Speed Door

Verified by manufacturer 5 months ago

Tekta UK Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

Rapidor Sprint is a unique speed door which rolls horizontally to one or both sides of the doorway. Available with a Class 2 wind rating.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Factories and warehouses.
  • Temperature controlled facilities.
  • Automotive and aerospace.
  • Atex rated areas.
  • Wash-down areas.
  • High use openings.

Description

Rapidor Sprint is constructed with a self-supporting galvanized steel frame which requires less than 300 mm of headroom. The antistatic PVC door curtain can be configured to open to one side of the doorway, or to bi-part from the centre of the doorway for larger openings. There are a choice of five standard colours and the option of eye-level or full-height transparent vision windows. The door can also be supplied with an optional anti-crash system designed to swing away on impact, minimizing ongoing maintenance costs.


Power supply can be 230 or 400 V and a frequency inverter motor provides smooth and reliable operation and speeds of up to 3000 mm per second.


The Rapidor Sprint door is adaptable to specialist requirements, for example, the door frame can be constructed from stainless steel making it suitable for food and pharmaceutical environments with the option of full wash-down.


A variety of safety features are available, such as; photo beams, safety edges, light curtains and traffic lights to comply with all European standards. The doors can be operated by; radar sensor, induction loop, remote control or push button and can be interlocked to suit specific requirements.


Features and benefits:

  • Extremely fast operation.
  • Maximum productivity.
  • Bi-Parting operation reduces damage.
  • Large vision windows for safety.
  • Non-drip design for better hygiene.
  • Springless, low-maintenance door.

General information

Color

Manufacturer guidance

Curtain colour.

Finish

Galvanized

Powder-coated

Material

Stainless steel

Steel

Polyvinyl chloride (PVC)

Polyethylene

Shape

Square

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

CAWS

L20/570 High-speed doors

Product range

Rapidor Speed Doors

Specification data - High-speed doorsets

Speed (minimum)

-

Opening

3.0 m/s (maximum).

Closing

1.0 m/s (maximum).

Format

Rapid bi-parting.

Arrangement

Face-fitted across opening.

Curtain material

PVC, 1.5 mm antistatic, B2 Flame Retardant.

PVC, 1 mm printed curtain.

Guidance for specification option:

Up to width 2.9 m.

Frame and guides

-

Material

Galvanized steel.

Stainless steel.

Finish and colour

Powder coated.

As material.

Operation

Push button.

Guidance for specification option:

Standard.

Key switch.

Guidance for specification option:

Optional.

Remote control.

Guidance for specification option:

Optional.

Motion sensor.

Guidance for specification option:

Optional.

Magnetic floor loops.

Guidance for specification option:

Optional.

TOF sensor.

Guidance for specification option:

Optional.

Pull cord.

Guidance for specification option:

Optional.

Contactless switch.

Guidance for specification option:

Optional.

Accessories

Not required.

Mechanical or electronic locking.

Cut out for hanging rails or conveyors.

ATEX Rated for areas with explosion risk.

Interlocking.

Anti-crash system.

Standards

To BS EN 13241.

Control panel

Microprocessor control with main switch and integrated frequency inverter. Complete with menu view and error display. Emergency stop and three way push button integrated in IP54 cabinet.

Power supply

230 V single phase, L, N, PE (16 A maximum).

Guidance for specification option:

Standard.

415 V three phase.

Guidance for specification option:

Optional.

Safety

Self-monitoring electrical safety contact edge and photocell.

Guidance for specification option:

As standard.

Light curtain.

Guidance for specification option:

Optional.

Flashing light.

Guidance for specification option:

Optional.

Second light curtain.

Guidance for specification option:

Optional.

Traffic light.

Guidance for specification option:

Optional.

Dimensions

-

Manufacturer guidance

Size ( w x h): 6000 x 8000 mm. Insert requirements. Special sizes may be available on request.

Battery back-up

Not required.

UPS battery.

Emergency release

Open by hand.

Guidance for specification option:

Standard.

Automatic opening to provide 2000 mm wide clear passage (via UPS).

Guidance for specification option:

Optional.

Curtain colour

RAL 5010 Gentian Blue.

Guidance for specification option:

Standard.

RAL 1018 Zinc Yellow.

Guidance for specification option:

Optional.

RAL 2004 Pure Orange.

Guidance for specification option:

Optional.

RAL 3002 Carmine Red.

Guidance for specification option:

Optional.

RAL 7038 Agate Grey.

Guidance for specification option:

Optional.

Wind resistance

To EN 12424, Class 2.

Motor cover

None.

Guidance for specification option:

Standard.

Hood cover and/ or motor cover, galvanized steel.

Guidance for specification option:

Insert requirement.

Hood cover and/ or motor cover, stainless steel.

Guidance for specification option:

Insert requirement.

Clearance width

416 – 25 mm.

Guidance for specification option:

Insert requirement.

RequiredHeadroom

255 – 281 mm.

Guidance for specification option:

Insert requirement.

Motor

Frequency inverter motor, front-mounted, left handed.

Frequency inverter motor, front-mounted, right handed.

Sustainability data

Material

Stainless steel

Steel

Polyvinyl chloride (PVC)

Polyethylene

Third party certifications

Third party certifications

CHAS

CHAS

CHAS Certificate

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

Literature

Rapidor Sprint Datasheet

Rapidor Sprint Datasheet

Similar products from Tekta UK

Rapidor Chill - Insulated Chiller Speed Door

Rapidor Chill - Insulated Chiller Speed Door

Rapidor Dupli - High Speed Door combined with an insulated Roller Shutter

Rapidor Dupli - High Speed Door combined with an insulated Roller Shutter

Rapidor Fold - Durable External Speed Door

Rapidor Fold - Durable External Speed Door

Rapidor Food - Self-repairing Food Grade Speed Door

Rapidor Food - Self-repairing Food Grade Speed Door

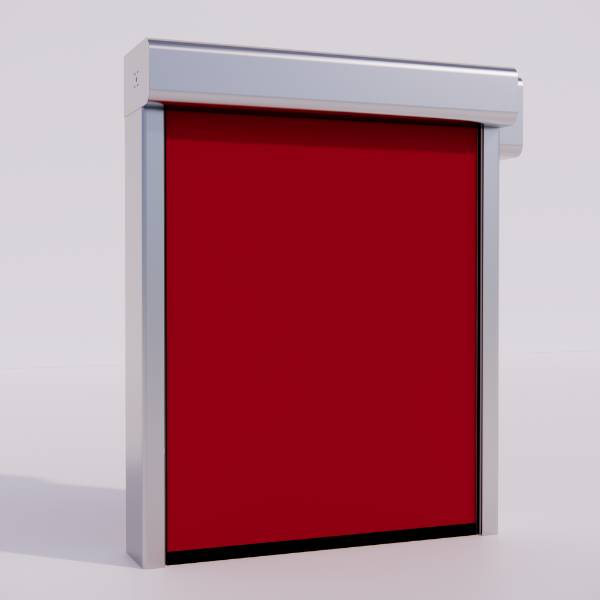

Rapidor Freeze - Dual Curtain Cold Room Speed Door

Rapidor Freeze - Dual Curtain Cold Room Speed Door

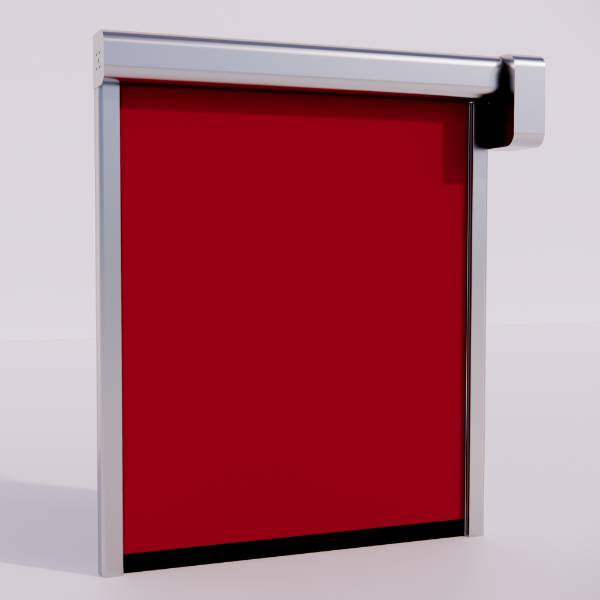

Rapidor Impact – Self-repairing High Speed Door
