3D Tiles S-5.53
Verified by manufacturer 5 months ago
Declare
Certificate type
HPDC Certification
Certificate type
EPD
Certificate type
Moulded wall tile
Application
- Commercial/office spaces
- Retail
- Education
- Hospitality spaces
Description
Equal parts form and function, 3D Tiles are sculptural acoustic tiles designed for interior wall application. Moulded into abstract, three-dimensional shapes, 3D Tiles provide acoustic absorption across the mid to high-frequency range.
Features and benefits:
- Control noise in interior environments and create unique sculptural features
- The hollow design creates an air gap, improving acoustic performance
- Lightweight
- Includes mounting clips for easy install
- Available in eight designs
- Easily customisable
- Carbon neutral
- Made locally
General information
Color | Beige Black Blue Cream Gold |
Finish | Smooth |
Material | Polyester fibre (PET) Guidance for specification option: Polyester fibre (PET). |
Shape | Square |
Warranty description | Ten year |
Uniclass | |
CAWS | K40/265 Infill units K40/10 Unit/ modular suspended ceilings |
Specification data - Sound attenuator infill units
Classification data | |
Form | Panel. |
Rigidity | Semi rigid. |
Application | Wall mounting. |
Material | Polyester fibre (PET). |
Acoustic performance | |
Sound absorption | Class C to BS EN ISO 11654. Guidance for specification option: Without Autex AAB backing Class A to BS EN ISO 11654. Guidance for specification option: With Autex AAB backing |
Fire performance | |
Reaction to fire | To BS EN 13501-1, Class B-s1,d0. |
VOC emissions | 0.01 mg/m³. |
Dimensions | |
Size (length x width) | 575 x 575 mm. |
Thickness (overall) | 60 mm. |
Profile | Geometric profile. |
Edges | Square. |
Surface pattern | Solid. |
Colour | Avocado. Bark. Blazing red. Blush. Brilliant orange. Charcoal. Civic. Electric blue. Fawn. Granny smith. Noir. Porcelain. Silver. Stately. Stonewash. |
Acoustic performance | 0.75. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Polyester fibre (PET) Guidance for specification option: Polyester fibre (PET). |
A1–A3 ('Production stage') | Embodied carbon as defined in BS EN 15804 |
Normalized unit | 1.87 kg CO₂ eq/kg |
Declared unit | 1.87 kg CO₂ eq/kg Certified Lower emissions |
Recyclability | yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % |
Product certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 4 |
 IFC | - | 4 |
Product certifications
Declare
Declare - 3D Tiles and 3D Ceiling Tiles
HPDC Certification
Health Product Declaration - 3D Tiles and 3D Ceiling Tiles
EPD
Environmental Product Declaration - Cascade™, Cube™, Frontier™, Groove, Horizon™, Lanes™, Lattice™, 3D Ceiling Tiles, 3D Tiles, Grid Ceiling Tiles, Quietspace® Panel, and Vicinity™
Literature
Literature type
3D Tiles Datasheet
3D Tiles Install Instructions
3D Tiles Lookbook

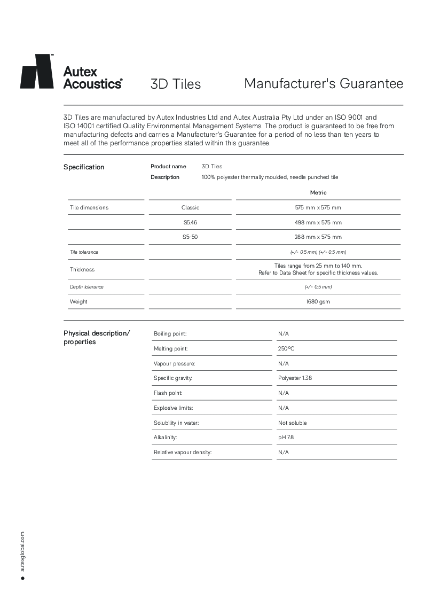

3D Tiles Manufacturers Warranty
Colour Guide
