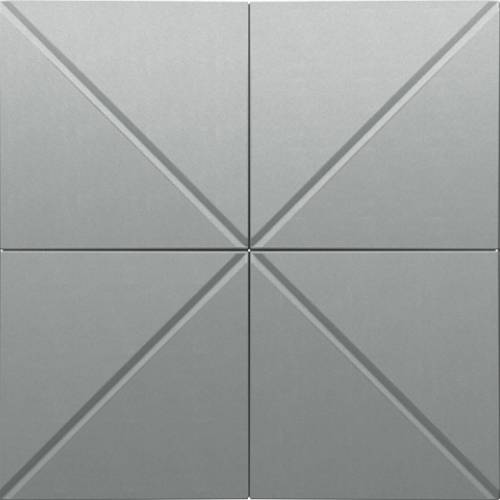

3D Wall Tiles S-5.53

Verified by manufacturer 3 months ago

Autex Acoustics Ltd Third party certifications:
  • Declare

    Declare

    Certificate type

  • HPDC Certification

    HPDC Certification

    Certificate type

Moulded wall tile

Jump to:
BOS
 +44 (0)1422 418 899 Website

Application

  • Commercial/office spaces
  • Retail
  • Education
  • Hospitality spaces

Description

Equal parts form and function, 3D Tiles are sculptural acoustic tiles designed for interior wall application. Moulded into abstract, three-dimensional shapes, 3D Tiles provide acoustic absorption across the mid to high-frequency range.


Features and benefits:

  • Control noise in interior environments and create unique sculptural features
  • The hollow design creates an air gap, improving acoustic performance
  • Lightweight
  • Includes mounting clips for easy install
  • Available in eight designs
  • Easily customisable
  • Carbon neutral
  • Made locally

General information

Color

Beige

Black

Blue

Cream

Gold

Show more

Manufacturer guidance

Available in a range of colours.

Finish

Smooth

Material

Polyester fibre (PET)

Guidance for specification option:

Polyester fibre (PET).

Shape

Square

Warranty description

Ten year

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary
Ss_25_25_75_05 Acoustic panel lining systems

CAWS

K40/265 Infill units

K40/10 Unit/ modular suspended ceilings

Specification data - Sound attenuator infill units

Form

Panel.

Rigidity

Semi rigid.

Application

Wall mounting.

Material

Polyester fibre.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class C to BS EN ISO 11654.

Guidance for specification option:

Without Autex AAB backing.

Class A to BS EN ISO 11654.

Guidance for specification option:

With Autex AAB backing.

Fire performance

-

Reaction to fire

B-s1, d0.

VOC emissions

0.01 mg/m³.

Dimensions

-

Size (length x width)

575 x 575 mm.

Thickness (overall)

60 mm.

Profile

Geometric profile.

Edges

Square.

Surface pattern

Solid.

Colour

Avocado.

Bark.

Blazing red.

Blush.

Brilliant orange.

Charcoal.

Civic.

Electric blue.

Fawn.

Granny smith.

Noir.

Porcelain.

Silver.

Stately.

Stonewash.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Polyester fibre (PET)

Guidance for specification option:

Polyester fibre (PET).

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.87 kg CO₂ eq/kg

Self declared

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Guidance for specification option:

Minimum 60% post-consumer recycled PET material.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
 -

1

Revit
 -

1

Third party certifications

Declare

Declare

Declare - 3D Tiles and 3D Ceiling Tiles

HPDC Certification

HPDC Certification

Health Product Declaration - 3D Tiles and 3D Ceiling Tiles

Literature

3D Tiles Datasheet

3D Tiles Datasheet

3D Tiles Install Instructions

3D Tiles Install Instructions

3D Tiles Lookbook

3D Tiles Lookbook

3D Tiles Manufacturers Warranty

3D Tiles Manufacturers Warranty
