Verified by manufacturer 2 months ago
WF 50
ISO 14001 Environmental Management Systems
Certificate type

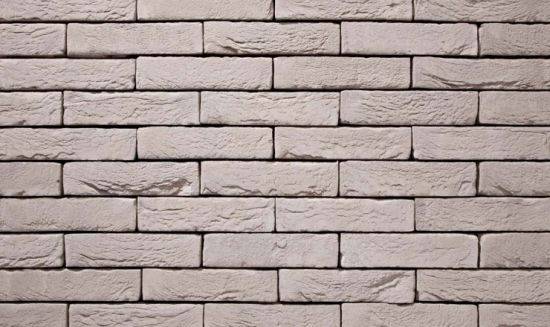

Grey with light grey shades, hand moulded ECO brick slip.
For exterior or interior walls.
Westerwald clay forms the base material for this facing brick. A natural white baking clay of the Westerwald region in the western part of Germany. By using specific sand types for surface covering, the desired colour is achieved.
Features and benefits:
For more information about Vandersanden and to discover our complete range of specifier solutions, please visit www.vandersanden.com.
Be informed and inspired by the potential of brick to transform your projects. Register for our specifier Inspiration Guide here
Over 1.1 million possibilities!
Create, download and visualise beautiful brick facades with our New Texture Generator here
Stay up to date and discover new trends, techniques, and innovations with our RIBA CPDs here
Color | Grey |
Finish | Sanded Coated |
Material | Clay |
Shape | Rectangle |
Length | 214 mm |
Width | 20 mm |
Height | 64 mm |
Uniclass | |
CAWS | F10/110 Clay facing brickwork F10/5 Facing brickwork |
Product range |
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Grey, with light grey shades, with a sanded-coated and grained structure. |
Work size (length x width x height) | 212 x 20 x 49 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Category | Manufacturer guidanceManufacturer's standard. |
Durability designation | Frost resistance to DIN 52252-1. |
Density | |
Gross dry | 1650 kg/m³. |
Net dry | 1800 kg/m³. |
Tolerance | D1. |
Water absorption | ≤14% m/md. |
Configuration | Frogged. |
Thermal conductivity | ≤0.53 W/m·K.Guidance for specification option: Lambda 50/50. |
Water vapour permeability | 5/10 µ. |
Reaction to fire | Class A1. |
ECO corner strip | Required. Not required. |
Jointing | Joint free. Dark grey. Grey. Light grey. Tone-on-tone. |
Weight | 0.45 kg. |
Country of material origin | Europe |
Country of product manufacture | Belgium |
Material | Clay |
Recyclability | Recyclable |
