Quartis - Clay Facing Brick
Verified by manufacturer 5 months ago
WF
WF

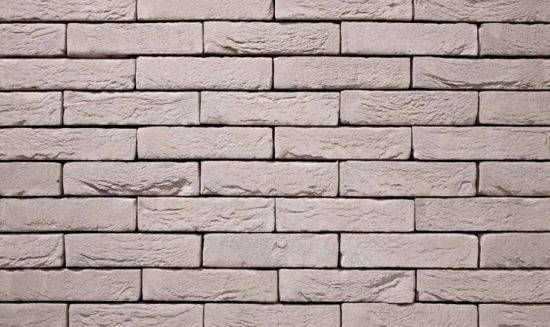

A unicoloured light metal grey facing brick, with a sanded-coated and grained structure.
Description
The base material for this type of facing brick is Westerwald clay, a natural white baking clay of the Westerwald region in the western part of Germany. By using specific sand types for surface covering, the desired colour is achieved.
Features and benefits:
- Hand formed.
- Single coloured.
- Five joint styles available.
For more information about Vandersanden and to discover our complete range of specifier solutions, please visit www.vandersanden.com.
Be informed and inspired by the potential of brick to transform your projects. Register for our specifier Inspiration Guide here
Over 1.1 million possibilities!
Create, download and visualise beautiful brick facades with our New Texture Generator here
Stay up to date and discover new trends, techniques, and innovations with our RIBA CPDs here
General information
Color | Grey |
Finish | Sanded Coated |
Material | Clay |
Shape | Rectangle |
Length | 214 mm |
Width | 101 mm |
Height | 65 mm |
Uniclass | |
CAWS | F10/110 Clay facing brickwork F10/5 Facing brickwork |
Product range |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Light metal grey facing brick, with a sanded-coated and grained structure. |
Work size (length x width x height) | 212 x 101 x 51 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | ≥20 N/mm².Guidance for specification option: Tested to the bed face. |
Category | Manufacturer guidanceManufacturer's standard. |
Durability designation | F2. |
Density | |
Gross dry | 1640 kg/m³. |
Net dry | 1750 kg/m³. |
Tolerance | D1. |
Water absorption | ≤15% m/md. |
Configuration | Frogged. |
Recycled content | Manufacturer guidanceManufacturer's standard. |
Thermal conductivity | ≤0.55 W/m·K.Guidance for specification option: Lambda 50/50. |
Water vapour permeability | 5/10 µ. |
Bond strength | Manufacturer guidanceManufacturer's standard. |
Reaction to fire | Class A1. |
Active soluble salts | S2. |
Jointing | Dark grey. Grey. Joint free. Light grey. Tone-on-tone. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | Belgium |
Recyclability | Recyclable |
