Quartis - Clay Facing Brick

Verified by manufacturer 2 months ago

M50

Vandersanden Brick Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

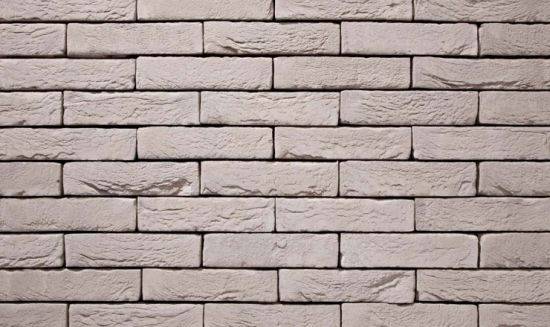

A unicoloured light metal grey facing brick, with a sanded-coated and grained structure.

Jump to:
+44 (0) 1954 268075 Website

Description

The base material for this type of facing brick is Westerwald clay, a natural white baking clay of the Westerwald region in the western part of Germany. By using specific sand types for surface covering, the desired colour is achieved.


Features and benefits:

  • Hand formed.
  • Single coloured.
  • Five joint styles available.


For more information about Vandersanden and to discover our complete range of specifier solutions, please visit www.vandersanden.com.


Be informed and inspired by the potential of brick to transform your projects. Register for our specifier Inspiration Guide here


Over 1.1 million possibilities!

Create, download and visualise beautiful brick facades with our New Texture Generator here


Stay up to date and discover new trends, techniques, and innovations with our RIBA CPDs here


General information

Color

Grey

Finish

Sanded

Coated

Material

Clay

Shape

Rectangle

Length

192 mm

212 mm

214 mm

Width

89 mm

101 mm

Height

50 mm

51 mm

65 mm

Uniclass

Pr_20_93_52_15 Clay bricksPrimary

CAWS

F10/110 Clay facing brickwork

F10/5 Facing brickwork

Product range

Bricks

Specification data - Clay bricks

Standard

To BS EN 771-1.

Brick description

Facing brick.

Appearance

Light metal grey facing brick, with a sanded-coated and grained structure.

Work size (length x width x height)

192 x 89 x 50 mm.

Tolerances

-

Mean value

T2.

Range

R1.

Compressive strength

-

Mean compressive strength (minimum)

≥20 N/mm².

Tested to the bed face.

Category

Manufacturer's standard.

-

Durability designation

F2.

Density

-

Gross dry

1640 kg/m³.

Net dry

1750 kg/m³.

Tolerance

D1.

Water absorption

≤15% m/md.

Configuration

Frogged.

Recycled content

Manufacturer's standard.

-

Thermal conductivity

≤0.55 W/m·K.

Lambda 50/50.

Water vapour permeability

5/10 µ.

Bond strength

Manufacturer's standard.

-

Reaction to fire

Class A1.

Active soluble salts

S2.

Jointing

Dark grey.

Grey.

Joint free.

Light grey.

Tone-on-tone.

Environmental information

Country of material origin

Europe

Country of product manufacture

Belgium

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO14001 certificate

Additional certifications:

  • CE marked
