Q Range – PVC-U Stair Nosing for Vinyl and Laminate Floorcoverings
Description

Range of PVC-U stair nosings.

Features and benefits:

  • Manufactured in Britain.
  • Available in straight or raked back profiles.
  • Suitable for use on stairs with vinyl or laminate floorcoverings.
  • Riser and tread can be in the same colour, a principal guideline from the Building Regulations and BS 8300:2:2018 which state that there should be a clear contrast on the nose of steps on stairways in areas of public access.
  • Suitable for installation in all categories of public and commercial buildings.
  • All over tread provides a slip resistant surface from the nose to the back edge, providing extra safety when ascending or descending stairs.
  • No dirt traps, easy to clean.

Potential for slip (all treads):

Independently tested by Grip Potential Ltd. All tread options have a minimum PTV of 36+ in a wet test and 60+ in a dry test; this is considered ‘Low Slip Potential’.

All products are available in a variety of stock lengths and packing; see manufacturer's literature for details.

Related products (to be specified separately):

  • Stair Edging Side Trims.
  • Landing and Stairway Tactiles.

General information
Material

Unplasticized polyvinyl chloride (PVC-U)

Uniclass 2015
Pr_35_90_31_74 Rigid stair nosingsPrimary
CAWS

L30/30 Proprietary

L30/310 Proprietary

L30/590 Applied stair nosings

M50/75 Stair nosings and trims

M50/750 Stair nosings and trims

M51/550 Stair nosings and trims

Specification data - Rigid stair nosings
Product Reference

Q Range – PVC-U Stair Nosing for Vinyl and Laminate Floorcoverings

Type

QRu-SF1

Flat front.

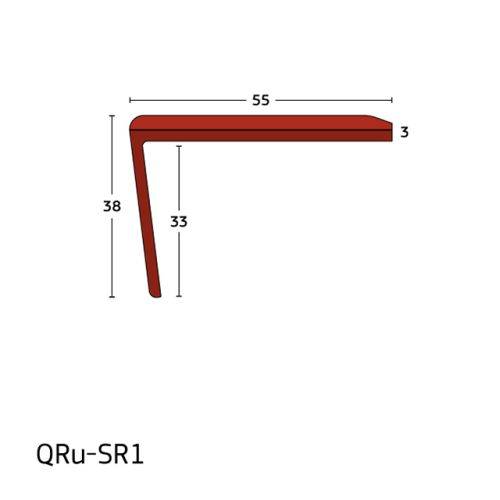

QRu-SR1

Rake back.

Light reflectance value (LRV)/ Colour -
Channel

6 Black

6 Claret

10 Rustic

10 Peat

11 Dark Blue

11 Regency

11 Spruce

11 Granite

15 Flint

26 Light Grey

49 Polar Grey

51 Ivory

67 Yellow

81 White

Fixing

Mechanical (screw) and adhesive fix, secret fix, without pips

Mechanical (screw) and adhesive fix, with pips

Q-Fix (adhesive only)

Ten-year project warranty available, consult manufacturer for details.

Standard product features

Material:

Unplasticized polyvinyl chloride (PVC-U).

Gauge:

2 mm.

Tread:

55 mm.

Riser:

39 mm.

Tread type:

Standard.

Product Options

Light reflectance value (LRV)/ Colour:

- Tread:

  • 6 Black.
  • 6 Claret.
  • 10 Rustic.
  • 10 Peat.
  • 11 Dark Blue.
  • 11 Regency.
  • 11 Spruce.
  • 11 Granite.
  • 13 Poppy.
  • 15 Flint.
  • 16 Royal Blue.
  • 21 Fawn.
  • 26 Light Grey.
  • 30 Jade.
  • 33 Tangerine.
  • 49 Polar Grey.
  • 51 Ivory.
  • 52 Sky.
  • 53 Lime.
  • 56 Sun.
  • 64 Mist.
  • 67 Yellow.
  • 69 Photoluminescent.
  • 77 Desert.
  • 81 White.
