Q-BOX Roller Blinds - Roller Blinds

Verified by manufacturer 6 days ago

Q-BOX 100

Bandalux Industrial SA Variant:
Third party certifications:

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • ASTM

    ASTM

    Certificate type

  • GreenGuard Gold

    GreenGuard Gold

    Certificate type

  • EPD

    EPD

    Certificate type

Roller blinds with an aluminium cassette with easy ceiling, wall or recess installation.

Jump to:
+(34) 938 615 179 Website

Application

Suitable for indoor use, with easy ceiling, wall or recess installation.

Description

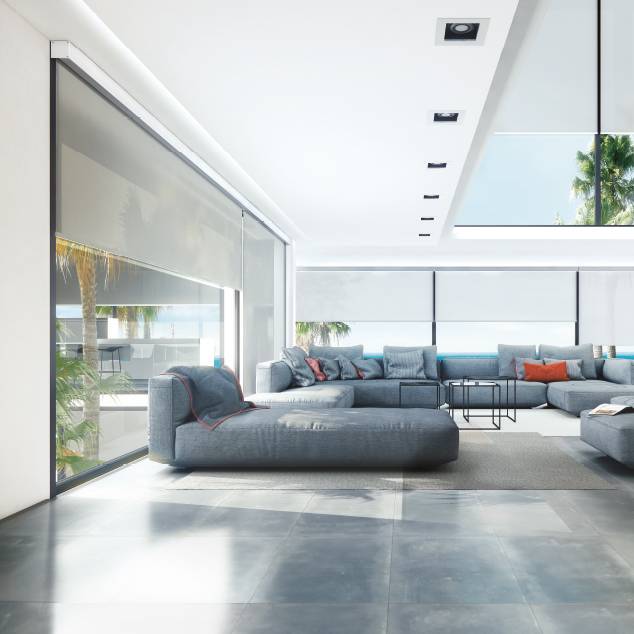

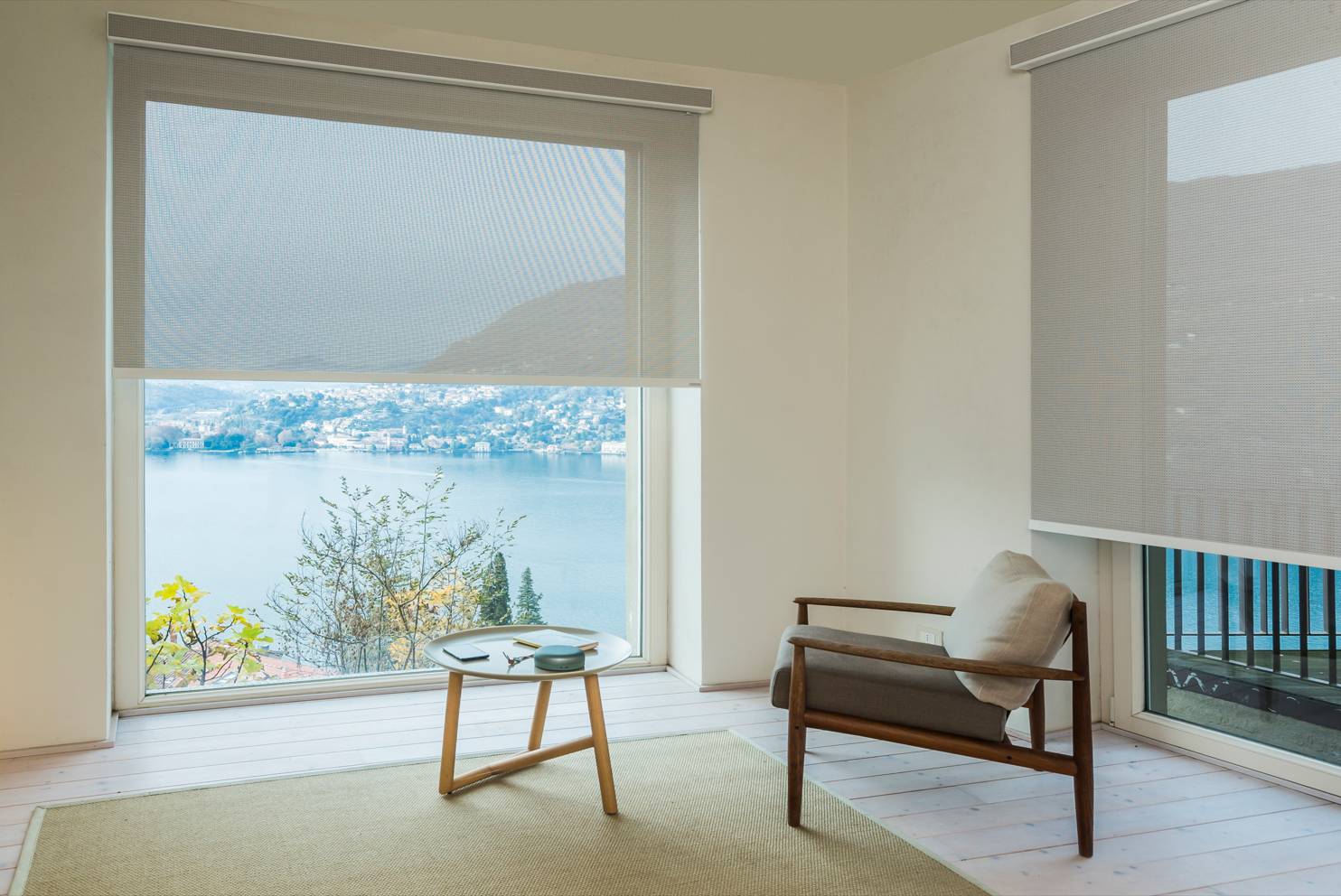

Q-Box is the indoor roller blinds with a compact box system and the ideal match for any style. As a result, this system is commonly found in hospitals and other buildings that require a simple aesthetic. This system affords an easy and quick installation on the ceiling or wall.


Features and benefits:

  • A subdued and refined look that fits seamlessly into any room.
  • 100% aluminium compact cassette.
  • Easy ceiling, wall or recess installation.
  • Modern look fitting into the ambiance of the room.
  • Box available in three sizes.
  • Wide range of fabrics.
  • Minimal space between the box and the fabric reduces the entrance of light.
  • Convenience and ease when operating the blind.
  • Chain or motor operation.
  • Three year warranty.
  • Child safe system.
  • CE marked.

General information

Color

Finish

Anodized

Lacquered

Material

Fabric

Aluminium

Shape

Rectangle

Square

Width

Bespoke

Height

Bespoke

Warranty description

Three year

Uniclass

Pr_30_59_07_72 Roller blindsPrimary
Pr_30_59_07_26 External roller blinds

CAWS

N10/240 Blinds

N10/70 Blinds

Specification data - Roller blinds

Standards

To BS EN 13120.

Position

Internal to wall.

Internal to ceiling.

Internal to inner recess.

Dimensions (minimum width x depth)

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Headrail

-

Material

Aluminium.

Blinds

-

Material

Fabric.

Guidance for specification option:

Consult manufacturer's literature and insert requirements.

Blackout function

Required.

Guidance for specification option:

Consult manufacturer and insert requirements.

Not required.

Finish

-

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Colour

-

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Pattern

Digital Printing.

Guidance for specification option:

Consult manufacturer and insert requirements.

Not required.

Tube

-

Material

Extruded aluminium.

Diameter

Ø44 mm.

Ø55 mm.

Ø65 mm.

Tube covers

-

Material

Extruded aluminium.

Colour

White, RAL 9016.

Anodized Aluminium.

Black, RAL 9011.

Brown, RAL 8019.

Grey, RAL 9006.

Light Ivory, RAL 1013.

Operation

Manual, chain.

Guidance for specification option:

Minimum shade width: 400 mm.

Motor, Bandalux Ø40 Cable.

Guidance for specification option:

Minimum shade width: 600 mm.

Bandalux Ø50 Motors Cable.

Guidance for specification option:

Minimum shade width: 600 mm.

Motor, Bandalux Ø40 Radio.

Guidance for specification option:

Minimum shade width: 630 mm.

Bandalux Ø40 Motors Radio.

Guidance for specification option:

Minimum shade width: 640 mm.

Somfy Ø40 Motors Cable and Silent.

Guidance for specification option:

Minimum shade width: 560 mm.

Motor, Somfy Ø40 Ariane.

Guidance for specification option:

Minimum shade width: 630 mm.

Motor, Somfy Ø40 Atlas.

Guidance for specification option:

Minimum shade width: 700 mm.

Motor, Somfy Ø50 Cable Silent.

Guidance for specification option:

Minimum shade width: 650 mm.

Motor, Somfy Ø40 Atlas RTS.

Guidance for specification option:

Minimum shade width: 610 mm.

Motor, Somfy Ø40 Sonesse RTS.

Guidance for specification option:

Minimum shade width: 740 mm.

Somfy Ø50 RTS Motors.

Guidance for specification option:

Minimum shade width: 740 mm.

Motor, Somfy Ø50 Sonesse RTS.

Guidance for specification option:

Minimum shade width: 660 mm.

Somfy Ø50 IO Sunea Screen.

Guidance for specification option:

Minimum shade width: 750 mm.

Motor, Somfy Ø50 IO Sunilus.

Guidance for specification option:

Minimum shade width: 900 mm.

Manufacturer guidance

May vary depending on fabric. Consult manufacturer for details.

Mechanism endurance

To BS EN 13120, class 3.

Accessories

Not required.

Spring assistance.

Guidance for specification option:

  • Recommended from 5 m².
  • With limit switch.

Redux System.

Guidance for specification option:

  • Planetary gear system that ensures smooth operation by reducing the weight by 35%.
  • Does not include a limit switch.
  • Movement length of chain is three times the height of chain.

Personalization.

Bottom bar

Extruded aluminium.

Components

White, RAL 9016.

Anodized Aluminium.

Black, RAL 9011.

Brown, RAL 8019.

Grey, RAL 9006.

Show more

Manufacturer guidance

Components colour.

Cassette, chains, accessories and hembar in the same matching RAL colour to cassette.

Cassette size

100 mm.

Bottom rail design

Hidden bottom rail Ø20 mm.

Guidance for specification option:

Provided as standard.

Hidden bottom rail Ø30 mm.

Visible bottom rail, Slim 35.

Operating system

Double drop, 1 operation.

Guidance for specification option:

This system may include an additional central support, affording widths that exceed the maximum for a shade and reaching a maximum of 6 m.

Double drop, 2 operations.

Gap

14 mm.

Manufacturer guidance

Gap between the cassette and the fabric.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Fabric

Aluminium

Recyclability

Yes, Aluminum and Fabrics

Guidance for specification option:

Aluminum and Stainless Steel is 100% recyclable, an un-limited number of times, without losing or diminishing its chemical or mechanical characteristics. For this reason, the life cycle of an aluminum or stainless steel product tend to be circular, this concept being called “cradle-to-cradle”, currently used to reach an efficient economy in the use of resources, that takes advantage of all materials at the end of their useful life as raw materials.


Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Guidance for specification option:

Bandalux’s extruded aluminum profiles and tubes have 95% recycled content.

Bandalux’s laminated aluminum has between 45% and 65% recycled content.

90% or our contract fabrics collection has 2% up to 100% recycled content.
