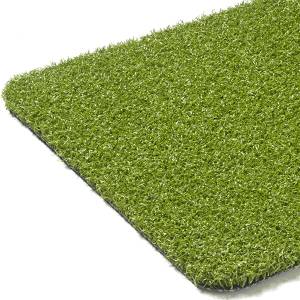

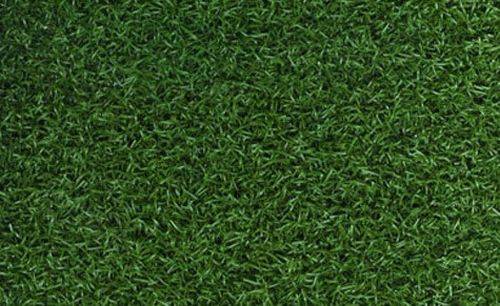

Putting Green Pro - Artificial grass

Verified by manufacturer 1 month ago

Evergreens UK Group

A high grade professional quality golf putting green surface.

Jump to:
BOS
+44 (0)1572 768208 Website

Application

Suitable for home and commercial putting greens.

Description

A high grade professional quality golf putting green surface used by European tour pros.


It has the maximum tufting density possible and is a suitable choice for custom designed synthetic putting greens for domestic and commercial use as it offers consistent play.


Features and benefits:

  • With more fibre tips touching the ball as it rolls across the surface, this decreases the resistance when the fibre is new and helps slow the ball down.
  • Soft fibres prevents the ball from rolling too fast over a period of time.
  • Yarn quality: Environmental friendly, free of lead and cadmium.
  • Roll widths available in 2000 or 4000 mm.
  • Tested for UV stability to DIN 53387.

General information

Color

Green

Finish

Tufted

Material

Polyethylene

Guidance for specification option:

(5000/ 8 dTex) polyamide (PA) monofilament curled.

Length

Bespoke

Width

4000 mm

2000 mm

Height

13 mm

Warranty description

Eight year

Uniclass

Pr_35_57_11_85 Synthetic grass surfacesPrimary

CAWS

Q26/350 Synthetic grass surfacing

Specification data - Synthetic grass surfaces

Pile

-

Type

Tufted.

Material

Polyamide.

Guidance for specification option:

(5000/ 8 dTex) polyamide (PA) monofilament curled.

Height

14 mm (± 10%).

Manufacturer guidance

Pile height.

Weight

2893 g/m² (± 10%).

Manufacturer guidance

Total weight.

Colour

Green.

Width (minimum)

2000 mm.

4000 mm.

Manufacturer guidance

Roll width (± 20 mm).

Radius of ignition

-

Standard

To BS 4790.

Roll length

25 m.

Primary backing

100% polypropylene double thiobac fibre locked fleece and glass fabric, black.

Guidance for specification option:

303 g/m².

Secondary backing

Black latex compound with a base of SBR, with drainage holes.

Guidance for specification option:

1140 g/m².

Water permeability

60 L/min/1000 mm.

Weight

1450 g/m² (± 10%).

Manufacturer guidance

Face weight.

Gauge

3/16.

Colour fastness

Bleu-scale > 7, Grey-scale > 4.

Manufacturer guidance

Xenon test.

UV stabilization

To DIN 53387.

Stitches per m²

67,200.

Guidance for specification option:

Per 100 mm linear: 32.0.

Infill

0-15 kg/m².

Manufacturer guidance

Sand infill.

Accessories

Not required.

Joining tape.

Lazyfix Adhesive.

Sustainability data

Country of product manufacture

Netherlands

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2016

3
