Purewash 2D Curve
Verified by manufacturer over a year ago
1202PD/C
1202PD/C

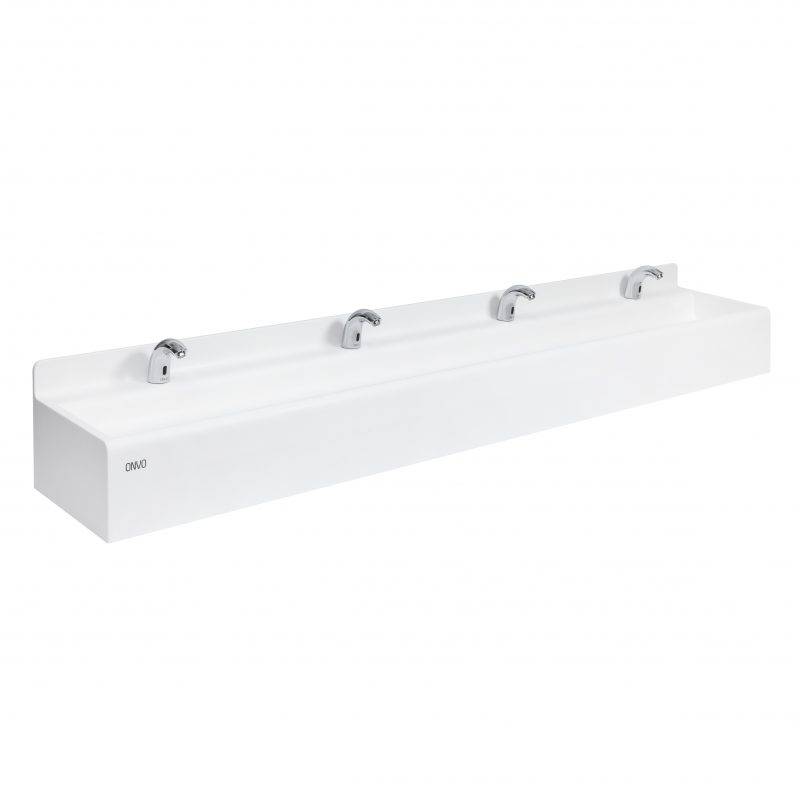

Simplified wash trough with a more corporate look for direct installation on solid walls.
Application
Suitable for use in public bathrooms and educational/ corporate facilities where deck mounted sensor taps are preferred.
Description
Simplified wash trough with a more corporate look for direct installation on solid walls.
Features and benefits:
- Compatible with the ONVO Modular Frame System.
- Available in a wide range of solid surface colours.
- Available in variations to suit any number of users.
- Bespoke length also available upon request.
General information
Shape | Rectangle |
Color | White |
Finish | Laminate |
Material | Corian |
Warranty description | Ten year |
Size | 1200 mm 1800 mm 2400 mm 3000 mm 3600 mm Manufacturer guidanceLength |
Uniclass | |
CAWS | N13/30 Washbasins N13/346 Washing troughs |
Specification data - Wash troughs
Form | Wall-mounted. |
Stations | Two. |
Materials | |
Body | Solid surface.Guidance for specification option: Corian. |
Finish and colour | Laminate. White. |
Product Reference | Purewash 2D Curve |
Length | 1200 mm. Guidance for specification option: Suitable for two users. Requires three fixing brackets. |
Weight | 42 kg. Guidance for specification option: 1202D/C. |
Bracket | Modular bracket system included. |
Fixing bracket | 2.96 kN. Guidance for specification option: Tension in top fixing location. 1.92 kN. Guidance for specification option: Shear in bottom fixing location. |
Preplumbing | Connection to 1 1/2” waste outlet required. Guidance for specification option: Installer to provide water supply for taps. |
Accessories | 140 Sensor Tap. 766 Soap Dispenser. 776 Soap Dispenser. |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
