Latherwash 2W Curve with Modular Island Unit - Wash trough and unit
Verified by manufacturer over a year ago
1200 mm wash trough - 1202W/C
1200 mm wash trough - 1202W/C

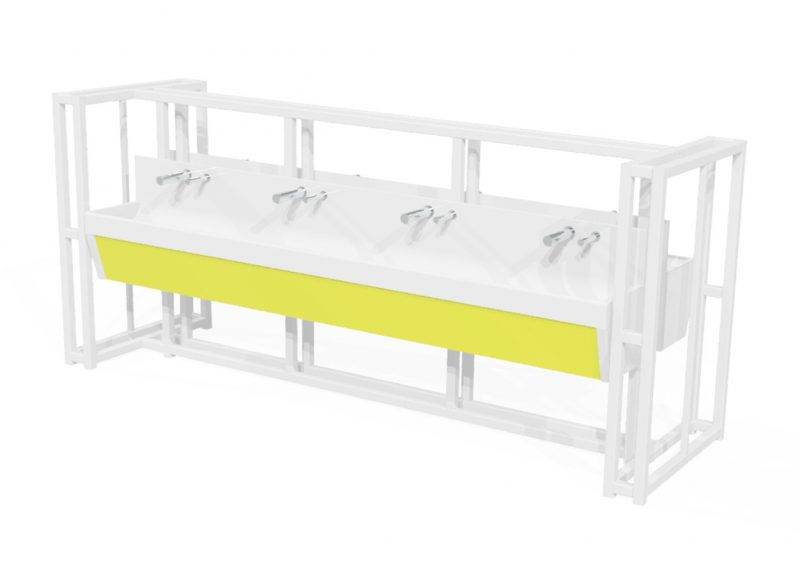

Wash trough with floor-mounted modular island unit.
Application

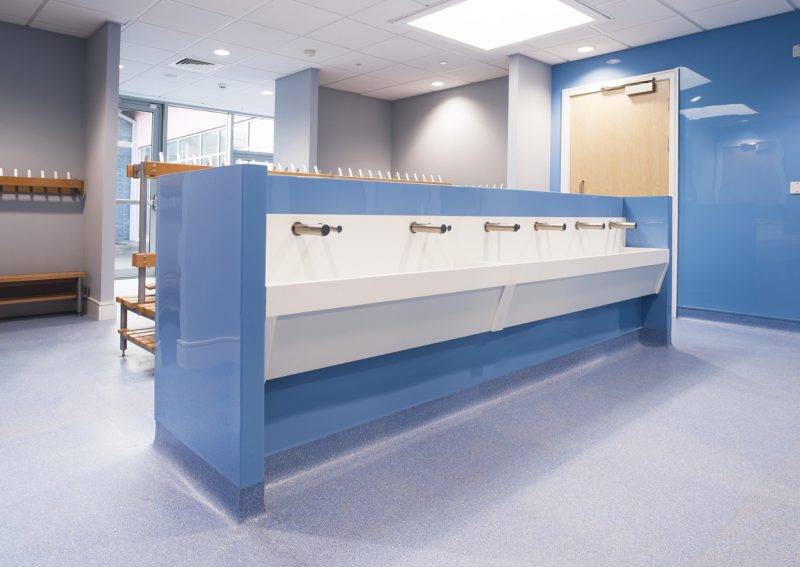

Suitable for use in public bathrooms when wash troughs are required to be fitted in the middle of the room or projecting out from a wall.
Description
An all in one solution for back-to-back wash troughs. The modular island unit provides a safe, structural half height support frame that mounts the Latherwash 2W Curve wash trough.
Features and benefits:
- All in one solution.
- Back-to-back wash troughs.
- Full structural support.
- Minimalistic floating effect.
- Concealed pipework.
- Access beneath the wash trough or via a removable lid on the top of the unit.
- Steel modular island unit can be bolted to the ground.
- The frame can be clad in plywood and finished in whiterock, tile etc. to match the room.
- Bespoke lengths available if required.
Components:
- Latherwash 2W Curve wash trough.
- Powder coated steel Modular Island Unit.
General information
Color | Beige Black Blue Brown Cream |
Finish | Powder-coated |
Material | Corian Steel Laminate |
Shape | Rectangle |
Length | 1566 mm 2166 mm 2766 mm 3366 mm Bespoke Manufacturer guidanceIsland overall length. |
Width | 824 mm |
Height | 1177 mm |
Warranty description | Ten year Guidance for specification option: Modular Island Unit. Five year Guidance for specification option: Latherwash 2W Curve. |
Uniclass | |
CAWS | N13/30 Washbasins N13/346 Washing troughs |
Specification data - Wash troughs
Form | Floor-mounted.Guidance for specification option: Modular Island Unit fixed into the floor through holes in the floor standing steel frame. Wall-mounted.Guidance for specification option: Latherwash 2W Curve wall-mounted to Modular Island Unit. |
Stations | Four. |
Materials | |
Body | Solid surface (trough) and solid grade laminate (front panel). |
Finish and colour | 410 Ice White.406 Spring White.810 Mini White.409 Cream.414 Sand.813 Beige Manhattan.1816 Sahara Beige.893 Umber Brown.897 Volcano Brown.854 Silver Blue.478 Light Grey.475 Pearl Grey.1819 Mountain Grey.870 Grey Cloud.477 Grey.871 Dark Grey.879 Graphite Grey.421 Black.1850 Lime.441 Green Citron.460 Green Grass.1852 Olive Green.845 French Green.486 Blue Lake.857 Heavenly Blue.1860 Pacific Blue.487 Blue Dust.499 California Blue.838 Primary Blue.859 Blue Pottery.1804 Dark Blue.425 Lilac Erica.1827 Violet.1881 Orchid.423 Purple Madras.498 Purple Lily.1883 Aubergine.860 Yellow Piper.861 Yellow Pop.8535 Orange Canyon.427 Fuschia.431 Red.Manufacturer guidanceFront panel. |
Size | 1200 x 824 mm. |
Water supply, overflow and waste holes | |
Water supply | One tap hole in backplate at each user position. |
Overflow | None. |
Waste | 1 ½" waste outlet. |
Integral accessories | 180 Sensor Tap.260 Self Closing Push Tap.480 Soap Dispenser.ONVO multifeed soap container.Not required. |
Overall length | 1566 mm. Guidance for specification option: 1202WIS. Manufacturer guidanceIsland overall length. |
FrameMaterial | Steel. |
Frame finish | Powder coated. Guidance for specification option: Insert requirements. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
