ProTherm FOAMGLAS® Angle Fillets - Insulation Angle Fillet

Verified by manufacturer 2 months ago

Radmat Building Products Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

Non-combustible angle fillets for use at changes in angle from flat to vertical at waterproofing upstands/ abutments.

Jump to:
+44 (0)1858 410372 Website

Application

Angle Fillets provide a 45° angle to support the waterproofing membrane/ system at all 90° vertical abutments.


ProTherm Angle Fillets (Mineral Wool) can be used in similar circumstances and may be compatible with the roofing system - consult with Radmat for technical advice.

Description

The triangular profile of ProTherm FOAMGLAS® non-combustible Euroclass A1 cellular glass foam insulation is constructed from FOAMGLAS® T4+ un-faced boards.


Provided in 450 mm lengths and to a height of 50, 100 or 150 mm.


They are to be bonded to the top layer of FOAMGLAS® insulation in a built-up warm roof application or bonded directly to the substrate where required on a cold roof application.


Bonding can be with PC®58 cold-bonding adhesive or EshaPur 95/25 Oxidised Bitumen for hot-applied applications. Where Radmat PermaQuik PQ6100 Hot Melt is the waterproofing system specified, the ProTherm FOAMGLAS® Angle Fillets can also be bonded into a base layer of PermaQuik Hot Melt.

General information

Color

Black

Finish

Unfinished

Material

Cellular glass

Shape

Triangle

Length

450 mm

Width

50 mm

100 mm

150 mm

Height

50 mm

100 mm

150 mm

Warranty description

40 year

Uniclass

Pr_35_90_07_04 Angle filletsPrimary

CAWS

J31/337 Cellular glass insulation

J21/427 Cellular glass insulation

J41/335 Angle fillets

Specification data - Angle fillets

Material

Cellular glass.

Size (minimum)

450 x 50 mm (triangular in section).

450 x 100 mm (triangular in section).

450 x 150 mm (triangular in section).

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

0

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Third party certifications

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

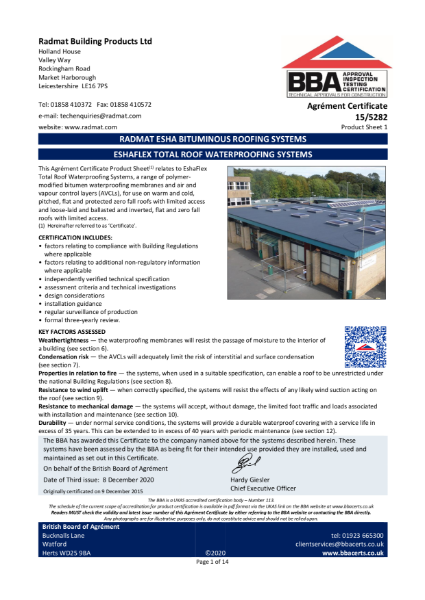

15/5282 EshaFlex Total Roof Waterproofing System

EPD

EPD

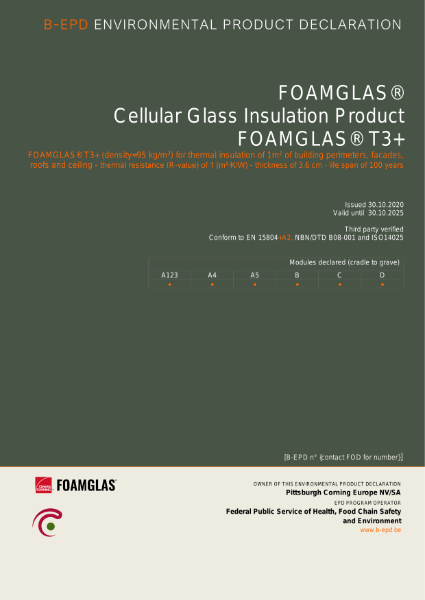

FOAMGLAS T3+ Environmental Product Declaration

Literature

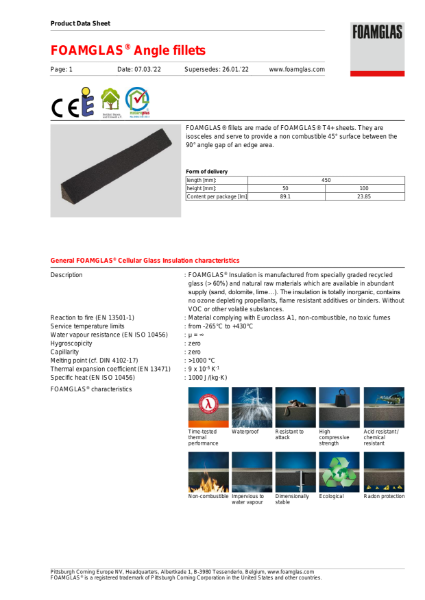

FOAMGLAS Angle Fillets PDS

FOAMGLAS Angle Fillets PDS
