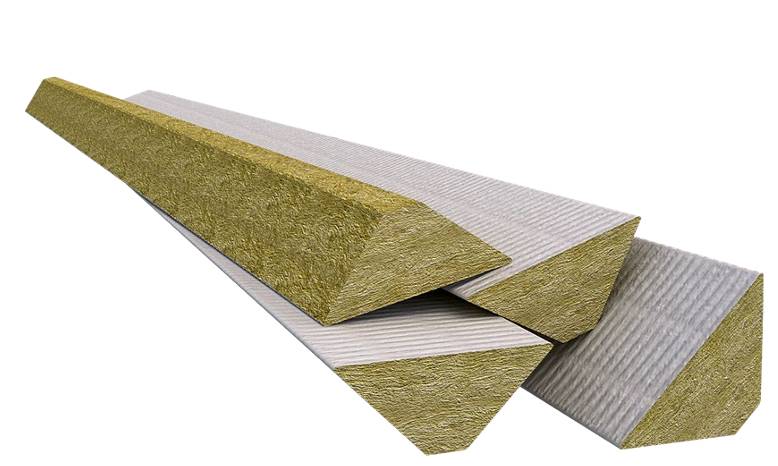

ProTherm Angle Fillets
Verified by manufacturer 4 months ago
A multi-fix, high density, non-combustible, volcanic rock insulation produced with an integral mineral coated glass fibre fleece.
Application

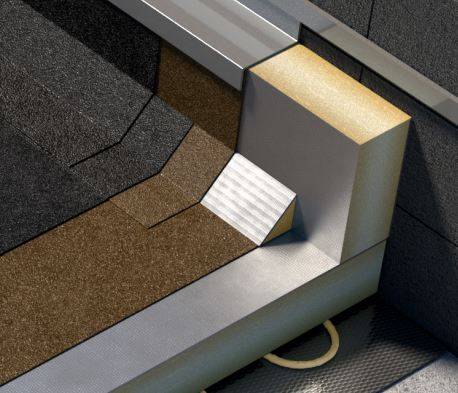

Non-combustible angle fillets designed to fully support the waterproof membrane at 90° abutments, providing a smooth transition between the horizontal and vertical interface at parapets walls, rooflights, upstands etc.
Description
ProTherm Angle Fillets is manufactured from high density volcanic rock insulation and produced with an integral mineral coated glass fibre fleece. The ProTherm Angle Fillet is non-combustible and designed to fully support the waterproof membrane at 90° abutments, providing a smooth transition between the horizontal and vertical interface at parapets walls, rooflights, upstands etc. ProTherm Angle Fillet has been manufactured with an integral mineral coated glass fibre fleece, which for hot or cold applied bituminous membrane systems, secures a strong bond between membrane and insulation.
Features and benefits:
- Excellent heat resistance, ideal for torch-applied bitumen systems.
- Can help to prolong the life of the waterproof membrane.
- Cost effective and easy to install.
- A single size solution.
- Environmental: Zero ODP and GWP.
- Fire classification: A1 to BS EN13501-1 (non-combustible).
Installation:
- ProTherm Angle Fillet must be installed in dry conditions.
- Place the angle fillet along the 90° abutment between the horizontal and vertical interface.
- The angle fillet can easily be cut using a fine toothed saw.
- Place the angle fillet in position with the glass fibre fleece facing outwards.
- Fix the angle fillet to the horizontal surface using EshaStik.
General information
Color | Beige |
Finish | Unfinished |
Material | Mineral wool Guidance for specification option: Volcanic rock insulation produced with an integral mineral coated glass fibre fleece. |
Shape | Trapezoid |
Length | 1200 mm |
Width | 75 mm |
Height | 30 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | J41/335 Angle fillets |
Specification data - Angle fillets
Material | Rock wool with glass fibre fleece. |
Size (minimum) | 1200 x 75 mm. |
Torch-on bitumen membranes | Non-combustible fillets. |
Thickness | 30 mm. |
Fire classification | To BS EN13501-1, A1 non-combustible. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25–50%. Guidance for specification option: Depending on definition. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 0 Guidance for specification option: 25—50 %. Depending on definition. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % |
Literature
ProTherm Angle Fillets PDS
