Protec Overlay Roof Systems - Cold-Applied Liquid Waterproofing
Verified by manufacturer 2 months ago
Asphalt overlay
Asphalt overlay
European Technical Approval (ETA)
Certificate type
BBA Agrément Certificate
Certificate type
EPD
Certificate type
UK Technical Assessment (UKTA)
Certificate type
Cold-applied liquid waterproofing membrane for a range of substrates.
Application
Suitable for flat and pitched roofs, balconies, terraces and walkway applications.
Description
Protec is a highly versatile, fast curing, fully reinforced cold liquid applied membrane system suitable for a wide range of roofing and waterproofing applications.
The Protec RapidCure technology utilizes catalyst, accelerators and inhibitors allowing full control over cure times across a wide range of temperatures all year round. The seamless Protec membrane features the optimum combination of flexibility and toughness, making it suitable for roofs terraces and walkways of all sizes including situations requiring regular foot traffic. Protec offers lasting weatherproof protection for at least 30 years (BBA Cert. No. 09/4676) and is supported by Polyroof’s Approved System Guarantees for up to 25 years.
Features and benefits:
- Flexible and tough membrane - A flexible hybrid polymer waterproofing system with flexibility and robustness.
- RapidCure Technology - Fast application with cure times as low as 30 minutes.
- Seamless waterproof membrane - Applied as a liquid, Protec forms a seamless waterproof membrane with no joints, no welds and no weak points.
- Cold applied installation with zero risks from hot works - Unlike many traditional roofing materials that require open flame hot works to install, Protec is fully cold applied meaning there are no risks of accidental fire during installation.
- Fire performance - Classified as BROOF(t4), the top rating achievable for a flat roof system and designating Protec as unrestricted under the national requirements.
- BBA Certified (Certificate no. 09/4676) with a certified lifespan of at least 30 years.
- FM Approved, UKTA Certified (UKTA-0836-22/6389) and ETA Certified (ETA-20/0914) with CE marking.
- Suitable for use with zero falls in accordance with BBA certificate BBA (09/4676).
- Manufactured in accordance with BS EN ISO 9001:2015 and BS EN 14001:2015.
- Protec waterproofing membrane has a third party verified, product specific EPD to EN 15804:2012+A2:2019.
Please consult Polyroof Products Ltd for further specification advice.
General information
Color | Grey Other Guidance for specification option: Bespoke / Specials available, consult manufacturer for details. |
Finish | Smooth Guidance for specification option: Seamless, watertight finish. |
Material | Polymer Guidance for specification option: Flexible hybrid polymer. |
Shape | Other |
Length | Bespoke Manufacturer guidancePlease refer to project specific drawings. Formed on site. |
Width | Bespoke Manufacturer guidancePlease refer to project specific drawings. Formed on site. |
Height | Bespoke Manufacturer guidanceFormed on site. Approximately 3mm thick once cured. |
Warranty description | 20 year Guidance for specification option: As standard. 25 year Guidance for specification option: Subject to specification and discussions with Polyroof Products Ltd. |
Uniclass | |
CAWS | J31/5 Cold deck roof coating J31/110 Cold deck roof coating |
Specification data - Liquid-applied cold roof covering systems
Preparation | |
Horizontal work | Manufacturer guidancePlease consult Polyroof for guidance and insert requirements. |
Skirtings and vertical work | Manufacturer guidancePlease consult Polyroof for guidance and insert requirements. |
Carrier membrane | |
Type | Not required for this system. |
Liquid-applied waterproofing | |
Type | Cold Liquid Applied Protec Resin with catalyst (two coats). |
Reinforcement | Polymat 450 (first coat). |
Surface protection | None. Paving (with pedestals). Decking (with pedestals). Polyroof Anti-slip (Quartz Sand and PolyFinish) – Regular Traffic. Guidance for specification option: Following clients request, third coat of Cold Liquid Applied Protec Resin. Broadcast in Quartz Sand, PolyFinish Sealer Coat. For further guidance, consult manufacturer. Polyroof Anti-slip (Mineral Slate) – Maintenance Traffic. Guidance for specification option: Following clients request, third coat of Cold Liquid Applied Protec Resin. Broadcast in Mineral Slate. For further guidance, consult manufacturer. Polyroof Anti-slip (ProGrip) – Maintenance Traffic. Guidance for specification option: Following clients request, one coat of ProGrip Anti-Slip Coating. For further guidance, consult manufacturer. Polyroof Anti-slip (ProGrip and PolyFinish) – Regular Traffic. Guidance for specification option: Following clients request, one coat of ProGrip Anti-Slip Coating. PolyFinish Sealer Coat. For further guidance, consult manufacturer. |
System accessories | None. Polyroof pre-formed GRP trims - drip/ upstand. Polyroof pre-formed GRP trims - fillet. Polyroof pre-formed GRP trims - termination bar. Polyroof pre-formed GRP trims - simulated metal finish - standing seam. Polyroof pre-formed GRP trims - simulated metal finish - lead roll. Polyroof pre-formed internal outlets. Polyroof pre-formed through wall outlets. Structural repair mortar. Polyroof high-density PIR. Guidance for specification option: In conjunction with Polyoorf SA carrier layer. Rockwool Hardrock Multi-Fix recovery board. Guidance for specification option: In conjunction with Polyroof SA carrier layer. Protec Matrix - detailing system. Polyroof PR rooflights. Guidance for specification option: Specify in detail separately. Polyroof fixing plates for PV cells. Polyroof fixing plates for balustrades systems. Round Lightning Conductor Clip. Polyroof fall arrest systems. Guidance for specification option: Consult manufacturer for details and insert requirements. |
Colour | Light grey. Chromite grey. Quartz grey. RAL specials. Guidance for specification option: Special order; insert requirements. BS specials. Guidance for specification option: Special order; insert requirements. |
Fire performance | Achieves Broof T4 classification in accordance with BBA certificate 09/4676. |
Cure time | 30–60 minutes. Guidance for specification option: Cured state: Tough, seamless and impermeable. |
Application temperature | 3–30°C. Guidance for specification option: The system can be installed down as low as 1°C deck temperature with the addition of Product Accelerators. |
Substrate | Existing waterproofing and build-up made good. Asphalt primed with Uni-Primer DP. |
Fall | Flat. Pitched. Flat and pitched. |
Third-party certification | BBA Certificate Number 09/4676. |
Slip resistance | Tested to BS 7976-2: 2002. |
Resistance to water penetration | Suitable for use with zero falls in accordance with BBA certificate 09/4676. |
Installation | Installation by Polyroof approved contractors. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polymer Guidance for specification option: Flexible hybrid polymer. |
Product certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Product certifications
European Technical Approval (ETA)
Protec System ETA
BBA Agrément Certificate
Protec System BBA Certificate
EPD
BREG EN EPD 000516
UK Technical Assessment (UKTA)
UK Technical Assessment Protec (UKTA-0836-22/6398)
Literature
Literature type
Polyroof Seamless Waterproofing Solutions
Modular Construction Solutions
Green Roof Addition Sheet - Protec
Protec Declaration of Performance
System TDS Protec System
Outline Specification - PR10101 Protec to Asphalt (Overlay)
Outline Specification - PR10102 Protec to Felt (Overlay)
Outline Specification - PR10103 Protec to Concrete Deck (Overlay)
Outline Specification - PR10104 Protec to GRP (Overlay)
Outline Specification - PR10106 Protec to Single-Ply (Overlay)
Case studies
Barton Hill Academy
Beckfoot Allerton Primary School
Blackfordby St Margaret’s Primary School
Durham University Gateway
Fleming Park Leisure Centre
Teesside University - Greig Building
Broughton & Yeomans Apartment Block
Burton Green Primary School
Cameron House Hotel
Castle Cove Sailing Club
Rhondda Heritage Park
Rhyl Railway Station Restoration
Kal Kitchen Accessories
Host Helix Student Accomodation
Guernsey Power Station
The Little Chapel
Queens Crescent, London
Similar products from Polyroof Products Ltd

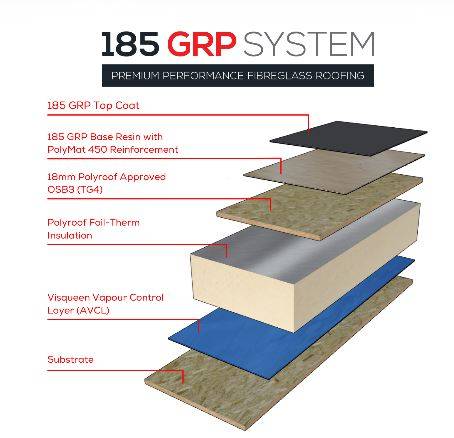

185 GRP System - Fibreglass Membrane Roofing System
