XtraFlex System - Cold-Applied Liquid Waterproofing

Verified by manufacturer 4 months ago

Polyroof Products Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

A cold-applied liquid membrane waterproofing system for flat metal roofs and gutters.

Jump to:
BOS
+44 (0)1352 735135 Website

Application

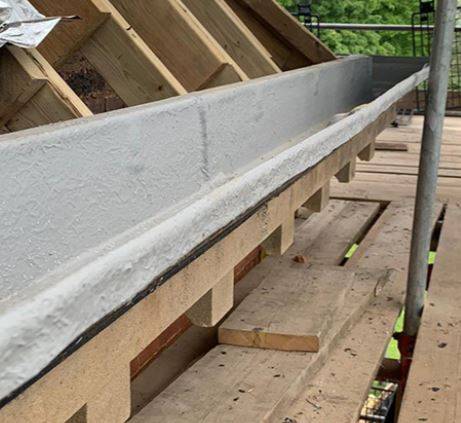

Suitable for virtually all metal roof and gutter surfaces, and concrete Finlock gutters.

Description

XtraFlex is a based on Polyroof’s tried and tested Protec technology and adapted with enhanced flexibility, making it ideal for the coating of industrial gutters and other high-expansion applications.


The RapidCure technology utilizes catalyst, accelerators and inhibitors allowing full control over cure times across a wide range of temperatures all year round. The seamless Xtraflex membrane can be applied directly to virtually all metal surfaces, concrete finlock gutters and a range of other industrial roof or gutter surfaces. It is impervious to standing water, making it ideal for areas that may hold standing water. XtraFlex is supported by Polyroof’s Approved System Guarantees for up to 20 years.


Features and benefits:

  • Enhanced flexibility suitable for industrial gutters: A highly flexible version of the Protec system capable of withstanding the expansion and contraction movements of metal substrates.
  • Impervious to standing water - suitable for gutters and other applications where standing water may occur, the presence of water ponding over the membrane has no detrimental effect on the performance of the waterproof membrane.
  • RapidCure Technology - fast application with cure times as low as 30 minutes.
  • Seamless waterproof membrane - applied as a liquid, Protec forms a seamless waterproof membrane with no joints, no welds and no weak points.
  • Cold-applied installation with zero risks from hot works: Unlike many traditional roofing materials that require open flame hot works to install, Protec is fully cold-applied meaning there are no risks of accidental fire during installation.
  • BBA Certified (Certificate no. 23/6749) with a certified lifespan of at least 25 years.
  • Manufactured in accordance with BS EN ISO 9001:2015 and BS EN 14001:2015.


Please consult manufacturer for further specification advice as required.

General information

Color

Grey

Finish

Smooth

Guidance for specification option:

Seamless, watertight finish.

Material

Polymer

Guidance for specification option:

Flexible hybrid polymer.

Length

Bespoke

Manufacturer guidance

Please refer to project specific drawings. Formed on site.

Width

Bespoke

Manufacturer guidance

Please refer to project specific drawings. Formed on site.

Height

Bespoke

Manufacturer guidance

Formed on site. Approximately 3mm thick once cured.

Warranty description

20 year

Guidance for specification option:

As standard.

25 year

Guidance for specification option:

Subject to specification and discussions with Polyroof Products Ltd.

Uniclass

Ss_30_40_30_40 Liquid-applied cold roof covering systemsPrimary

CAWS

J31/5 Cold deck roof coating

J31/110 Cold deck roof coating

Specification data - Liquid-applied cold roof covering systems

Preparation

-

Horizontal work

-

Manufacturer guidance

Please consult Polyroof for guidance and insert requirements.

Skirtings and vertical work

-

Manufacturer guidance

Please consult Polyroof for guidance and insert requirements.

Liquid-applied waterproofing

-

Type

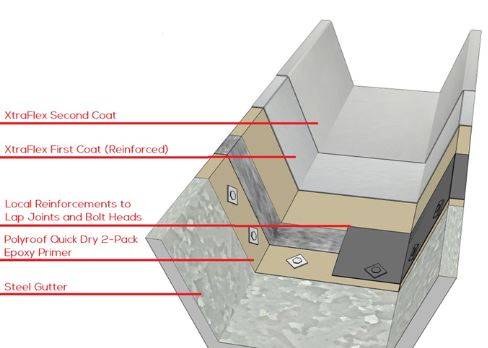

Cold liquid-applied XtraFlex resin with catalyst (two coats).

Reinforcement

Polymat 450 (first coat).

System accessories

None.

Polyroof pre-formed GRP trims - drip/ upstand.

Polyroof pre-formed GRP trims - fillet.

Polyroof pre-formed GRP trims - termination bar.

Polyroof pre-formed internal outlets.

Polyroof pre-formed through wall outlets.

Polyroof butyl lap and bolt tape.

Protec Matrix - detailing system.

Polyroof fall arrest systems.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Round Lightning Conductor Clips.

Colour

Light grey.

Cure time

30–60 minutes.

Guidance for specification option:

Cured state of tough & impermeable.

Application temperature

3–30°C.

Guidance for specification option:

The system can be installed down as low as 1°C deck temperature with the addition of Product Accelerators.

Substrate

Metal surface.

Guidance for specification option:

Primed with Polyroof Quick Dry 2-Pack Epoxy Primer.

Waterproofing

XtraFlex resin.

Installation

Installation by Polyroof approved contractors.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polymer

Guidance for specification option:

Flexible hybrid polymer.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA Certificate (23/6749)
