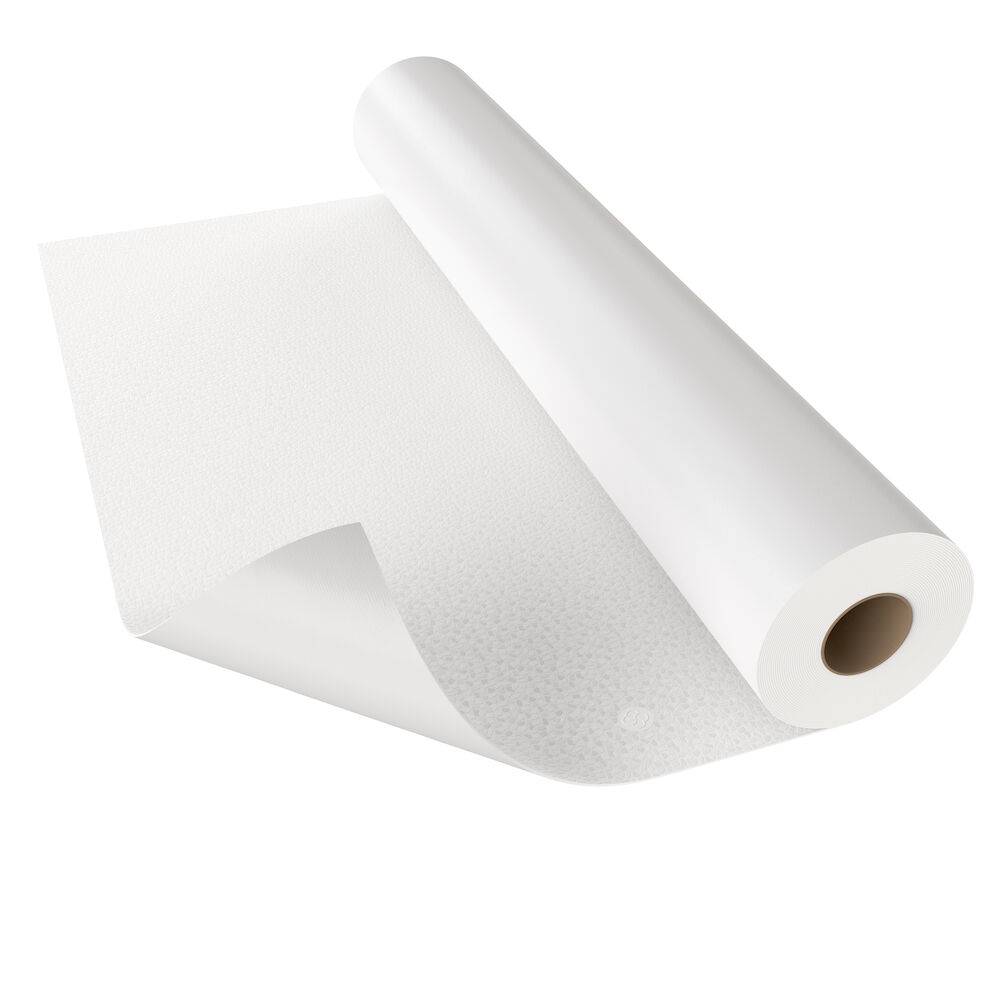

Protan FPO/TPO D 1.8 mm Membrane
Verified by manufacturer 2 days ago
Homogenous roofing membrane.
Application
Particularly well-suited for solar roofs, green roofs, and cool roofs due to its resistance to environmental, chemical, and biological impacts.
Description
A homogenous roofing membrane based on polyolefins. This product is designed for providing waterproofing details on flat and low-sloped roofs. It can be used for detailing both in an exposed roofing membrane system or protected system for extensive green roofs. It is weldable using hot air and designed to perform well in various climatic conditions.
Features and benefits:
- Superior weather and environmental resistance.
- Resistant to UV radiation.
- Outstanding flexibility for roof detailing and accessories.
- Strong joints achieved through hot air welding.
- Compatible with bitumen-based membranes.
- The product is recyclable and has a low carbon footprint.
- CE marked.
General information
Color | Grey White |
Material | Polymeric |
Shape | Rectangle |
Length | 15000 mm |
Width | 1600 mm |
Height | 1.8 mm |
Uniclass | |
CAWS | J42/28 Waterproof membrane J42/400 Waterproof membrane |
Specification data - Polymeric membranes
Classification data | |
Material | Homogenous roofing membrane based on polyolefins. |
Standard | To BS EN 13956. |
Performance characteristics | |
External fire performance | NPD. |
Reaction to fire | Class E. |
Watertightness | Pass. |
Tensile properties | ≥12 N/mm². |
Tear resistance | ≥150 N. |
Width (minimum) | 1600 mm. |
Thickness (minimum) | 1.8 mm. |
Colour | Dark Grey – F94 (~RAL 7012). Grey White – F05 (~RAL 9003). Light Grey – F91 (~RAL 7040). Silver Grey – F93 (~RAL 7001). White – F01 (~RAL 9016). |
Accessories | Internal corner (TPO) – ART. 115.2. External corner (TPO) – ART. 116.2. Pipe wrap – ART. 113.3. Guidance for specification option: Height: 180 mm. Length (diameter): 340 mm. Pipe wrap – ART. 139.2. Guidance for specification option: Height: 200 mm. Length (diameter): 120 mm. Pipe wrap – ART. 114.3. Guidance for specification option: Height: 180 mm. Length (diameter): 365 mm. Manufacturer guidanceHeight: 100 mm INTERNAL AND EXTERNAL CORNERS IN TPO are suitable for the reinforcement of the waterproofing in internal and external corners. The above elements should not be used as a substitute of the original waterproofing product, they have been created for a secondary protection and reinforcement of those areas of higher risk because of transversal and horizontal traction of the waterproofing membrane. The Internal and external corners are made of soft, flexible and UV stabilized TPO. It offers high physical, chemical and technical properties as well as a flexible product. It is highly resistant to UV rays, ozone and other atmospheric and chemical agents. It can be used in a wide temperature range and is extremely flexible at low temperatures, it is stable over time thanks to the physical and mechanical properties, which therefore assure maximum performance throughout its lifespan. |
Elongation | ≥600%. |
Resistance to impact | ≥800 mm. |
Ultraviolet (UV) resistance | Exposure to UV: Pass, >5000h. |
Shear resistance of joints (to EN 12317-2) | ≥500 N/50 mm. |
Static load resistance | ≥20 kg. |
Sustainability data
Material | Polymeric |
Recyclability | Can be recycled. |
