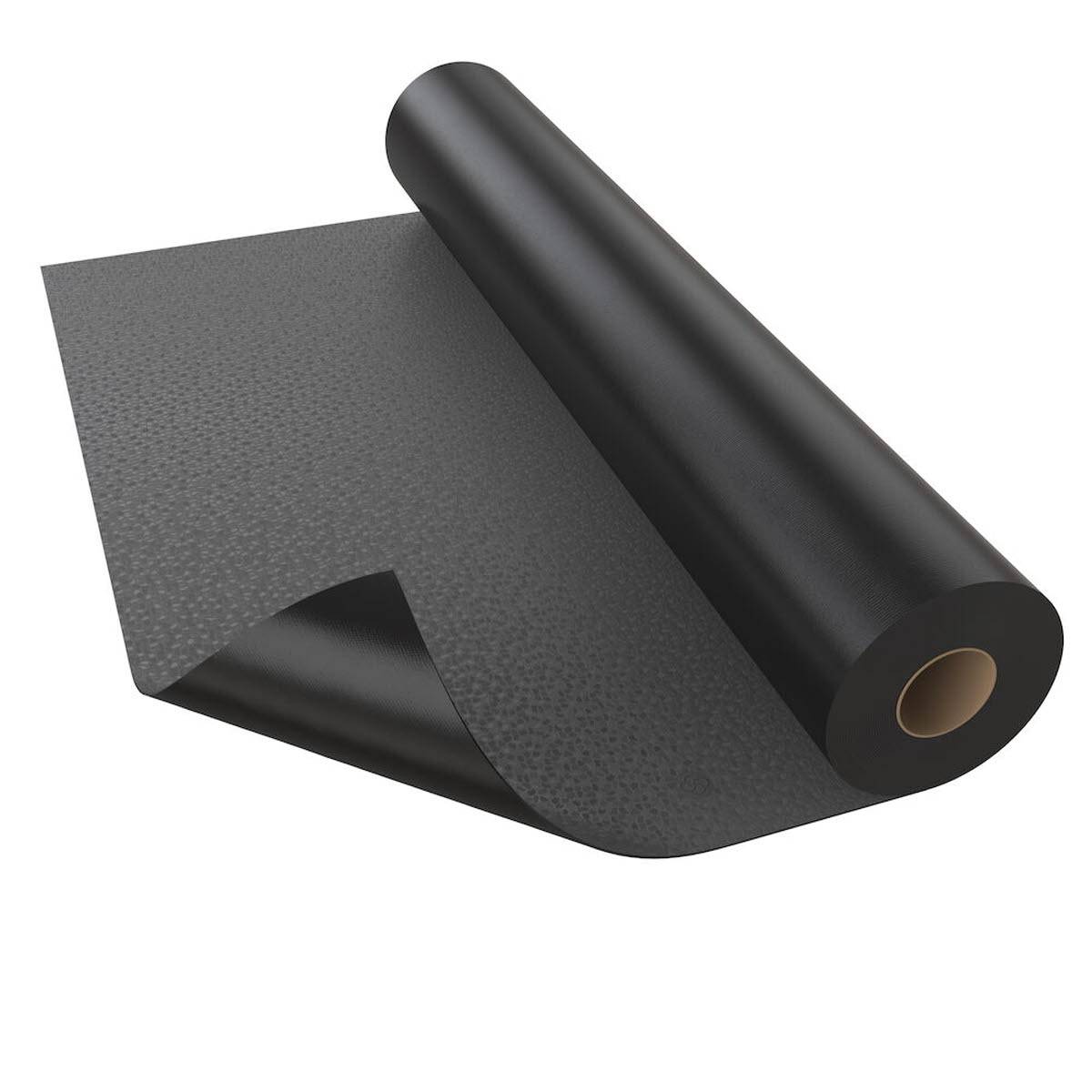

Protan BP Membrane
Verified by manufacturer 2 days ago
Thermoplastic roofing membrane.
Application
Protan BP and BPX are used for exposed roofs which, together with specified accessories, are used for water retention as an additional function in the Protan BlueProof roofing system. The membranes can be mechanically attached to the load-bearing layer of the roof, or installed as vacuum roofs.
Description
Protan BP and BPX are thermoplastic roofing membranes with extra high strength and quality. Protan BPX has polyester felt attached to the bottom side. The membranes are particularly strong and extra robust and have good properties at both high and low temperatures. They are also fire retardant, has good resistance to UV radiation and pollution.
Features and benefits:
- The membrane features a textured surface for increased friction and an aesthetic finish. Compared with smooth membranes, this provides a significant safety advantage during both installation and maintenance.
- The membrane joints are formed by hot air welding, resulting in a completely homogenous seam.
- Installation is safe and does not require an open flame.
- The membrane can be installed in all weather conditions.
- Protan membrane is recyclable and offers a low carbon footprint.
- CE marked.
General information
Color | Grey Red Green White Black |
Finish | Textured |
Material | Polymeric |
Shape | Rectangle |
Length | 15000 mm |
Width | 1000 mm |
Height | 1.8 mm |
Uniclass | |
CAWS | J42/28 Waterproof membrane J42/400 Waterproof membrane |
Specification data - Polymeric membranes
Classification data | |
Material | Thermoplastic roofing membrane. |
Standard | To BS EN 13953. |
Performance characteristics | |
External fire performance | BROOF(t2). |
Reaction to fire | Class E. |
Watertightness | 10 kPa. |
Tensile properties | ≥1800/1400 N/50mm. |
Tear resistance | ≥300/450 N/50mm. |
Width (minimum) | 1000 mm. |
Thickness (minimum) | 1.8 mm. |
Colour | Black, FX9. Cool Roof (white), F01. Dark grey, F94. Iridescent green, F41. Red, F12. Manufacturer guidanceUpper surface colours. Other colours can be delivered to order. Consult manufacturer for details and insert requirements. Underside colour: Dark grey. |
Elongation | ≥15/ 15% |
Dimensional stability | ± 0.5% |
Resistance to static loading - 20kg load | ≥30 Kg. |
Resistance to impact | ≥600 mm. |
Shear resistance of joints (to EN 12317-2) | ≥1000 N/50mm. |
Water vapour resistance | 27 m. |
Sustainability data
Material | Polymeric |
Recyclability | Can be recycled. |
Literature
Protan BP and PBX Membranes
