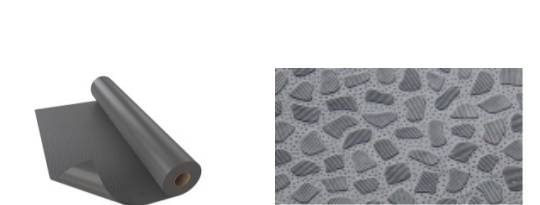

Protan D 1.8 mm Membrane
Verified by manufacturer 2 days ago
Thermoplastic waterproofing membrane.
Application
Primarily used for detailing of all types of Protan PVC roof and waterproofing membrane systems.
Description
A high quality homogeneous thermoplastic waterproofing membrane. The membrane contains stabilizers, which makes the product resistant to high and low temperatures, UV-resistant.
Features and benefits:
- The membrane has a textured surface that provides increased friction and an aesthetic finish.
- The membrane is welded together using hot air, resulting in a homogeneous joint.
- Installation is safe, requiring no open flame.
- The membrane can be installed regardless of weather conditions.
- Offers good elongation properties, making it well suited for detail work.
- The membrane is recyclable and has a low carbon footprint.
- CE marked.
General information
Color | Grey |
Material | Polymeric |
Shape | Rectangle |
Length | 10000 mm |
Width | 1000 mm |
Height | 1.8 mm |
Uniclass | |
CAWS | J42/28 Waterproof membrane J42/400 Waterproof membrane |
Specification data - Polymeric membranes
Classification data | |
Material | Thermoplastic roofing membrane. |
Standard | To BS EN 13953. |
Performance characteristics | |
Reaction to fire | Class E. |
Watertightness | 400 kPa/72h. |
Tensile properties | ≥15 N/mm. |
Tear resistance | ≥500 N/mm. |
Width (minimum) | 1000 mm. |
Thickness (minimum) | 1.8 mm. |
Colour | Dark grey, F94. Light grey, F91. |
Elongation | ≥300%. |
Resistance to impact | ≥300 mm. |
Sustainability data
Material | Polymeric |
Recyclability | Can be recycled. |
Literature
Protan D1.8 mm Membrane
