Verified by manufacturer 9 months ago

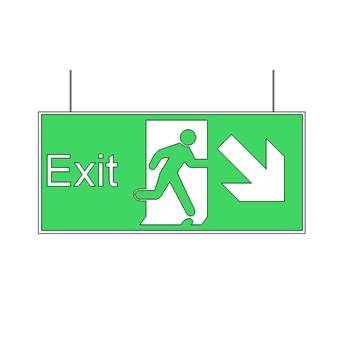

Generic ceiling suspended 'Fire escape route: Progress down to the right' signage.
Generic ceiling suspended 'Fire escape route: Progress down to the right' signage, in a selection of typical standard dimensions with parameters to control visibility and orientation of 2D detail in plan.
Size options:
Color | Green White |
Shape | Rectangle |
Length | 340 mm 400 mm 450 mm |
Width | 120 mm 150 mm 200 mm |
Uniclass |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 2 | |
Revit 2016 | 2 |
