Progress down from here

Verified by manufacturer 8 months ago

NBS

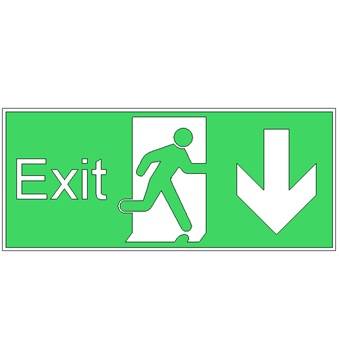

Generic ‘Fire escape route: Progress down from here' signage object.

Jump to:
BOS
+44 (0)345 4569594 Website

Description

Generic ‘Fire escape route: Progress down from here' signage, in a selection of typical standard dimensions with parameters to control visibility and orientation of 2D detail in plan.

Size options:

  • 450 x 200 mm
  • 400 x 150 mm
  • 340 x 120 mm

General information

Color

Green

White

Shape

Rectangle

Length

340 mm

400 mm

450 mm

Width

120 mm

150 mm

200 mm

Uniclass

Pr_40_10_77_32 Fire escape route signsPrimary

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

2

Revit

Revit 2016

2
