Premium Range Metal Door Access Panels - Access Panels

Verified by manufacturer 3 months ago

The Access Panel Company Ltd Third party certifications:
  • UKAS

    UKAS

    Certificate type

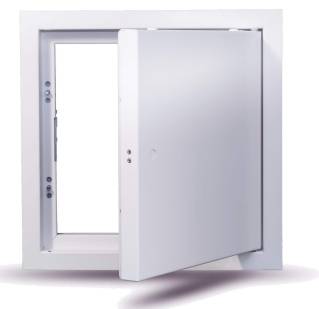

Acoustic and Fire Rated Premium metal door access panels.

Jump to:
+44 (0)1724 853 090 Website

Application

  • Premium Metal Door Access Panels Provide openings in ceilings and walls for access to building engineering services.
  • Can be used in all types of wall or ceiling construction.

Description

Premium range access panels provide high quality openings in ceilings and walls for access to building engineering services.


Features and benefits:

  • The mild steel doors are finished in powder-coated white and can be over painted to blend with the surrounding surface.
  • There are two frame options. A beaded frame type (SBF) with perforated flange to key into the surrounding membrane. This is used where the surface has yet to be skimmed or tape and jointed. Or the picture frame (PF), where the solid flange sits on the surface of the wall or ceiling. This covers the cut edge of the aperture and is used when the surface has already been finished and decorated.
  • Supplied as standard with the patented Spring Loaded Invisible Keyhole (SLIK) system.
  • Versatility to be specified with insulation, fire rating, acoustic reduction and a range of locking mechanisms.

General information

Color

White

Other

Finish

Galvanized

Powder-coated

Material

Steel

Shape

Square

Rectangle

Length

200 mm

300 mm

450 mm

550 mm

600 mm

Show more

Width

200 mm

300 mm

450 mm

550 mm

600 mm

Height

50 mm

Warranty description

Five year

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

K10/115 Metal stud partition system

K10/125 Metal stud partition system

K10/15 Lining on timber

K10/215 Suspended ceiling system

K10/220 Proprietary suspended ceiling system

K10/245 Ceiling lining on timber

K10/25 Ceiling lining on timber

K10/30 Metal stud

K10/430 Access panels

K10/50 Suspended ceiling system on metal framing

K40/10 Unit/ modular suspended ceilings

K40/105 Suspended ceiling system

K40/115 Unit/ modular suspended ceiling system

K40/135 Board-suspended ceiling system

K40/280 Access units

L20/630 Hatches

Specification data - Access panels

Fire performance

-

Fire resistance

Non-fire rated.

60 minutes to BS 476-22.

120 minutes to BS 476-22

Reaction to fire classification

To BS476-22 and BS EN 1634-1.

Position

Ceiling mounted.

Wall mounted.

Size

200 x 200 mm.

300 x 300 mm.

450 x 450 mm.

550 x 550 mm.

600 x 300 mm.

600 x 600 mm.

900 x 600 mm.

1200 x 550 mm.

1200 x 600 mm.

Custom.

Guidance for specification option:

Bespoke sizes available, consult with manufacturer.

Frame

Picture (PF).

Beaded (SBF).

Panel

-

Material

Steel.

Guidance for specification option:

The door tray and frame are formed from 1.0 and 1.2 mm Zintec electrogalvanized mild steel with a 25 mm wide perforated or solid frame.

Integral finish

Powder coated.

Guidance for specification option:

Factory finished polyester powder coated RAL 9010 (other colours available on request).

Latch or lock type

Square drive operated lock with ‘SLIK’ invisible keyhole.

Guidance for specification option:

Standard.

Euro cylinder.

Radial pin tumbler.

Three point lock.

Operation

Pivot or piano hinge, outward opening.

Guidance for specification option:

Using the "T" key supplied, push the SLIK invisible keyhole system aside, engage the key into the locks then open and close while supporting the door. The SLIK system springs back automatically to conceal the keyhole.

Sound insulation

Not required.

To BS EN ISO 140-3:1995, 63 dB Rw.

Guidance for specification option:

Available to a maximum reduction of 63 dB Rw. Testing carried out under laboratory conditions to BS EN ISO 140-3:1995 by an independent test centre.

Air tightness

-

Manufacturer guidance

Thermally insulated and air-sealed ranges available complying with building regulations parts L1 and L2, BS EN 12207:2000, BS EN 1026:2000. Consult manufacturer for details.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Recyclability

Recyclable

Third party certifications

UKAS

20210527-002114C Premium Metal Door

Literature

Premium Range Access Panel Data Sheet

Premium Range Access Panel Data Sheet

Premium Range Acoustic Panel Data Sheet

Premium Range Acoustic Panel Data Sheet

Premium Range Metal Door Beaded Frame Generic Technical Drawing

Premium Range Metal Door Beaded Frame Generic Technical Drawing

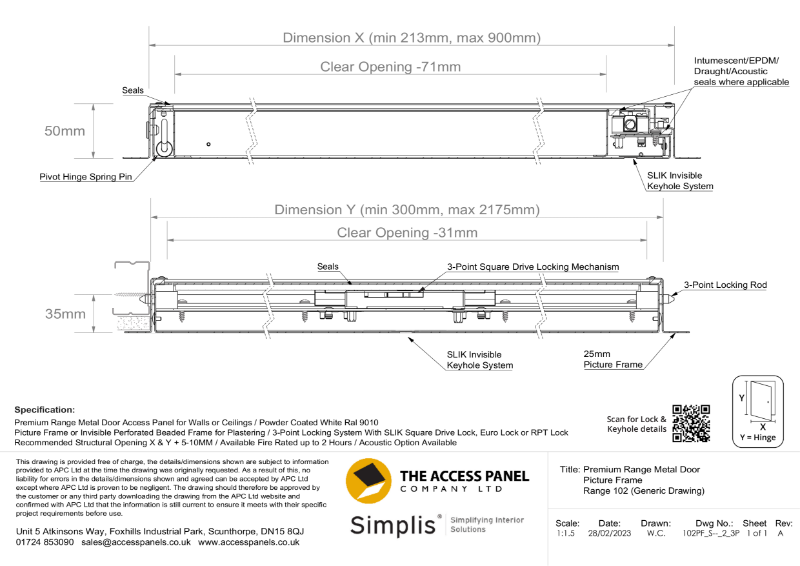

Premium Range Metal Door Picture Frame Technical Drawing
