Alto Ceiling Hatch
Verified by manufacturer 4 months ago
Continuous Piano Hinge
Continuous Piano Hinge

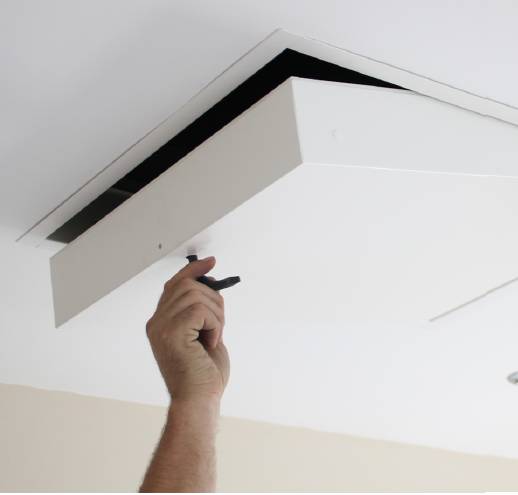

The Alto Ceiling Hatch is an insulated, acoustic and fire-rated ceiling hatch with continuous piano hinge or pivoting hinge versions.
Application
Suitable for domestic and commercial use.
Description
Alto ceiling hatches provide a high quality opening in ceilings for ease of access.
Features and benefits:
- Minimalist look.
- Finished in powder coated white and can be painted over to blend into the surrounding surface.
- Spring loaded invisible keyhole system.
- Picture frame or beaded frame option.
- Two hour or one hour fire rating.
- Pre-punched fixing holes for simple installation.
- Continuous piano hinge or pivoting hinge versions.
- Supplied as standard with the invisible keyhole SLIK system.
- Complies with building regulations for insulation, air tightness, L1 and L2, NHBC size requirements, robust documentation and is fire rated.
General information
Color | White |
Finish | Powder-coated |
Material | Zintec steel |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | 90 mm 94 mm |
Warranty description | Five year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Fire performance | |
Fire resistance | 120 minutes.Manufacturer guidanceFire testing undertaken independently meeting EN and BS standards in UKAS approved test laboratories. Certification available upon request; consult manufacturer. |
Position | Ceiling-mounted. |
Size | Bespoke.Guidance for specification option: Manufactured to order; consult manufacturer for details and insert requirements. |
Frame | Beaded frame type (SBF).Picture frame (PF). |
Panel | |
Material | Zintec electrogalvanized mild steel. |
Integral finish | Polyester powder-coated, white RAL 9010, 20% gloss. |
Latch or lock type | Square drive operated lock.Guidance for specification option: Concealed by the 'SLIK' invisible keyhole system as standard. Euro cylinder.Guidance for specification option: Optional; consult manufacturer. Radial pin tumbler.Guidance for specification option: Optional; consult manufacturer. Three-point lock.Guidance for specification option: Optional; consult manufacturer. |
Operation | Continuous steel piano hinge system, downward opening. |
Integral accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Insulation | 100 mm Rockwool. Guidance for specification option: U-Value: 0.35 W/m³K. |
AcousticRating | To BS EN ISO140-3: 1995, maximum reduction of 63 dB. Guidance for specification option: Independently tested; consult manufacturer for details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
Literature
Alto Ceiling Hatch - Continuous Piano Hinge Version

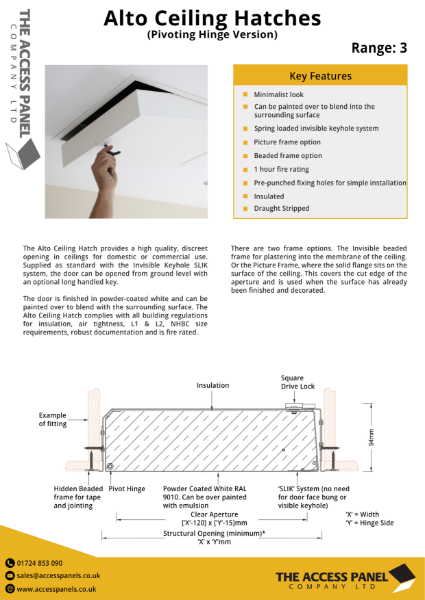

Alto Ceiling Hatch - Pivoting Hinge Version
