Verified by manufacturer 3 days ago

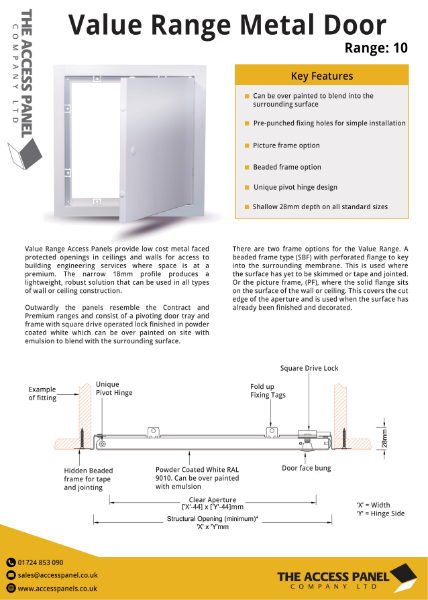

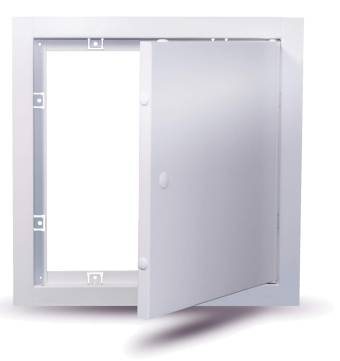

Value range access panels provide very low cost metal-faced protected openings in ceilings and walls for access to building engineering services where space is at a premium.
Value range access panels provide very low cost metal-faced protected openings in ceilings and walls for access to building engineering services where space is at a premium.
Features and benefits:
Color | White Other |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Square Rectangle |
Length | 150 mm 200 mm 300 mm 450 mm 600 mm |
Width | 150 mm 200 mm 300 mm 450 mm 600 mm |
Warranty description | Five year |
Uniclass | |
CAWS | K40/135 Board-suspended ceiling system K40/10 Unit/ modular suspended ceilings K10/50 Suspended ceiling system on metal framing L20/630 Hatches K10/25 Ceiling lining on timber K10/30 Metal stud K10/15 Lining on timber K40/280 Access units K40/115 Unit/ modular suspended ceiling system K40/105 Suspended ceiling system K10/430 Access panels K10/245 Ceiling lining on timber K10/220 Proprietary suspended ceiling system K10/215 Suspended ceiling system K10/125 Metal stud partition system K10/115 Metal stud partition system |
Classification data | |
Fire performance | |
Fire resistance | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Reaction to fire classification | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Position | Ceiling mounted. Wall mounted. |
Size | 150 x 150 mm. 200 x 200 mm. 300 x 300 mm. 450 x 450 mm. 600 x 300 mm. 600 x 600 mm. Custom. Guidance for specification option: Bespoke sizes available, consult with manufacturer and insert requirements. |
Frame | Beaded (SBF). Guidance for specification option: Beaded frame type with perforated flange to key into the surrounding membrane. This is used where the surface has yet to be skimmed or tape and jointed. Picture (PF). Guidance for specification option: The solid flange sits on the surface of the wall or ceiling. This covers the cut edge of the aperture and is used when the surface has already been finished and decorated. |
Panel | |
Material | Steel. Guidance for specification option: The door tray and frame are formed from 1.0 and 1.2 mm Zintec electrogalvanized mild steel with a 25 mm-wide frame. |
Integral finish | Polyester powder-coated, RAL 9010. Guidance for specification option: Factory finished. Manufacturer guidanceOther colours available on request; consult manufacturer for details. |
Latch or lock type | Square drive operated lock. Guidance for specification option: Keyhole concealed by white plastic cap. |
Operation | Pivot hinge, outward opening. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
Recyclability | Recyclable |
