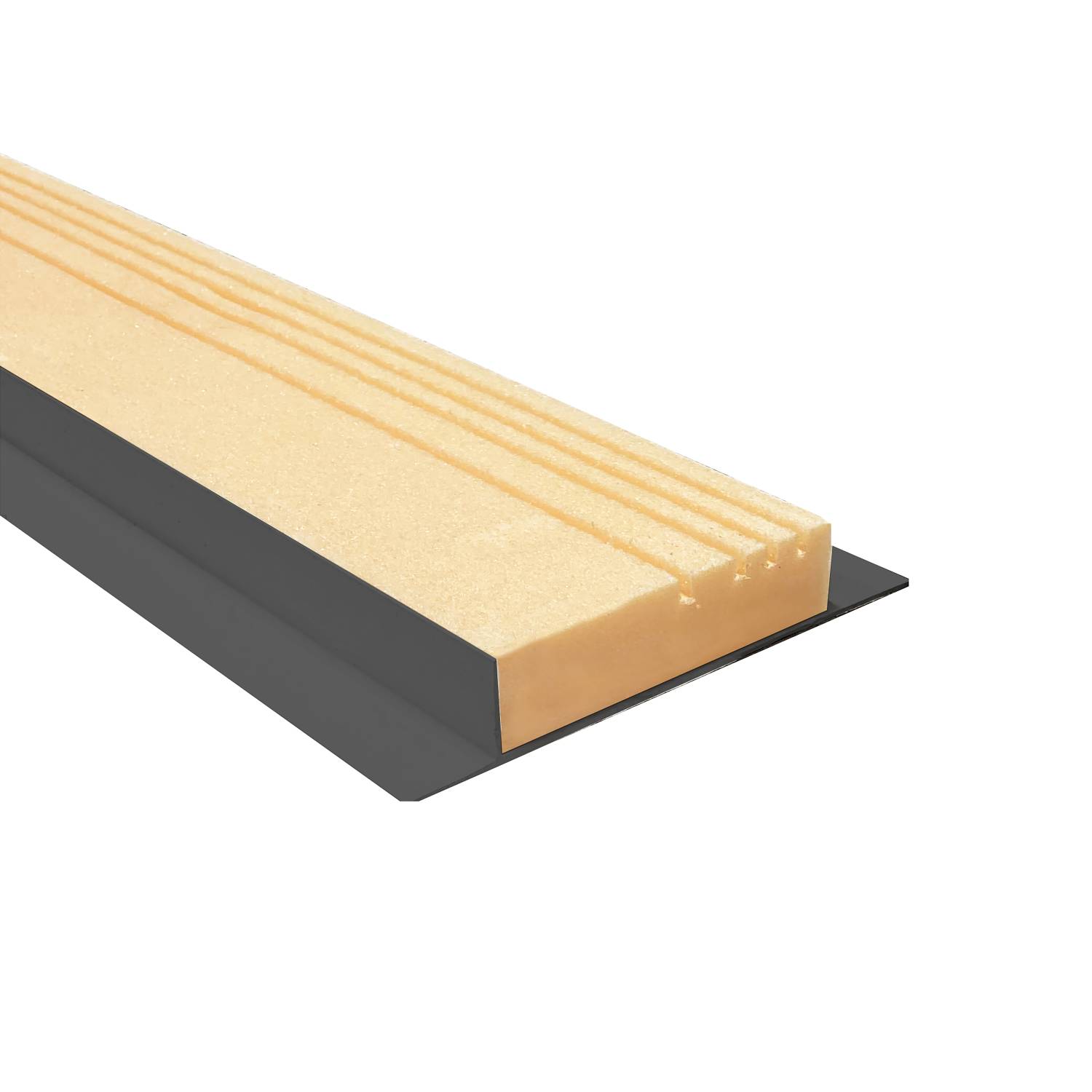

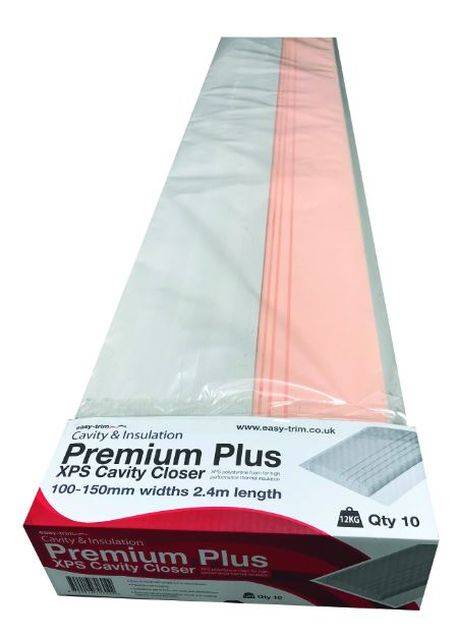

Premium Plus XPS Cavity Closer
Verified by manufacturer 18 days ago
ET/MCCS/100
ET/MCCS/100
Easy-trim cavity closer with a PVC outer, acting as a damp proof barrier and an insulated XPS core that is moisture resistant, providing compressive strength and an excellent thermal performance.
Application
Suitable for use in both new build and refurbishment, they are an easy way to achieve building regulations compliance when closing cavities with unknown widths. Available in two profiles to fit cavity widths between 50—150 mm.
Description
Extruded polystyrene (XPS) cavity closer, designed for closing cavities around openings in masonry, timber frame and steel frame wall constructions.
Features and benefits:
- Available in two profile sizes to fit cavity widths between 50–150 mm.
- Manufactured from extruded polystyrene foam (XPS) for easier cutting. Cut-to-size indicators are included for guidance.
- Fully ridged polyvinyl chloride (PVC) cavity closure.
- Helps to prevent cold bridging.
- Reduces the risk of condensation, mould and moisture migration across the cavity.
- Regulation and British Standard compliant.
Durability:
- The continuous service temperature limits of the insulating foam are - 50 to +70º C.
Vapour resistance:
- XPS - 625 MNs/ g.m, when tested in accordance with EN 12086.
Moisture absorption:
- The moisture absorption of XPS is 0.6% by volume when tested in accordance with EN 12087.
General information
Color | Black Orange Manufacturer guidancePeach |
Material | PVC-U Guidance for specification option: Outer casing material. XPS Guidance for specification option: Insulation material. |
Shape | Rectangle |
Size | Guidance for specification option: 2.4 m. |
Uniclass | |
CAWS | F30/18 Cavity closers F30/180 Cavity closers |
Product range |
Specification data - Plastics cavity closers
Third party certification | Regulation and British Standard compliant. |
To fit cavity width | 50–100 mm. |
Length (effective) | 2400 mm. |
Thermal insulation | To BS EN 13163: 2012 +A2: 2016. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Cavity Closer XPS Datasheet
