PREMANT - Rigid Insulated Pipe

Name: PREMANT - Rigid Insulated Pipe
Brand: BRUGG Pipe Systems UK Ltd
SKU: oQjFsyKb4LURESRGy554pj

Verified by manufacturer 2 days ago

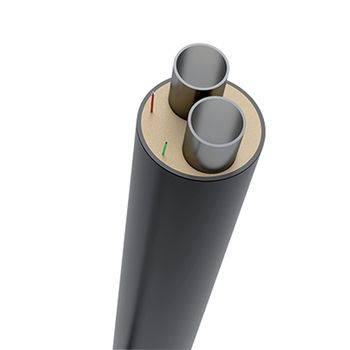

PREMANT DUO

BRUGG Pipe Systems UK Ltd

Product certifications:

EPD
Certificate type

A rigid steel pipe for district heating and industrial applications.

Jump to:

Request BIM

01268 759567 Website

Application

Above-ground and underground pipes for district and local heating networks
Thermally insulated transport of liquids
Waste Water
Cooling

Description

PREMANT is a rigid, thermally insulated and monitorable pipe system with a robust PE casing. It offers maximum operational reliability for the transport of district heating and other media.

Features and benefits:

UNO and DUO pipes available.
Operating temperature: up to a maximum 144°C (UNO); 130°C (DUO).
Operating pressure: up to 25 bar.
Dimensions: DN 20–DN 1000 (UNO); DN 20–DN 250 (DUO).
Carrier pipe: steel.
Insulation: polyurethane (PUR).

General information

Color	Black
Material	High density polyethylene (HDPE) Steel Stainless steel Polyurethane (PUR)
Shape	Circle
Length	Bespoke
Width	90 mm 110 mm 125 mm 140 mm 160 mm 180 mm 200 mm 225 mm 250 mm 280 mm 315 mm 355 mm 400 mm 450 mm 500 mm 560 mm 630 mm 670 mm 710 mm 800 mm 900 mm 1000 mm 1100 mm 1200 mm Show more
Height	90 mm 110 mm 125 mm 140 mm 160 mm 180 mm 200 mm 225 mm 250 mm 280 mm 315 mm 355 mm 400 mm 450 mm 500 mm 560 mm 630 mm 670 mm 710 mm 800 mm 900 mm 1000 mm 1100 mm 1200 mm Show more

Uniclass	Pr_65_52_63_68 Pre-insulated pipesPrimary
CAWS	T90/110 Heating system T90/410 Thermoplastics pipework

Specification data - Pre-insulated pipes

Classification data
Standards	-
Pipes	Pipe assembly of steel service pipes, polyurethane thermal insulation and outer casing of polyethylene to EN 253.
Fittings	Fitting assemblies of steel service pipes, polyurethane thermal insulation and outer casing of polyethylene, to EN 448.
Joint assembly	Joint assembly for steel service pipes, polyurethane thermal insulation and outer casing of polyethylene, to EN 489-1.
Valve assembly	Steel valve assembly for steel service pipes, polyurethane thermal insulation and outer casing of polyethylene, to EN 488.
Environmental performance	-
Environmental rating	Manufacturer's standard.
Embodied carbon	Manufacturer's standard.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	Manufacturer's standard.
Recyclability	Manufacturer's standard.
Third-party certification	Euroheat & Power Certified.
Accessories	Elbow pipe. Bend, with equal legs 90°. Bend, with equal legs 45°. T-piece, 90°. Y-pipe, type G; straight. Y-pipe, type W; angled. Fixed point. Vent. Ball valve. Sleeve joint, shrink sleeve, non-cross-linked. Sleeve joint, shrink sleeve, cross-linked. Sleeve joints, reduction sleeves. Sleeve joints, fitting sleeves. Sleeve joints, shrink-on end sleeve. Brugg VISUCON. Wall sealing ring. Pipe warning tape. Shrink-on closure/ end cap. Rigid foam bar. Ring seal. Expansion pad.
Pipe diameter	DN 20. Guidance for specification option: Steel inner pipe: 26.9 x 2.6 mm. DN 25. Guidance for specification option: Steel inner pipe: 33.7 x 2.6 mm. DN 32. Guidance for specification option: Steel inner pipe: 42.4 x 2.6 mm. DN 40. Guidance for specification option: Steel inner pipe: 48.3 x 2.6 mm. DN 50. Guidance for specification option: Steel inner pipe: 60.3 x 2.9 mm. DN 65. Guidance for specification option: Steel inner pipe: 76.1 x 2.9 mm. DN 80. Guidance for specification option: Steel inner pipe: 88.9 x 3.2 mm. DN 100. Guidance for specification option: Steel inner pipe: 114.3 x 3.6 mm. DN 125. Guidance for specification option: Steel inner pipe: 139.7 x 3.6 mm. DN 150. Guidance for specification option: Steel inner pipe: 168.3 x 4.0 mm. DN 200. Guidance for specification option: Steel inner pipe: 219.1 x 4.5 mm.
Pipe material	Carrier: steel. Insulation: polyurethane (PUR). Casing: high-density polyethylene (PE-HD).
Operating pressure (maximum)	25 bar.
Insulation	Thickness category 1. Thickness category 2. Thickness category 3. Manufacturer guidance Refer to manufacturer's literature for details.
Integral accessories	Monitoring wires.

Sustainability data

Country of product manufacture	Switzerland Guidance for specification option: The assembly takes place at the production facilities in Kleindöttingen, Switzerland and Nordhausen, Germany.
Material	High density polyethylene (HDPE) Steel Stainless steel Polyurethane (PUR)
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 40.8
Recycled content As defined in clause 7.8 of BS EN ISO 14021	14 %
Expected Life	30 year Guidance for specification option: At a continuous operating temperature of 144°C.
