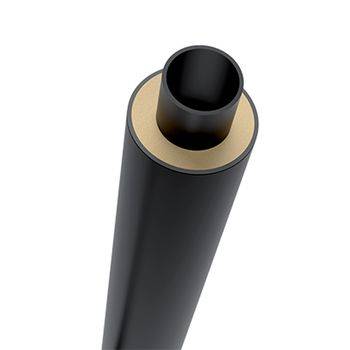

COOLMANT - Plastic Casing Pipe System
Verified by manufacturer 3 days ago
COOLMANT Ø 125–315 mm/ SDR 11 (16 bar)
COOLMANT Ø 125–315 mm/ SDR 11 (16 bar)
Certificate of Conformity
Certificate type
EPD
Certificate type
Rigid plastic casing pipe system with PE-100 medium pipes for district cooling and industrial applications.
Application
Main and distribution pipes in local and district cooling networks, insulated transportation of cold water.
Description
COOLMANT is BRUGG Pipes’ rigid plastic casing pipe system with medium pipes made of PE-100. It is specially developed for use in local and district cooling networks (main and distribution pipes), industrial applications and, under certain operating conditions, for combined heat pump systems (for cooling and heating). The medium pipes are also suitable for use as drinking water pipes, enabling versatile applications in supply and infrastructure.
Features and benefits:
- Factory-insulated, rigid composite pipe system with excellent insulation properties.
- Medium pipe made of high-density polyethylene (PE-100) with high chemical resistance.
- Insulation consists of fine-pored, CFC-free polyurethane rigid foam (PUR).
- Outer jacket complies with EN 253 for plastic-jacketed pipes, providing mechanical protection and moisture resistance.
- Suitable for installation at outdoor temperatures down to 0°C.
- Pipe connections via standard electrofusion fittings, polyfusion welding technology, or suitable screw connections.
- Tested and compliant with DIN EN 17415-1 for district cooling pipes.
- Good resistance to chemicals and suitable for use with ethylene glycol or other additives.
- Compact pipe structure prevents longitudinal flow of water if damaged and absorbs thermally-induced length changes.
- Available in SDR 11/ 16 bar and SDR 17/ 10 bar pressure ratings with various dimensions.
- Lengths of 5/ 10 m standard, with other lengths available on request.
General information
Color | Black |
Finish | Smooth |
Material | Polyethylene Polyurethane |
Shape | Circle |
Length | 5000 mm 10000 mm |
Width | 225 mm 250 mm 280 mm 315 mm 355 mm |
Height | 225 mm 250 mm 280 mm 315 mm 355 mm |
Uniclass | |
CAWS | S90/540 Thermoplastics pipework |
Specification data - Pre-insulated pipes
Classification data | |
Standards | |
Pipes | Pipe system to DIN EN 17415-1. Carrier pipe to DIN EN 12201, DIN 8074 and DIN 8075. |
Environmental performance | |
Environmental rating | Manufacturer's standard. |
Embodied carbon | Manufacturer's standard. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Recyclability | Manufacturer's standard. |
Accessories | Bend, 90°. Joint (PE-HD shrink sleeve). T-connection. Electrofusion fittings, T-piece equal. Electrofusion fittings, Angle piece, 90°. Electrofusion fittings, T-piece equal (without welding socket). Electrofusion fittings, Angle piece, 90° (without welding socket). Electro-welded sleeves. Shrink-on end cap, UNO. End cap LD-PE, UNO. Wall sealing ring. Pipe warning tape. |
Pipe diameter | 225 mm (Type 125/225). Guidance for specification option: PE inner pipe: 125 x 11.4 mm. 225 mm (Type 140/225). Guidance for specification option: PE inner pipe: 140 x 12.7 mm. 250 mm (Type 160/250). Guidance for specification option: PE inner pipe: 160 x 14.6 mm. 280 mm (Type 180/280). Guidance for specification option: PE inner pipe: 180 x 16.4 mm. 315 mm (Type 200/315). Guidance for specification option: PE inner pipe: 200 x 18.2 mm. 315 mm (Type 225/315). Guidance for specification option: PE inner pipe: 225 x 20.5 mm. 355 mm (Type 250/355). Guidance for specification option: PE inner pipe: 250 x 22.7 mm. 400 mm (Type 280/400). Guidance for specification option: PE inner pipe: 280 x 25.4 mm. 450 mm (Type 315/450). Guidance for specification option: PE inner pipe: 315 x 28.6 mm. 500 mm (Type 355/500). Guidance for specification option: PE inner pipe: 355 x 32.2 mm. 560 mm (Type 400/560). Guidance for specification option: PE inner pipe: 400 x 36.3 mm. 630 mm (Type 450/630). Guidance for specification option: PE inner pipe: 450 x 40.9 mm. |
Pipe material | Carrier: polyethylene (PE) Insulation: polyurethane (PUR). Casing: polyethylene (PE). |
Operating pressure (maximum) | 16 bar. |
Sustainability data
Material | Polyethylene Polyurethane |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 40.8 | |
Expected Life | 50 year |
Product certifications
Product certifications
Certification type
Certificate of Conformity
COOLMANT Certificate of Conformity
EPD
Environmental Product Declaration
