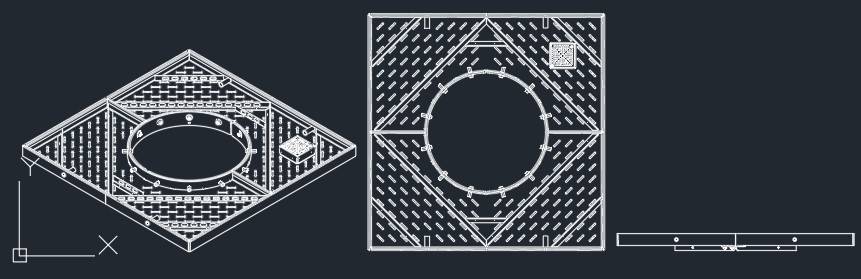

Precast Tree Grilles
Verified by manufacturer 4 months ago
ARBPC10A - Precast Arboresin
ARBPC10A - Precast Arboresin
Fully integrated precast tree grille systems.
Application
Urban tree planting applications.
Description
The tree grille systems consist of steel trays supplied prefilled with stone surfacing (Precast ArboResin) or granite sett surfacing (Precast SettStone). Integrated irrigation systems are included.
Features and benefits:
- Heavy duty galvanized support frame.
- Anti-theft lugs and central locking ring.
- Stainless steel fixings.
- Fully compatible with GreenBlue Urban below ground systems.
- Steel tray system prevents long term cracking and deterioration.
- Porous systems, suitable for perfect for SuDS applications.
- Heelproof and wheelchair friendly.
- Prevents compaction of soil.
- Permits natural irrigation and aeration of soil.
- Can be disassembled if needed for major tree maintenance.
- Design and built to be strong enough for light vehicular overrun.
General information
Color | Brown Black |
Material | Steel Stone |
Shape | Square |
Length | 1000 mm 1200 mm 1500 mm 1800 mm 2000 mm Manufacturer guidanceOpening size: 600 mm diameter. |
Width | 1000 mm 1200 mm 1500 mm 1800 mm 2000 mm |
Height | 71 mm 81 mm 150 mm |
Uniclass | |
CAWS | Q10/305 Tree grilles and surrounds Q50/262 Tree grilles Q50/37 Tree grilles |
Specification data - Tree grilles
Material | Galvanized steel frame and stone surfacing infill. |
Finish | Galvanized. |
Colour | Brittany bronze. |
Shape | Square. |
Size | 1000 x 1000 x 71 mm. |
Internal aperture | 500 mm. |
Accessories | None.Spare fixing kit.Guard to grille fixing pack. |
Load capacity | 1.5 tonne (maximum) slow moving vehicle load. |
Options | None. Heel safe/ DDA. HGV loading. Slip resistance. Manufacturer guidanceConsult manufacturer and insert requirements. |
Permeability | Manufacturer guidanceFree-draining. Fines drain through keeping the stone clear. The precast tray system has no subsurface ensuring long-term permeability. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Stone |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceGBU Target: Carbon Neutral 2020. |
Recyclability | 100% recyclable |
Expected Life | 100 year |
Literature
GBU Precast Arboresin Tree Grille Datasheet
GBU Precast Settstone Tree Grille Datasheet
