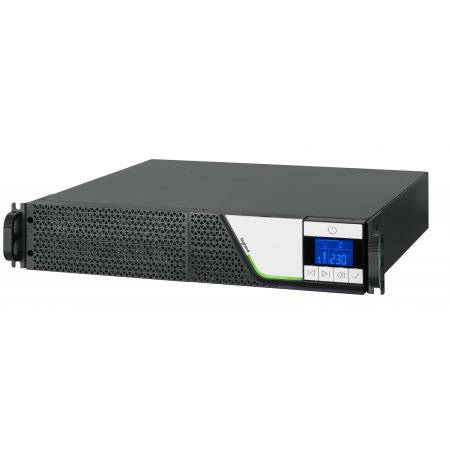

Single Phase Rackmount UPS Systems
Single Phase Rackmount UPS Systems
A range of uninterruptible power supply (UPS) systems for businesses, institutions and critical infrastructure.
Application
- Single phase UPS systems are suitable for smaller scale applications, including offices, retail environments, IT installations and some hospital applications.
- Three Phase UPS Systems are suitable for safeguarding critical infrastructure, such as data centres, industrial operations, and large-scale networks.
- Central Power Supply Systems (CPSS) designed to support life safety equipment, including emergency lighting, fire detection systems and safety alarms in public buildings, hospitals, or other critical facilities.
Description
Legrand offers a comprehensive range of Uninterruptible Power Supply (UPS) systems designed for businesses, institutions and critical infrastructure.
The range includes Single Phase UPS Systems, Three Phase UPS Systems, and Central Power Supply Systems (CPSS).
General information
Color | Black White |
Finish | Other |
Material | Other |
Shape | Rectangle |
Length | 513 mm 440 mm 557 mm 600 mm 500 mm |
Width | 440 mm 170 mm 414 mm 600 mm 900 mm |
Height | 44 mm 88 mm 132 mm 238 mm 1370 mm |
Warranty description | Two year |
Uniclass | |
CAWS | W53/380 Power supply units W53/380 Power supply units |
SKU Code | 0 |
Specification data - Uninterruptible power supply (UPS) units
Classification data | |
Standards | To BS EN IEC 62040-1, BS EN IEC 62040-2, and BS EN IEC 62040-3. |
Mode of operation | Line-interactive. |
Configuration | Manufacturer guidanceInsert requirements. |
Efficiency | |
Overall (minimum) | |
Eco mode (minimum) | |
Input | |
Nominal voltage | Single-phase 230 V a.c. |
Voltage tolerance | +15%/-20%. |
Frequency | 50 or 60 Hz +/-0.5%. |
Power factor | Up to 0.9. |
Inverter output | |
Rated output apparent power | 0.75 kV·A. 1 kV·A. 1.5 kV·A. 2.2 kV·A. 3 kV·A. |
Nominal voltage | Single-phase 230 V a.c. Guidance for specification option: Adjustable to 200/ 208/ 220/ 230/ 240 V. |
Voltage waveform | Sinusoidal. |
Total harmonic distortion (THD) | < 3% with linear load. |
Nominal frequency | 50 or 60 Hz. |
Frequency tolerance | +/-0.5%. |
Batteries | |
Location | Within UPS equipment enclosure. Within UPS equipment enclosure, plus extended battery cabinet (RT 2U/3U models). |
Type | VRLA. |
Voltage | 12 V. |
Battery autonomy (stored energy time at rated power) | Up to 12 minutes. Guidance for specification option: Model dependent. Refer to manufacturer's literature and insert requirements. |
Battery recharge time | |
To 80% capacity | 6–7 hours to 90% capacity. |
Controls, indicators and alarms | |
Light emitting diode (LED) indication | Three-colored LED bar. Manufacturer guidanceGreen: Everything is OK on UPS. Load is protected. Orange: The load is supplied by UPS, but an alarm is active, a check is required. Red: The load is not supplied by UPS. Ongoing emergency. |
Communications and signalling | RS232, USB, SNMP slot, EPO, dry contacts. |
Enclosure | |
Ingress protection (minimum) | IP20. |
Material and construction | |
Colour | Black. |
Noise emission | |
Sound pressure level in normal mode (maximum) | < 55 dBA at 1 m. |
Properties | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 10%. |
Accessories | Not required. 2 Rack support bracket kit for 2U and 3U models. External manual by-pass. 10 A British Standard cable. Guidance for specification option: For models 3 112 60, 3 112 61, 3 112 62, 3 112 63, 3 112 64. 16 A British Standard cable. Guidance for specification option: For models 3 112 65, 3 112 66, 3 112 67, 3 112 68. |
Unit size | 1U. 2U. 3U. Manufacturer guidanceSize (number of units). Refer to manufacturer's literature for details. |
