PLXE Panel Heater Range
Verified by manufacturer 16 days ago
PLX050E
PLX050E
Modern and efficient electric panel heater.
Application
Suitable for domestic applications.
Description
The PLX050E is a Lot 20 compliant, modern and efficient electric panel heater. Features intuitive controls with multiple timers, natural white colour and louvered grille.
Features and benefits:
- Electronic time and temperature control ensures maximum comfort.
- Integral open-window detection system reduces waste heat.
- Electronic thermostat accurate to within 0.2°C.
- Smartphone app controllable via the Dimplex Control system.
- Slimline design that covers traditional panel heater fixing marks.
- Easy to install.
General information
Color | White |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Width | 450 mm 620 mm 690 mm 860 mm |
Height | 430 mm |
Warranty description | Two year |
Uniclass | |
CAWS | V90/590 Equipment V90/590 Equipment |
SKU Code | PLX050E, PLX075E, PLX100E, PLX125E, PLX150E, PLX200E, PLXX300E |
Specification data - Room heaters
Classification data | |
Third party certification | CE and BEAB. |
Room heaters type | Panel. |
Output | 0.50 kW. |
Finish | Epoxy polyester powder-coated, Traffic White (RAL 9016). |
Accessories | None. Dimplex Hub and Radio Frequency Module (RFM). Guidance for specification option: Required for this product to connect to the Dimplex Control system and be controlled via the Dimplex Control smartphone app. |
Controls | Digitally controlled, electronic thermostat. Guidance for specification option: Accurate to (±0.2°C). Setpoint range (7-30°C). Timer modes: 7 Day Programmable User Timer, Out All Day, Home All Day. Continuous heat modes: Eco, Manual, Frost Protect. Additional Modes: Away, Boost, Setback, Runback. |
Heating element | Compact, finned, mineral filled and sheathed. |
Safety features | Thermal cutout (auto reset type) and overheat detection. |
Ingress protection (IP) rating | IP24. |
Battery back-up | CR2032 Lithium manganese dioxide 3V coin cell battery. Guidance for specification option: To backup real time clock. Battery life >5 years. |
Supply | 1.3 m fitted, 3 core for fused spur installation, 1/N/PE-230–240V, 50 Hz Class I, with earth wire. |
Width | 450 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel |
BIM objects
This BIM object has been authored to meet the requirements of the
Find out more about the
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 1 |
Literature
PLXE Series B Spec Sheet
Similar products from Glen Dimplex Heating and Ventilation

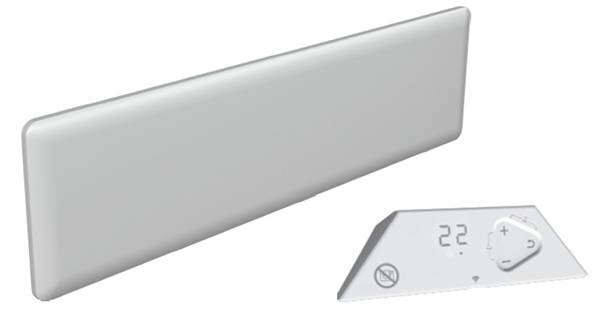

Alta

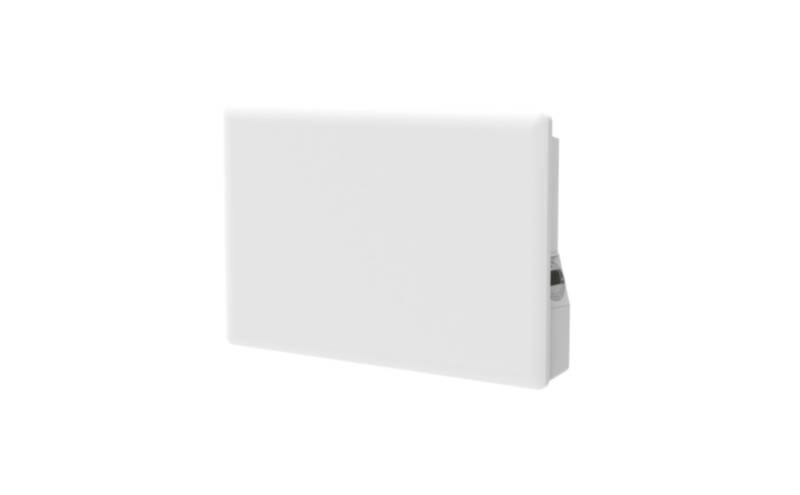

CPHT Compact Panel Heater

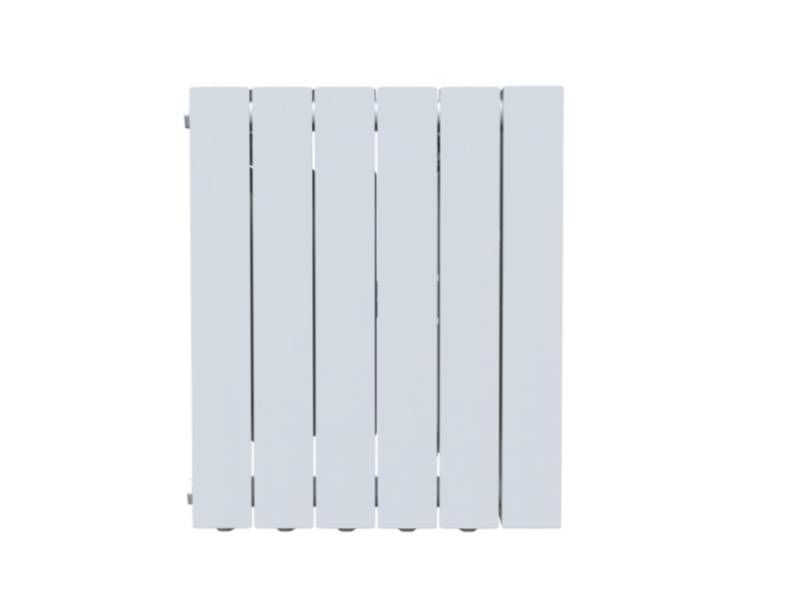

DAR Aluminium Radiator
FX20VE/ FX20EIPX4 Downflow Fan

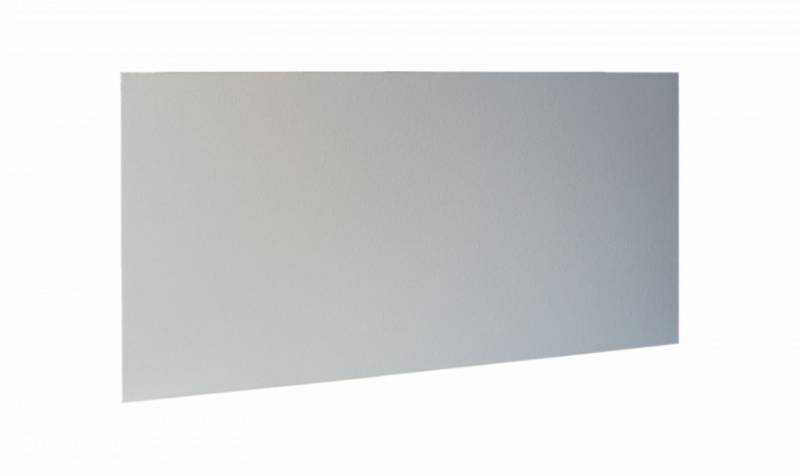

IRP Far-Infrared Panel Heaters
