Alta

Name: Alta
Brand: Glen Dimplex Heating and Ventilation
SKU: kDoNa7V89gwRMikHKfgCm

Verified by manufacturer 23 days ago

DTD2R 05

Glen Dimplex Heating and Ventilation

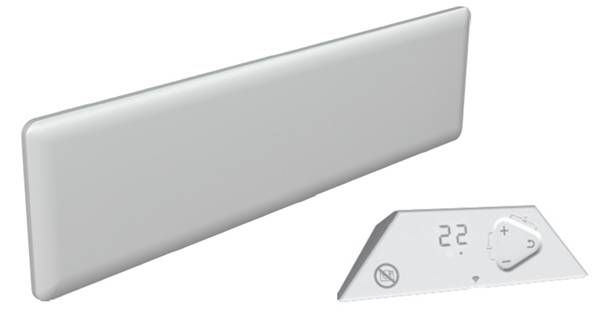

Electric panel heater.

Jump to:

Request BIM

+44 (0)344 8793587 Website

Application

For domestic or commercial buildings.

Description

Alta panels feature built-in Wi-Fi with direct connection to your network, allowing the panel to be controlled remotely. Also includes intuitive user controls and seven-day timer profiles (via APP).

Features and benefits:

Modern panel design with top outlet grille for optimum heat circulation.
Wi-Fi connected product.
Customisable heating time and temperature settings.
Smartphone app controllable via the CAPA Connect APP.
DTD2R panels: 20 cm height for use on low-profile walls.
DTD4R panels: 40 cm height.

General information

Color	White
Finish	Powder-coated
Material	Steel Aluminium
Shape	Rectangle
Length	90 mm
Width	525 mm 625 mm 725 mm 1025 mm 1125 mm 1325 mm 1525 mm Show more
Height	200 mm 400 mm
Warranty description	Two year

Uniclass	Pr_70_60_36_74 Room heatersPrimary
CAWS	V90/590 Equipment

SKU Code	DTD2R 05
GTIN/EAN	5011139085771

Specification data - Room heaters

Classification data
Product reference	Alta.
Third-party certification	CE, UKCA, BEAB.
Room heaters type	Panel.
Output	0.50 kW.
Finish	Epoxy polyester powder-coated, Traffic White (RAL 9016).
Accessories	Seven-day programmer.
Controls	Digitally controlled, electronic thermostat. Guidance for specification option: Accurate to ±0.2°C. Set-point range 7–30°C. Seven-day programmable user timer, which allows for seven periods per day. Modes: Normal (timer), Comfort, Eco, Away and Off.
Heating element	Convective aluminium.
Safety features	Thermal cutout (auto reset type).
Ingress protection (IP) rating	IP24.
Supply	~230–240 V 50 Hz, Class 2. Guidance for specification option: Without earth wire. Manufacturer guidance 1.3 metres fitted, two core for fused spur installation.
Width	725 mm.
