Playground Swings - Children's Playground Swing Range

Name: Playground Swings - Children's Playground Swing Range
Brand: Redlynch Leisure Installations Ltd
SKU: 5wi4cnj8xAfFM9WQwy8Qxw

Verified by manufacturer 1 month ago

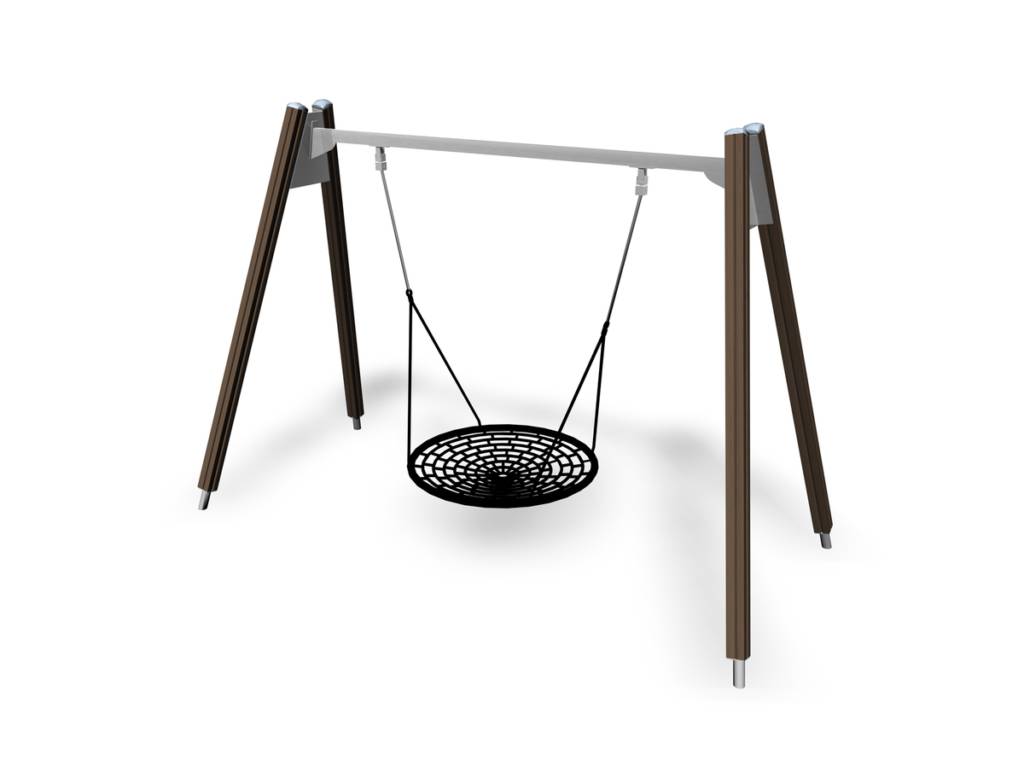

Basket swing

Third party certifications:

Range of children's playground swings for users age 1+. Choice of basket (aka bird's nest), traditional flat seat or cradle seat swings.

Jump to:

Application

Children's public playgrounds.

Age range: 1+ or 4+; suitable for children, youngsters, and adults.

Range of children's playground swings. Choice of basket (aka bird's nest), traditional flat seat or cradle seat swings.

Swinging stimulates the vestibular system located in the inner ear, which in turn develops motor coordination and balance.

Features and benefits:

Basket swing:

Cradle seat swing:

Flat seat swing:

All swings:

Color	Silver Other Grey Brown
Finish	Natural
Material	Steel Timber Other Guidance for specification option: Rope (steel-reinforced).
Shape	Other
Length	3790 mm 3910 mm
Width	1530 mm 1730 mm 1750 mm
Height	2300 mm 2670 mm 2700 mm
Warranty description	15 year

Uniclass	Pr_40_30_61_67 Play swingsPrimary
CAWS	Q52/440 Swinging equipment

Standards	To EN 1176-1 and EN 1176-2:2008.
Age range	1+.
Equipment type	1.
Height	2.67 m. Guidance for specification option: Overall. Suspension height: 2.45 m.
Frame	-
Style	Traditional.
Bays	One.
Materials	Glue-laminated, fine-grained timber and a steel beam.
Finish as delivered	-
Finish type	Stainless steel.
Colours	Grey (steel)/ brown (timber).
Seats	-
Type	Basket (bird's nest).
Number of swings	One. Guidance for specification option: Seats three users.
Materials	Rope, steel-reinforced.
Ground clearance	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.

Plan Size	3.91 x 1.73 m.
Post foundations	Deep mounting. Guidance for specification option: Consult manufacturer for detailed requirements.
Weight	184 kg. Guidance for specification option: Heaviest component: 56 kg.
Installation	Approx. 6 hours per structure.
Technical characteristics, other	Falling space area: 21.1 m². Falling space length: 8.1 m. Falling space width: 2.6 m. Maximum free fall height: 1.4 m. Largest part: 2.94 m.

Contains Red List materials	No
Country of material origin	Finland
Country of product manufacture	Finland
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	62.5 kg CO₂ eq/unit Self declared
Recyclability	All parts of this product are recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	10 %
